FN0399D001A IPS TFT LCD

P/N:FN0399D001A

Active Area(mm):39.18x94.032

Resolution:480x960

Viewing Angle:85/85/85/85

Luminance:350

Interface: RGB/SPI 40

OP ℃: -20~70

ST ℃: -30~80

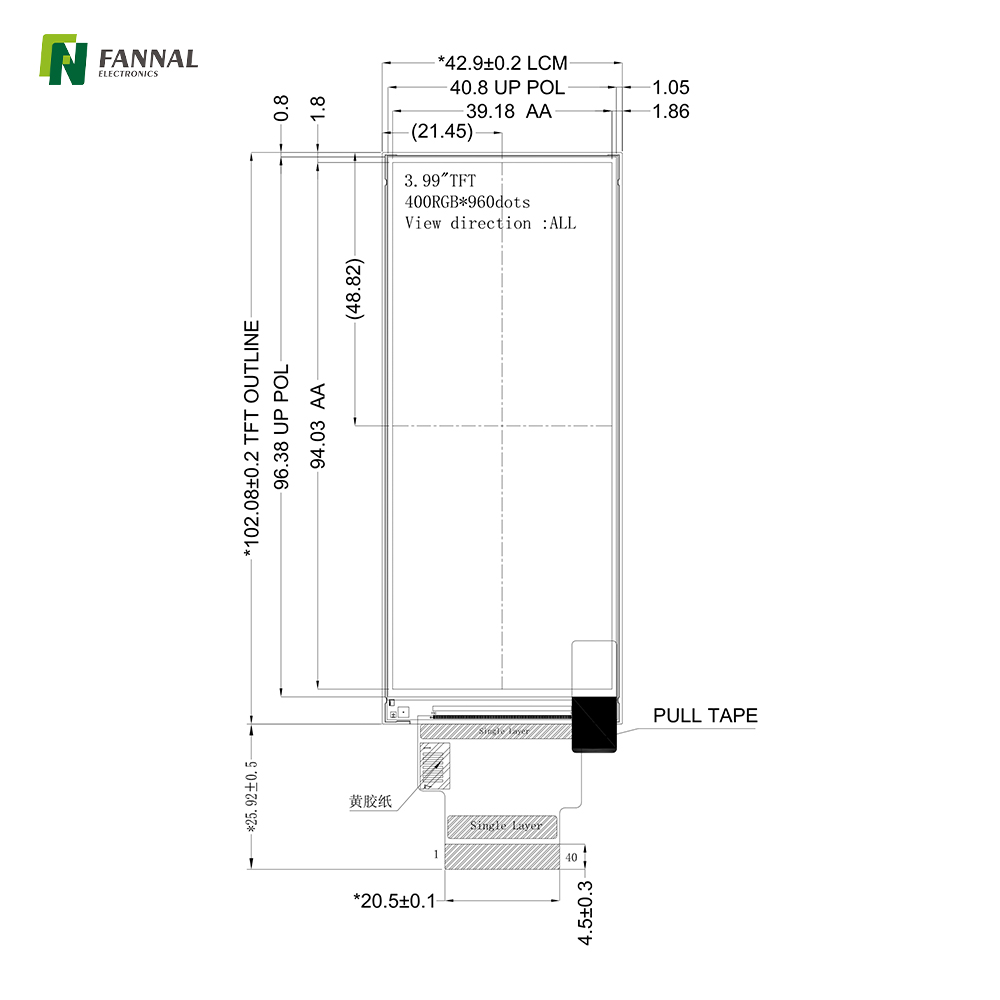

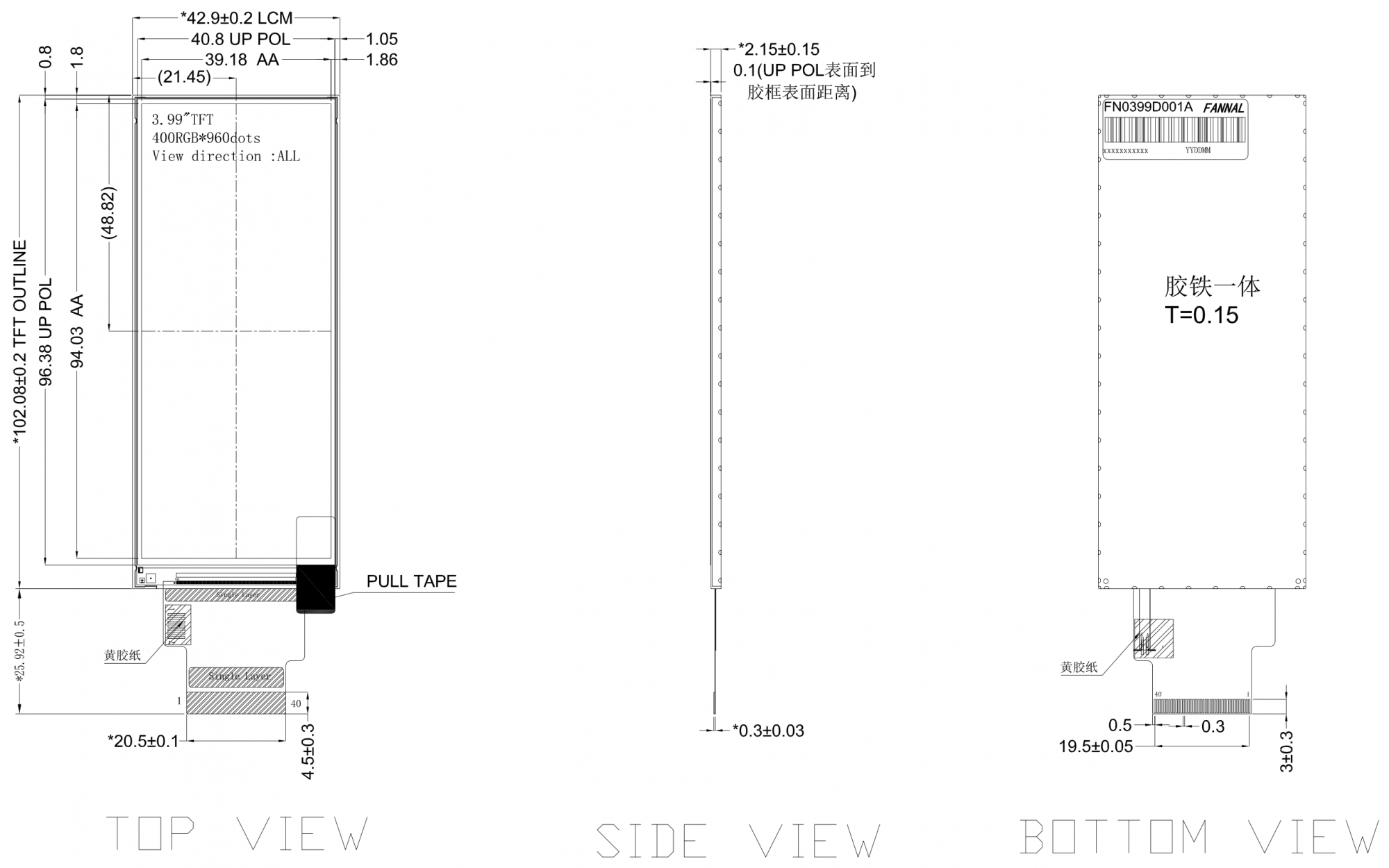

Specification drawing Specification

Product specification
Features :
IPS TFT Display


Add-Ons-CTP /AD Board

We can provide complete accessories, including CTP and backlight board, AD Board and wire sets.


Mechanical characteristics:
Item Description Unit
LCD Screen Size 3.99 inch
Active Area 39.18x94.032 mm
Resolution 480x960 mm
Viewing Angle(θT/θB/θL/θR) 85/85/85/85
Luminance 350  cd/m²
Interface RGB/SPI 40
TP module FN0399D001A
Outline Dimension 42.9x102.08x2.15  mm
