Cover Lens

Main Material: Glass, PMMA, PC
Glass is the most commonly used material
Normal thickness of different materials as below:
Glass: 0.55mm ~ 10.0mm
PMMA: 0.5mm ~ 3.0mm
PC: 0.1mm ~ 1.0mm
The Materials of the Cover Glass:
Clear Glass
Clear Glass
Clear glass is sodium calcium glass, mainly composed of silicon dioxide and sodium oxide. Its main manufacturers are from mainland and Japan, such as IRICO glass, CSG, CLFG, AGC, CG, NSG, NEG and so on, and widely used in the flat panel display industry. Our main supplier is AGC.
Ultra-white Glass
Ultra-white Glass
Aluminum silicon glass is belong to ultra-white glass, its ingredient are Al₂O₃ and SiO₂. Its main manufacturers are Corning, AGC Dragon Trail, domestic IRICO glass, panda glass, CSG and so on. Corning and Dragon Trail are always used in high-end applications.
Thickness Glass Thickness Tolerance Glass Material Suppliers Thickness of CG Strengthening Parameters
1.3 ±0.1 Gorilla USA Corning Chemical Strengthening CS≥550mpa,DOL≥35um.
0.55 ±0.05 Clear Glass CG or AGC Chemical Strengthening CS≥400mpa,DOL≥8um.
0.7 ±0.05 Clear Glass CG or AGC Chemical Strengthening CS≥400mpa,DOL≥8um.
0.95 ±0.1 Clear Glass CG or AGC Chemical Strengthening CS≥400mpa,DOL≥8um.
1.1 ±0.1 Clear Glass CG or AGC or NSG Chemical Strengthening CS≥400mpa,DOL≥8um.
1.3 ±0.1 Clear Glass CG or AGC or NSG Chemical Strengthening CS≥400mpa,DOL≥8um.
1.6 ±0.1 Clear Glass CG or AGC or NSG Chemical Strengthening CS≥400mpa,DOL≥8um.
1.8 ±0.1 Clear Glass CG or AGC or NSG Chemical Strengthening CS≥400mpa,DOL≥8um.
2.5 ±0.2 Clear Glass Domestic material Chemical Strengthening CS≥400mpa,DOL≥8um.
3 -0.3 Clear Glass CG or AGC Chemical Strengthening CS≥400mpa,DOL≥8um.
3 ±0.2 Clear Glass Domestic material Chemical Strengthening CS≥400mpa,DOL≥8um.
3.2 ±0.2 Clear Glass Domestic material Physical Total Strengthening Physical Total Strengthening
4 ±0.2 Clear Glass Domestic material Physical Total Strengthening Physical Total Strengthening
5 ±0.2 Clear Glass Domestic material Physical Total Strengthening Physical Total Strengthening
6 ±0.2 Clear Glass Domestic material Physical Total Strengthening Physical Total Strengthening
8 ±0.3 Clear Glass Domestic material Physical Total Strengthening Physical Total Strengthening
10 ±0.3 Clear Glass Domestic material Physical Total Strengthening Physical Total Strengthening

  • Irregular Shaped
  • Printing
  • Strengthen Technology

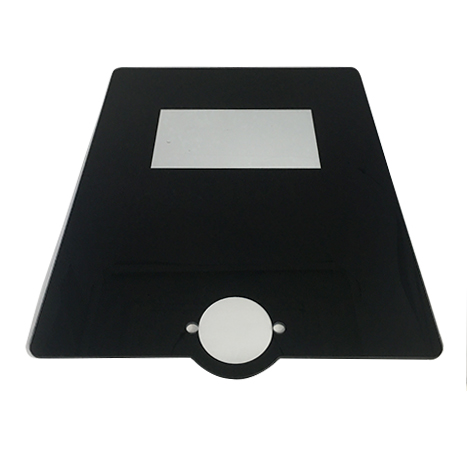

Irregular Shaped
CNC/Punching Edge Cutting
Printing
Silk Printing
Anti-UV Printing
Ceramic ink Printing
Strengthen Technology
Chemical Reinforcement
Physical Reinforcement

Surface Treatment

Anti Glare
AG - Anti-glare
EuropTec is our main AG glass supplier, and also available with other high quality etched AG glass according to customers’ detailed requirements. Gloss 70 is commonly used as its best effect of both anti-glare and vision.Customization service is always supportable.
Anti-reflection
AR - Anti-reflection
Features:
Cover lens transmittance: 94% ~ 99%
Cover lens reflectivity: 0.5% ~5%
Surface abrasion resistance performance: AR+AF, no.0 steel velvet 2kg force, rubbing 20,000 times
Salt spray test: 5% NaCl brine concentration, 48℃, test 480h
Production process: steam plating, splash plating, soaking
Anti-fingerprint
AF - Anti-fingerprint
AF coating can form hydrophobicity on the glass surface, to make the water droplets not easily scattered.
There are two methods to test AF effect:
Water drop contact angle test, require the angle between water-drop and solid surface should be bigger than 105°
Abrasive resistance test, general standard is no.0 steel wire ball, 750gf, rubbing 2000 times
Anti-Bacterial
AB - Anti-bacterial
Anti-bacterial glass can inhibit algae, micro bacteria, mildew, fungi and other harmful bacteria
It is the inherent property of glass and can permanently inhibit bacteria

Its core is special silver iron implantation technology, the silver irons are deep inside the glass surface and integrated with glass
Therefore the anti-bacterial properties are inherent and permanent properties
Another Cover Lens Material: PMMA
There are two main techniques for PMMA process:

-CNC process: making a certain cutting for different thickness branding PMMA, such as Mitsubishi

-Injection molding process: directly injection molding through different shapes of models
Thickness Thickness Tolerance Material Supplier Strengthening Method Intensified Strength Parameter
0.5 ±0.05 PMMA Shen Li The board itself is hardened Surface hardness: 750G: 3H
0.8 ±0.05 PMMA Shen Li The board itself is hardened Surface hardness: 750G: 3H
1.0 ±0.10 PMMA/PMMA+PC Shen Li/Mitsubishi/Jinkai RT300 The board itself is hardened Surface hardness: 750G: 3H
1.2 ±0.10 PMMA/PMMA+PC Mitsubishi/Jinkai RT300 The board itself is hardened Surface hardness: 750G: 3H
1.5 ±0.15 PMMA Mitsubishi The board itself is hardened Surface hardness: 750G: 3H
2.0 ±0.20 PMMA Mitsubishi The board itself is hardened Surface hardness: 750G: 3H
3.0 ±0.20 PMMA Mitsubishi The board itself is hardened Surface hardness: 750G: 3H
