Projected Capacitive Touch Panel

Structure: Glass/Glass, Glass/Film/Film
Size: 1.8” ~ 55”
Support Multi-touch Solution

We are the touch screen manufacturer
who can supply front-end technology development and back-end product upgrade

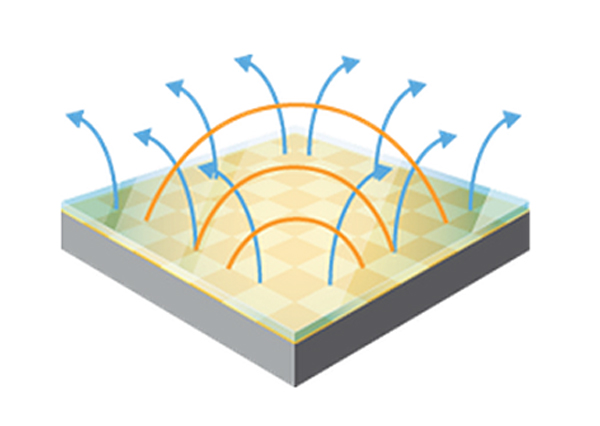

Touch screen is a rapidly developing technology which is oriented in the 1970s and aimed to bring directly HMI experience. Capacitive touch screen helps iPhone change the world.Its principle is by measuring capacitance changes of touch screen surfaces to determine the location of one or more fingers.Supporting complex gestures,full multi-touch function and making a sensitive reaction for slight touch.

Finger touch
Pen touch
Glove touch
Waterproof touch
All One Black

Finger touch

Auto-identify fingers,support up to 10 points touch.

Pen touch

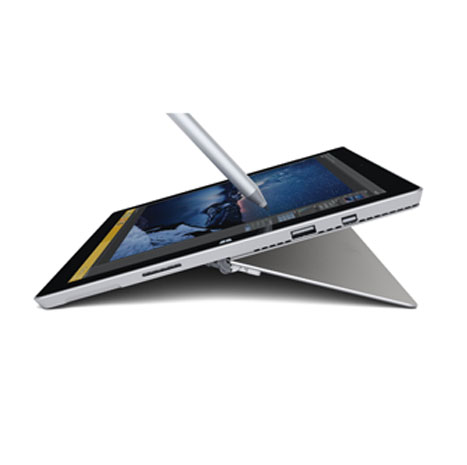

Support a passive stylus,can be identified bigger than 1mm pixel.Improving comfortableness and convenience,and more easy for complex commission.

Glove touch

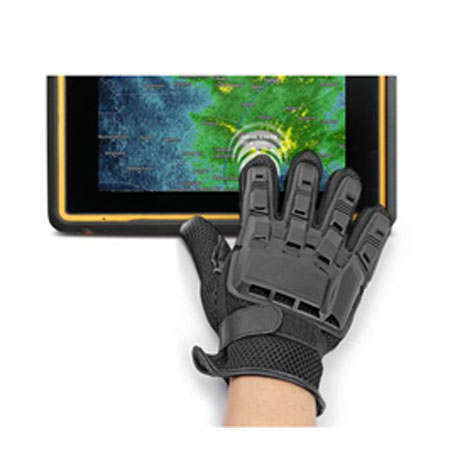

Supporting 5mm thickness glove single touch,1mm thickness glove multi-touch,and 2mm thickness glove two points touch plus gesture.

Waterproof touch

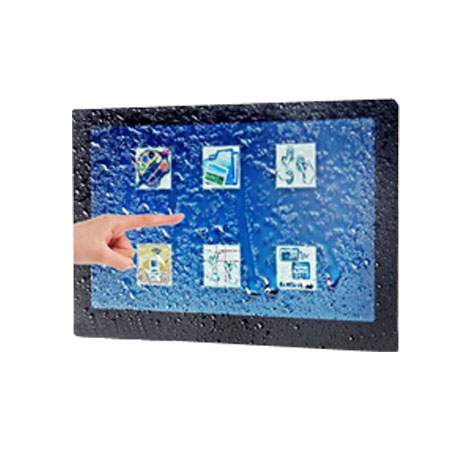

Accurately tracking wet fingers, Avoid water mistakenly touch the screen,and touch function wouldn’t make any difference under wet or frozen environment.

All One Black

Reducing cover lens light transmittance,when turn off the LCD,the surface will be full black.

Highly Noise-Resistant

● Hardware and firmware can be matched.Abide by EMI and RFI standard.

● High anti-noise ability,up to 60 vpp.Increase SNR,reduce phantom touches.

● Outside display synchronous can help weaken the noise from LCD.

● Can effectively prevent the interference of the noisy power supply.

Various Thickness Cover Lens

Glass cover lens thickness max 10mm, and PMMA cover lens thickness max 5mm

We can provide the most suitable cover lens solution based on customers’ special requirements and specific application.

5MM

PMMA

10MM

GLASS

IK code and impact energy
(values changed in Amd 1:1998)

IK code	IK00	IK01	IK02	IK03	IK04	IK05	IK06	IK07	IK08	IK09	IK10
Impact energy (joules)	*	0.15	0.2	0.35	0.5	0.7	1	2	5	10	20
Equivalent impact	No test	Drop of 200 g object from 7.5 cm height	Drop of 200 g object from 10 cm height	Drop of 200 g object from 17.5 cm height	Drop of 200 g object from 25 cm height	Drop of 200 g object from 35 cm height	Drop of 500 g object from 20 cm height	Drop of 500 g object from 40 cm height	Drop of 1.7 kg object from 29.5 cm height	Drop of 5 kg object from 20 cm height	Drop of 5 kg object from 40 cm height

Supportable IC Models

The debugging is another core technology of touch screen,Fannal supply the best resources and constantly train software engineers to master their properties.In order to supply the best technical supports when customers needs.That’s the reason why we more professional than competitor.Please see below our regular supportable IC models:

IC	Size Support	Interface	Lifetime	Application	Waterproof	Gloves	Thickness of cover lens	Remarks
CYPRESS	≤10.1"	IIC	>5 years	Automobile or Industrial	A large pool of water	≤5mm gloves	≤8mm glass,≤4mm PMMA	Complex application products, support passive pens, EMC testing:RS 30V/m,CS 6-10Vrms;Fannal has the ability to debug and assist customers in application independently
Microchip	≤32"	IIC/USB	>5 years	Automobile or Industrial	Water mist	≤5mm gloves	≤8mm glass,≤4mm PMMA	Complex application products, support passive pens,EMC test: RS 30V/m,CS 6-10vrms; Fannal has the ability to debug and assist customers in application independently
EETI	≤55"	IIC/USB/UART	>5 years	Industrial	A large pool of water	≤5mm(single touch)	<10mm glass,≤5mm PMMA	Support active and passive pens, driving voltage 12V,RS 30V/m,CS 6-10Vrms,Fannal has a good cooperation with the original IC factory,the corresponding debugging and technical support response is fast
ILITEK	≤55"	USB/IIC/RS232/UART etc	>3 years	Industrial or Consumer	Water mist	≤5mm gloves	≤10mm glass,≤5mm PMMA	Medium and large size product applications, EMC testing:RS 30V/m,CS 6-10Vrms;Fannal has the ability to debug and assist customers in application independently
Goodix	≤13.3"	IIC	1-2 years	Consumer	Not waterproof	<1mm latex Gloves	≤2mm glass,≤1.2mmPMMA	For routine product applications,Fannal has the ability to debug and assist customers in application independently
FocalTech	≤13.3"	IIC	1-2 years	Consumer	Water mist	<1mm latex gloves	≤2mm glass,≤1.2mmPMMA	For routine product applications, Fannal has the ability to debug and assist customers in application independently

Extreme Low Power Consumption

Normal Operating Mode:

48mW

Low Power
Consumption Mode:

12mW

Deep Sleeping Mode:

15uW
