6.2-inch Industrial TFT LCD,800x480,550cd/m2,60PIN RGB

FN0620D001A TFT LCD

P/N:FN0620D001A

Active Area(mm):137.4x77.28

Resolution:800x480

Viewing Angle:75/75/60/70

Luminance:550

Interface: RGB

OP ℃: -20~70

ST ℃: -30~80

Specification Download

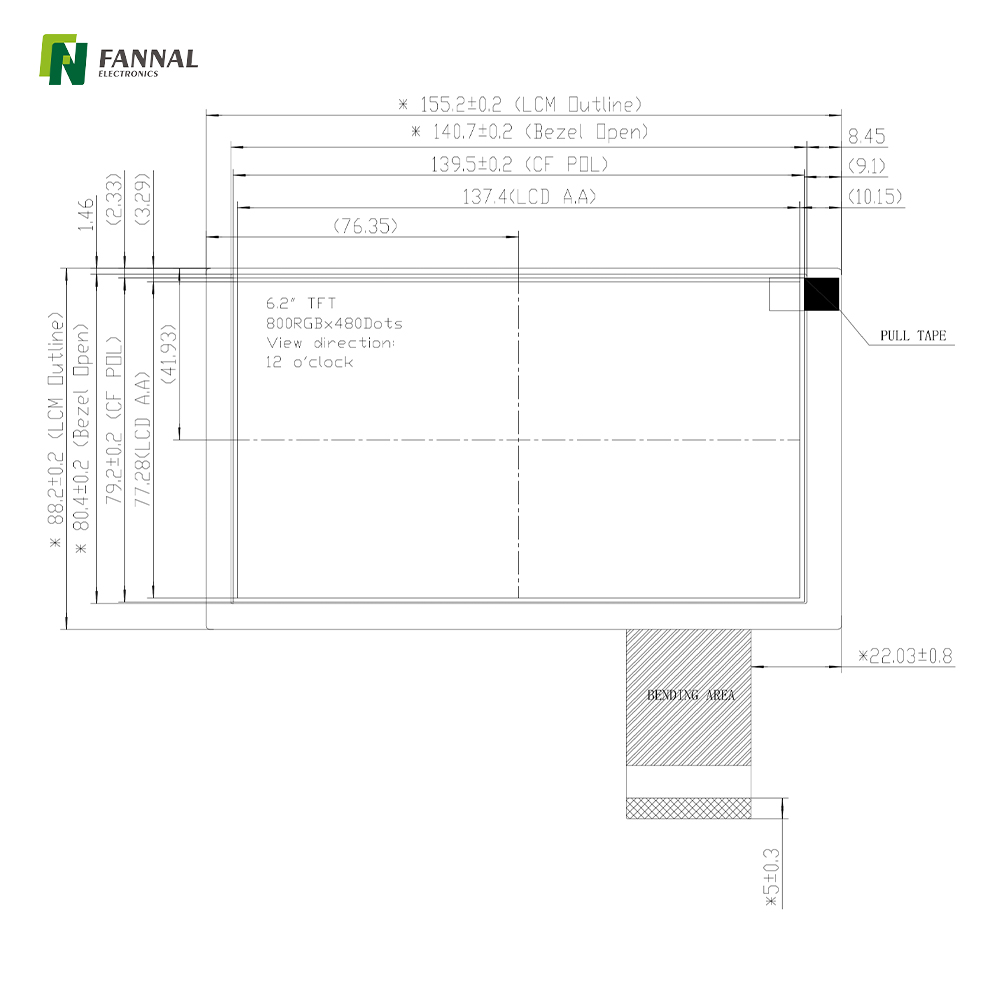

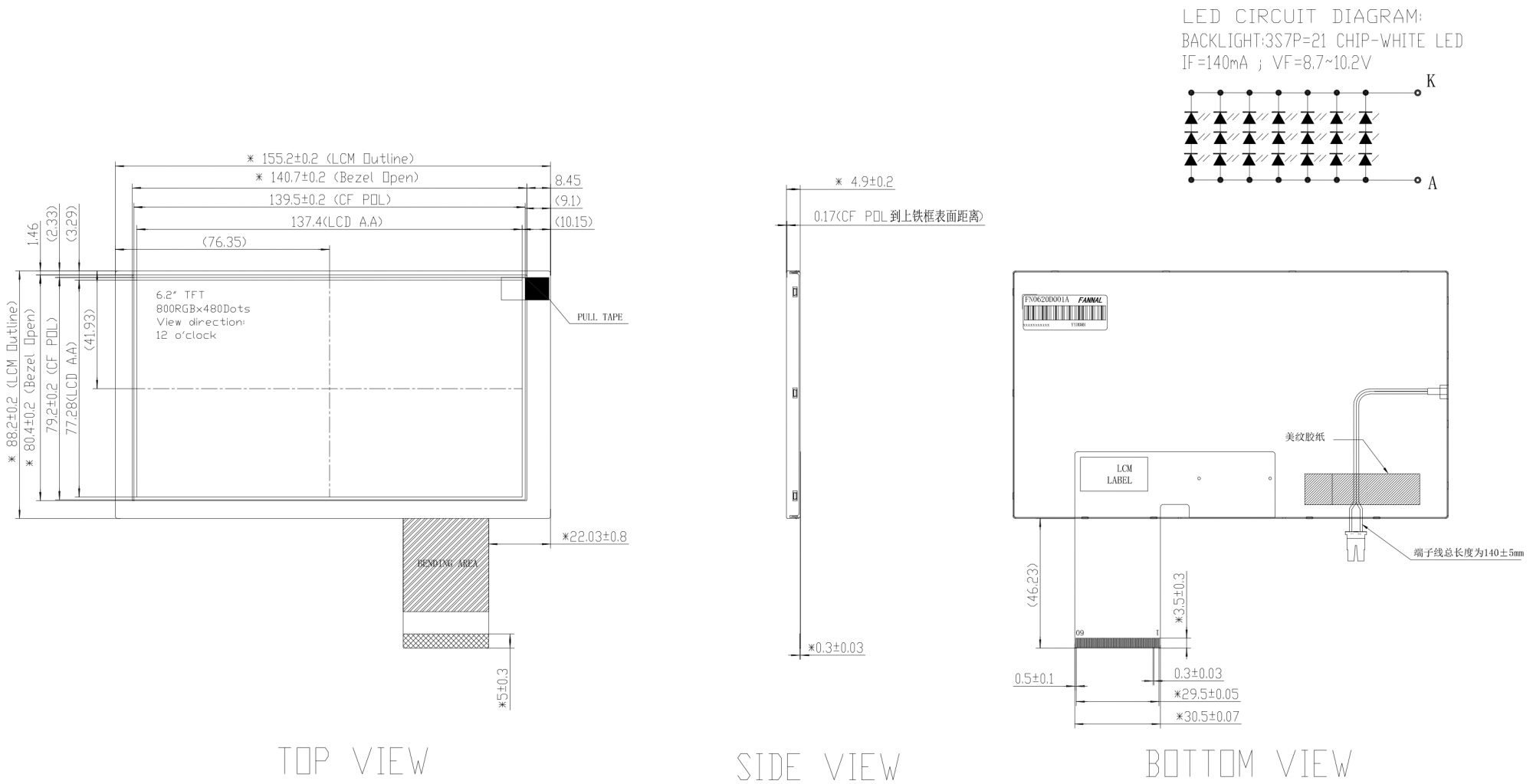

Specification drawing Specification

Product specification

Features :

TFT Display

Add-Ons-CTP /AD Board

We can provide complete accessories, including CTP and backlight board, AD Board and wire sets.

Mechanical characteristics:

Item	Description	Unit
LCD Screen Size	6.2	inch
Active Area	137.4x77.28	mm
Resolution	800x480	mm
Viewing Angle(θT/θB/θL/θR)	75/75/60/70
Luminance	550	cd/m²
Interface	RGB 60
TP module	FN0620D001A
Outline Dimension	155.2x88.2x4.9	mm
