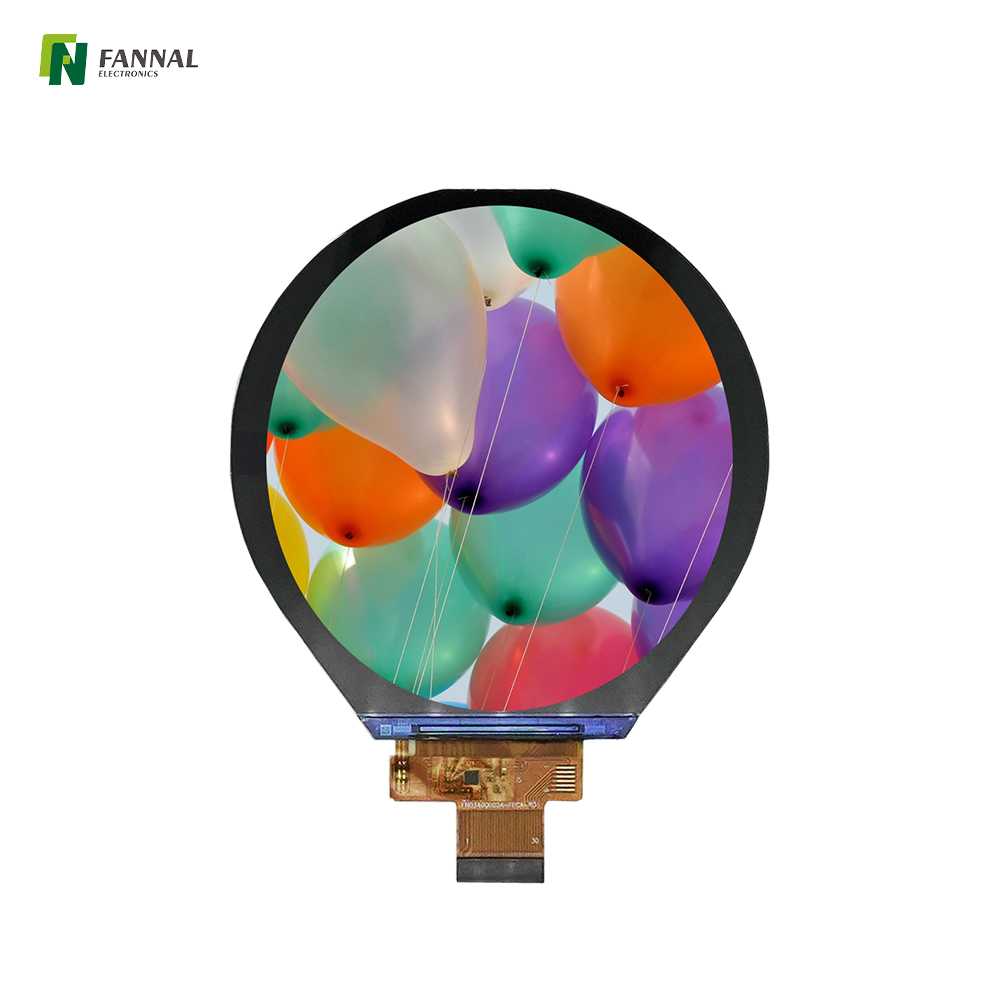

FN0340D002A IPS TFT LCD

P/N:FN0340D002A

Active Area(mm):87.6x87.6

Resolution: 800x800

Viewing Angle:85/85/85/85

Luminance: 350

Interface: MIPI 30

OP ℃: -20~70

ST ℃: -30~80

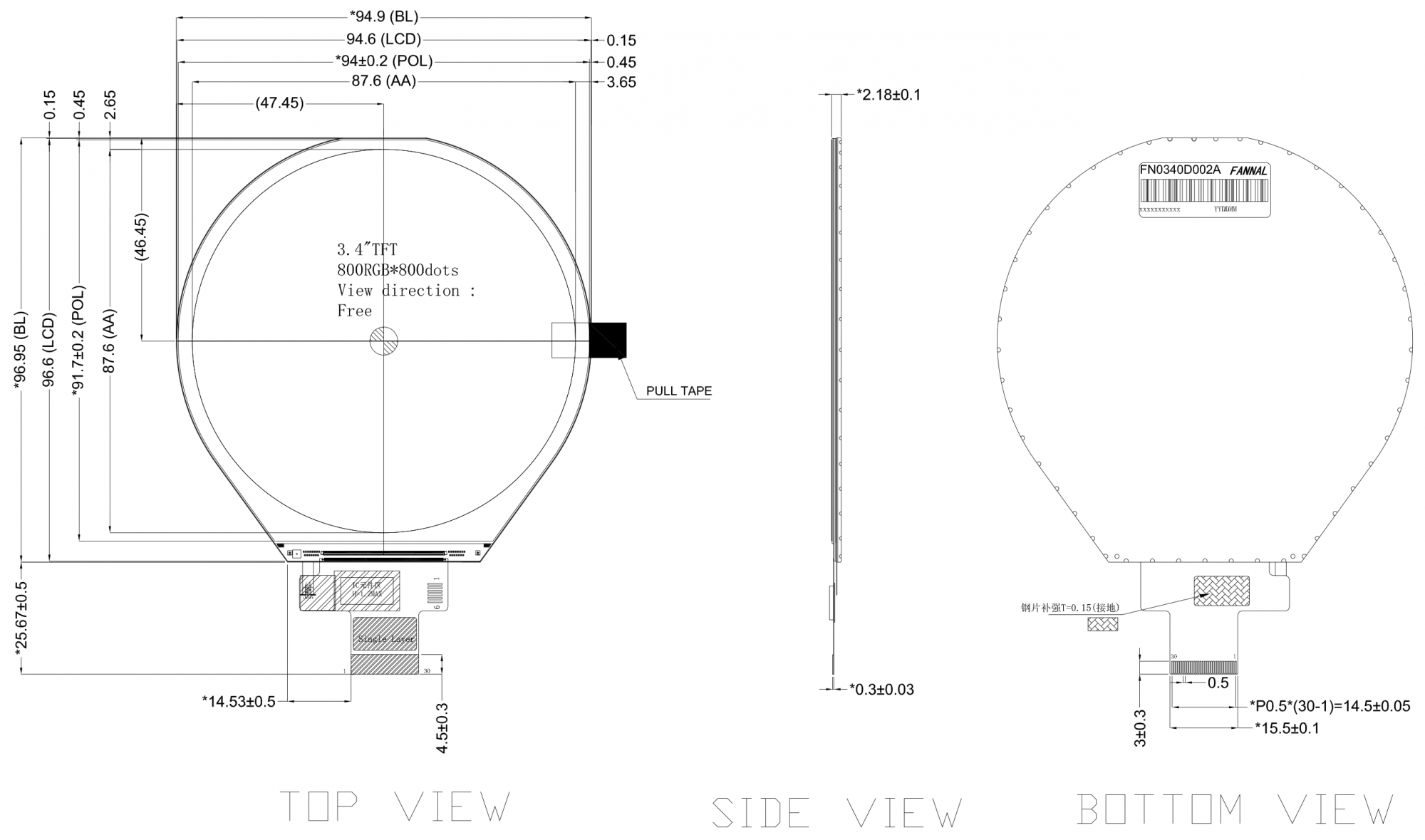

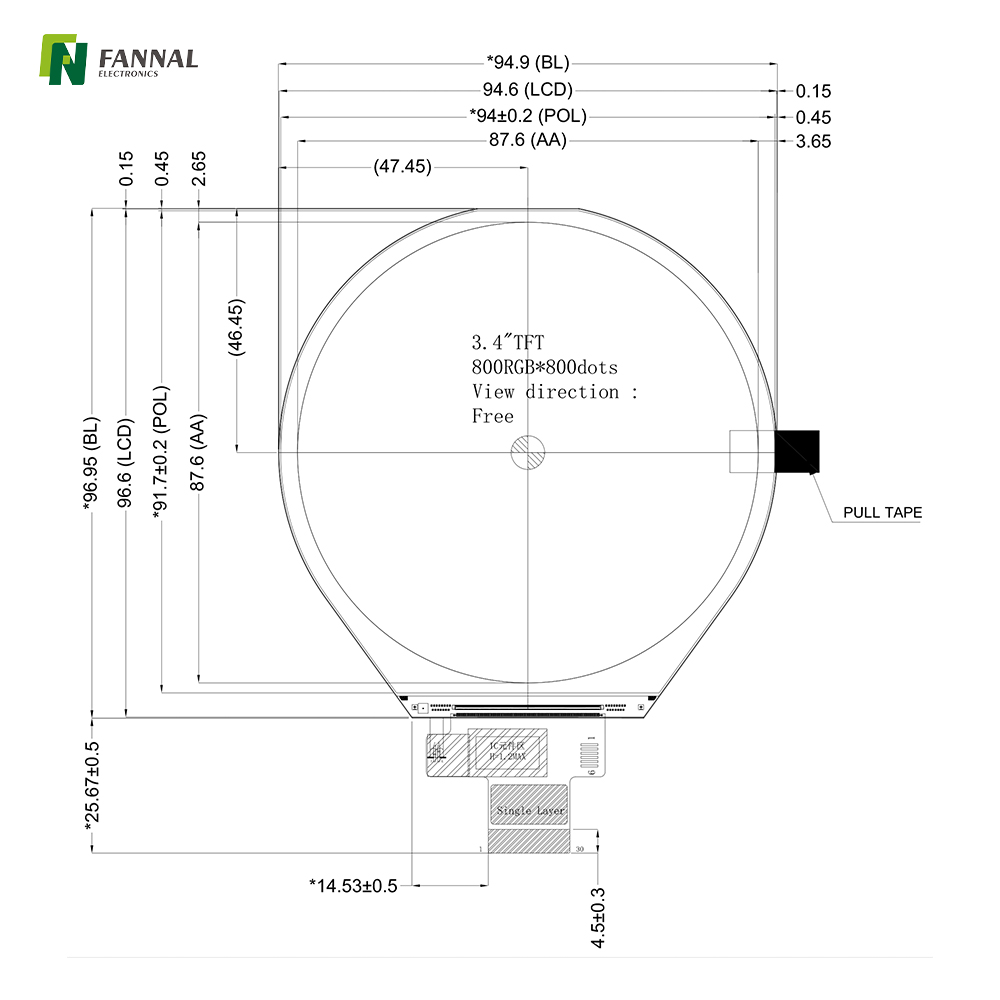

Specification drawing Specification

Product specification
Features :
IPS TFT Display


Add-Ons-CTP /AD Board

We can provide complete accessories, including CTP and backlight board, AD Board and wire sets.


Mechanical characteristics:
Item Description Unit
LCD Screen Size 3.4 inch
Active Area 87.6x87.6 mm
Resolution 800x800 mm
Viewing Angle(θT/θB/θL/θR) 85/85/85/85
Luminance 350  cd/m²
Interface MIPI 30
TP module FN0340D002A
Outline Dimension 94.9x96.95x2.18  mm
