FN0700D043A TFT LCD

P/N:FN0700D043A

Active Area(mm):154.08x85.92

Resolution:800x480

Viewing Angle:70/70/60/70

Luminance:450

Interface:RGB

OP ℃:-20~70

ST ℃: -30~80

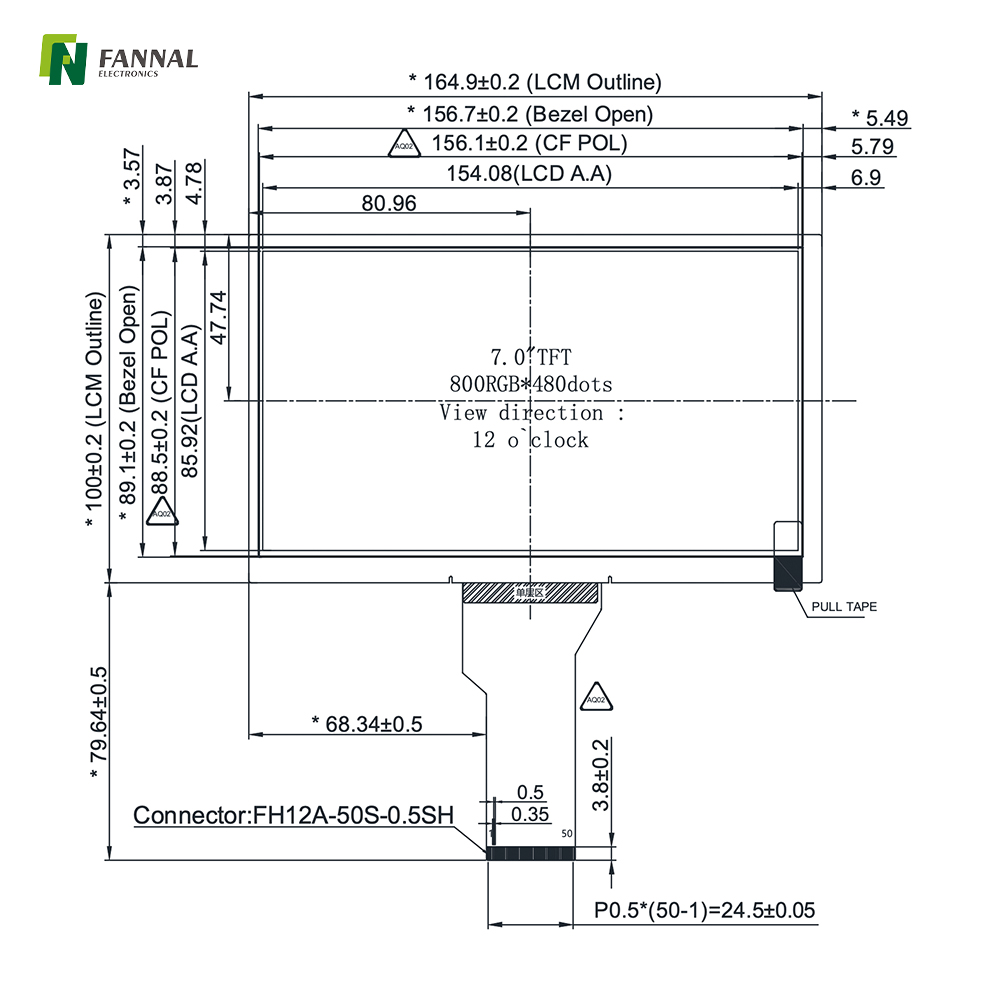

Specification drawing Specification

Product specification
Features :
TFT Display


Add-Ons-CTP /AD Board

We can provide complete accessories, including CTP and backlight board, AD Board and wire sets.


Mechanical characteristics:
Item Description Unit
LCD Screen Size 7.0 inch
Active Area 154.08x85.92 mm
Resolution 800x480 mm
Viewing Angle(θT/θB/θL/θR) 70/70/60/70
Luminance 450  cd/m²
Interface RGB
TP module FN0700D043A
Outline Dimension 164.9x100x5.75  mm
