FN0280D008A IPS TFT LCD

P/N:FN0280D008A

Active Area(mm):43.2x57.6

Resolution: 240x320

Viewing Angle:80/80/80/80

Luminance: 450

Interface: R&M&S

OP ℃: -20~70

ST ℃: -30~80

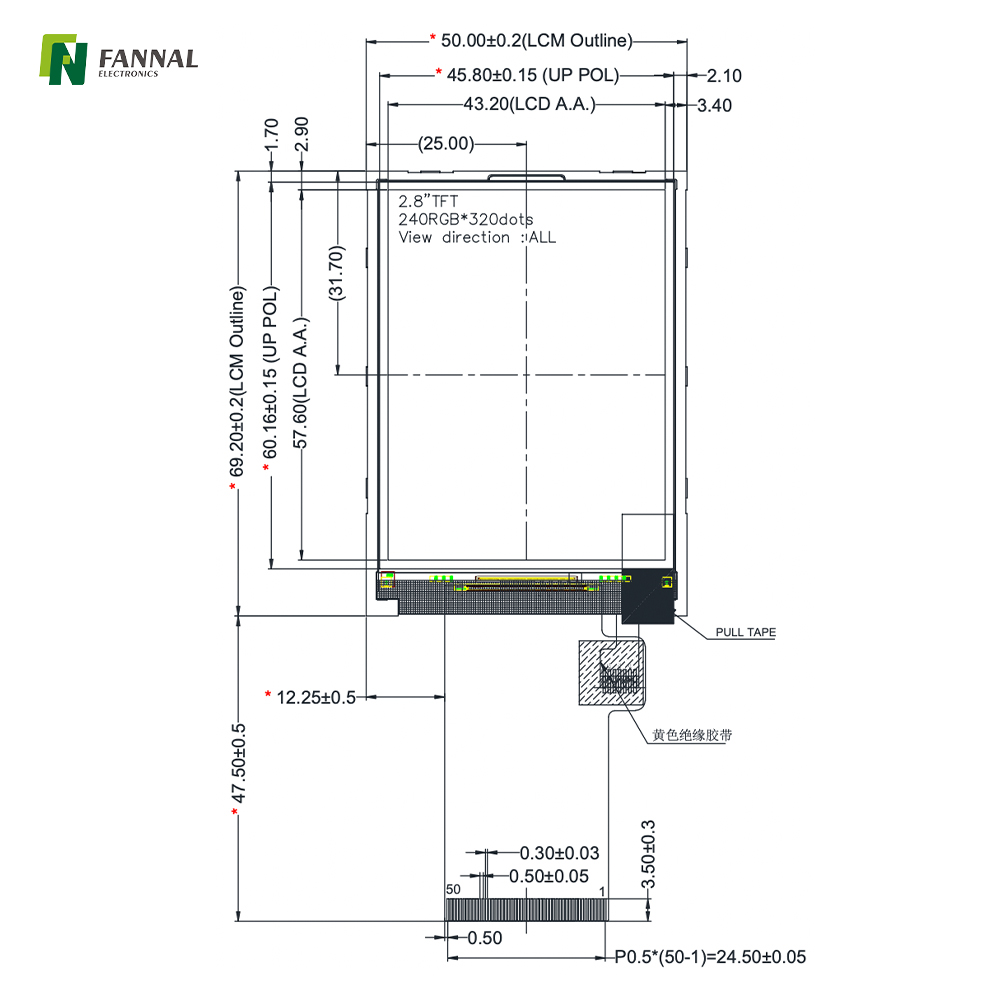

Specification drawing Specification

Product specification
Features :
IPS TFT Display


Add-Ons-CTP /AD Board

We can provide complete accessories, including CTP and backlight board, AD Board and wire sets.


Mechanical characteristics:
Item Description Unit
LCD Screen Size 2.8 inch
Active Area 43.2x57.6 mm
Resolution 240x320 mm
Viewing Angle(θT/θB/θL/θR) 80/80/80/80
Luminance 450  cd/m²
Interface R&M&S
TP module FN0280D008A
Outline Dimension 50.0x69.2x2.25  mm
