2.4-inch Industrial TFT LCD,240x320, High Brightness ,350cd/m2, MCU&SPI

FN0240D008A IPS TFT LCD

P/N:FN0240D008A

Active Area(mm):36.72x48.96

Resolution: 240x320

Viewing Angle:80/80/80/80

Luminance: 350

Interface: MCU&SPI

OP ℃: -20~70

ST ℃: -30~80

Specification Download

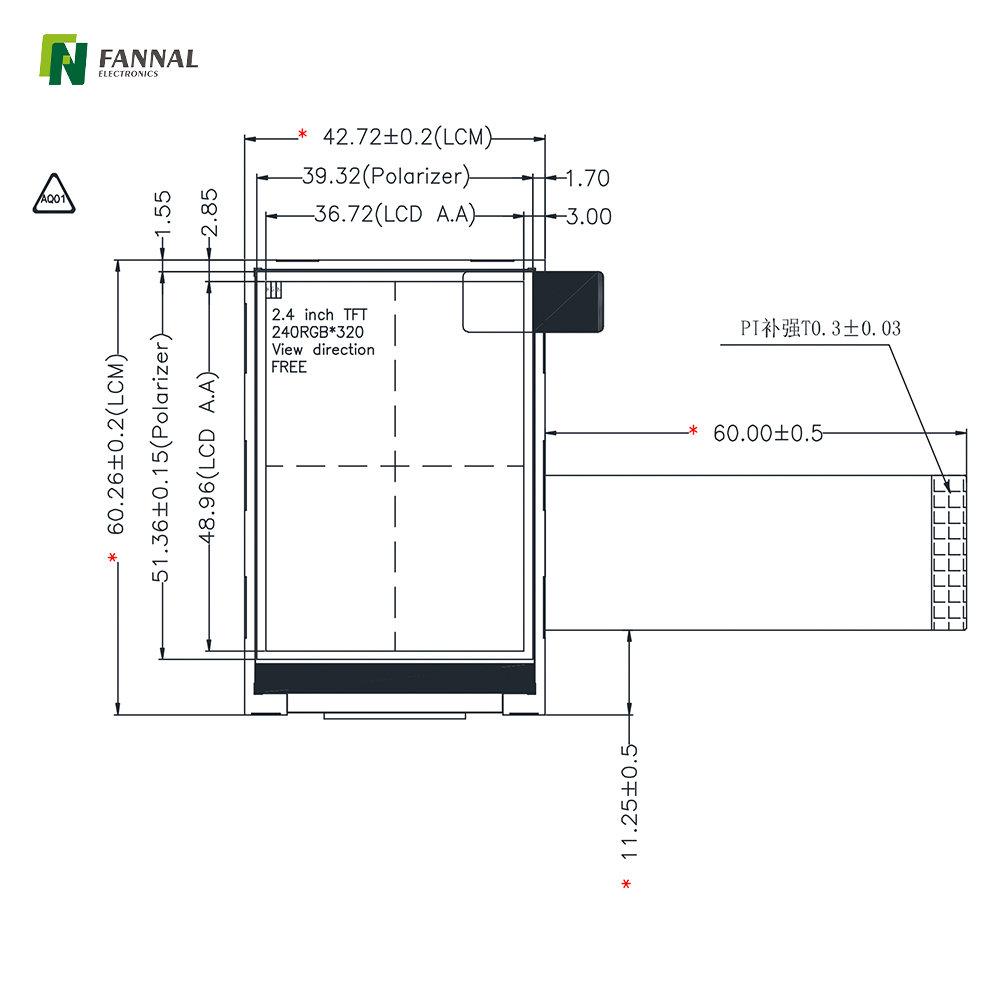

Specification drawing Specification

Product specification

Features :

IPS TFT Display

Add-Ons-CTP /AD Board

We can provide complete accessories, including CTP and backlight board, AD Board and wire sets.

Mechanical characteristics:

Item	Description	Unit
LCD Screen Size	2.4	inch
Active Area	36.72x48.96	mm
Resolution	240x320	mm
Viewing Angle(θT/θB/θL/θR)	80/80/80/80
Luminance	350	cd/m²
Interface	MCU&SPI
TP module	FN0240D008A
Outline Dimension	42.72x60.26x2.3	mm
