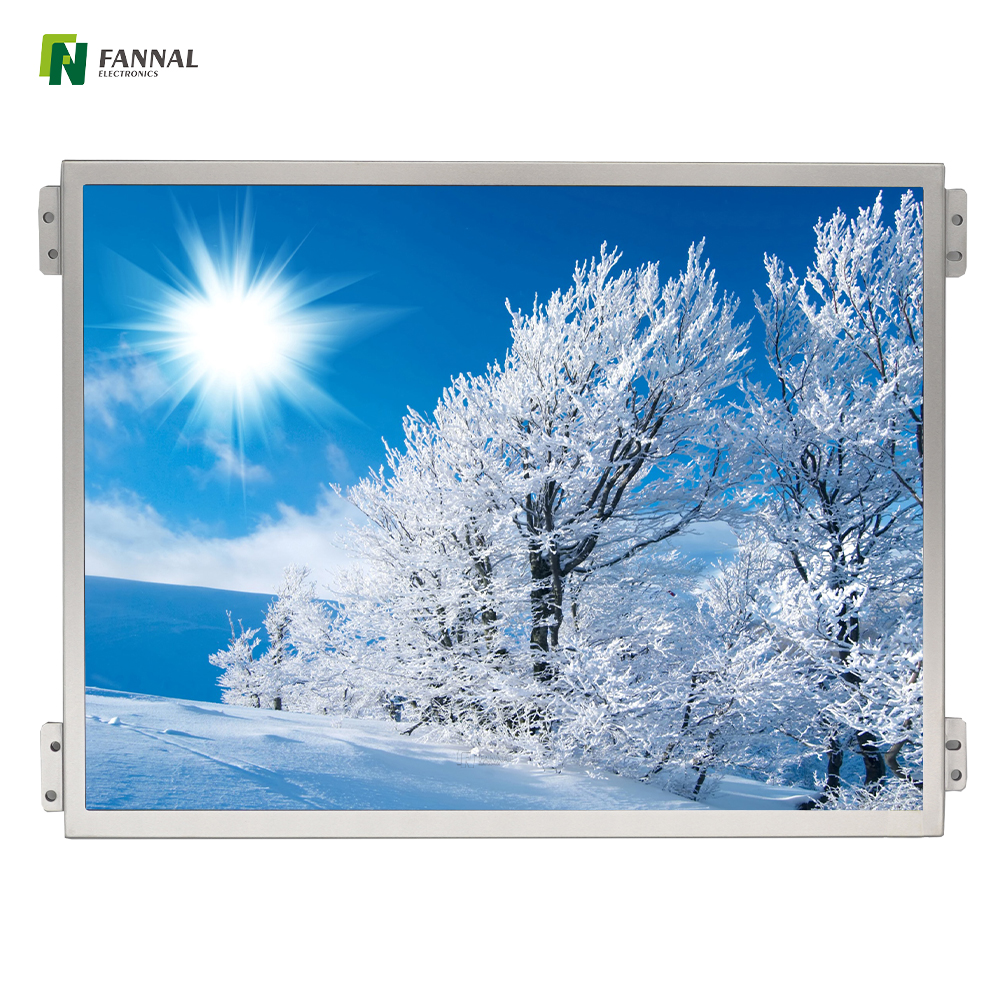

FN1040D002A wide temp


Active Area(mm):210.43x157.82

Resolution: 1024x768

Viewing Angle:80/80/80/80

Luminance: 700

Interface: LVDS

OP ℃: -30~80

ST ℃: -30~80

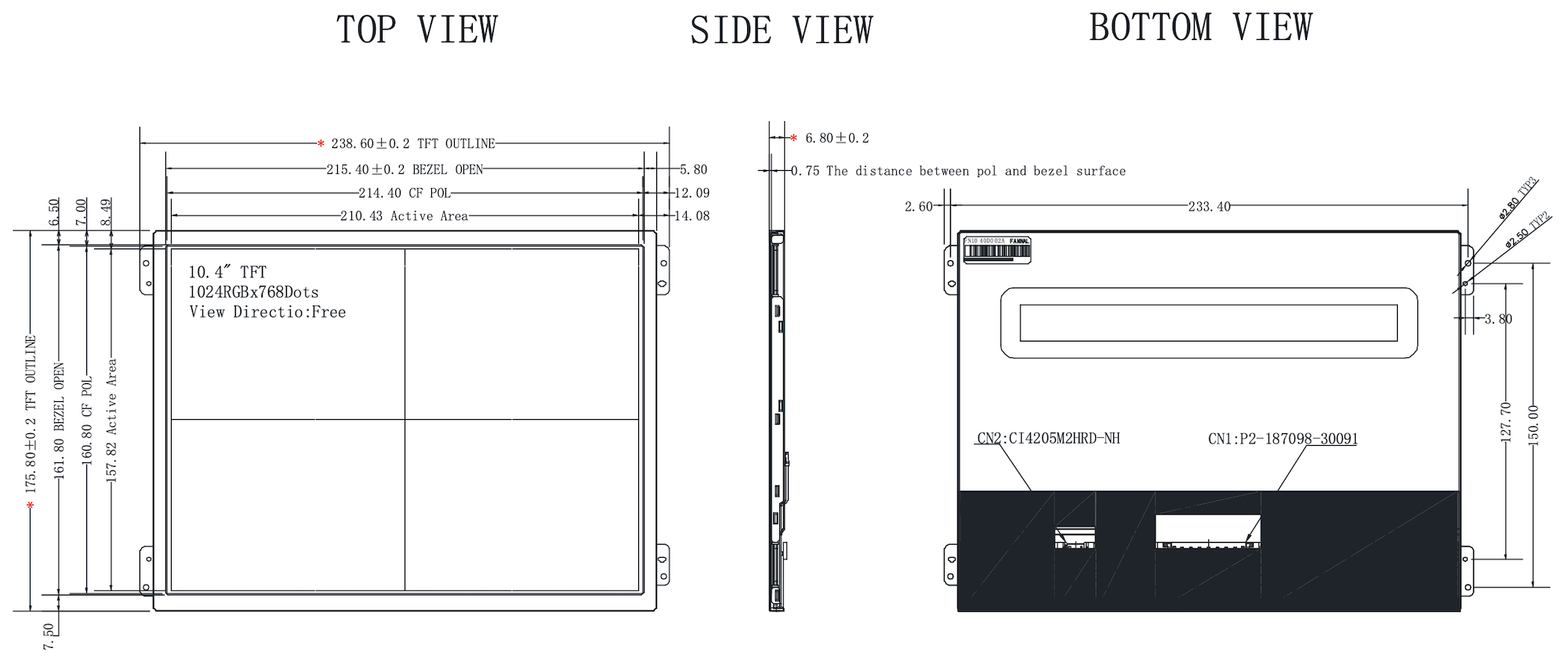

Specification drawing Specification

Product specification
Features :
Wide temperature TFT display

Add-Ons-CTP /AD Board

We can provide complete accessories, including CTP and backlight board, AD Board and wire sets.

Mechanical characteristics:
Item Description Unit
LCD Screen Size 10.4 inch
Active Area 210.43x157.82 mm
Resolution 1024x768 mm
Viewing Angle(θT/θB/θL/θR) 80/80/80/80
Luminance 700  cd/m²
Interface LVDS
TP module FN1040D002A
Outline Dimension 238.6x175.8x6.8  mm
