FN1010D032A wide temp high brightness

P/N:FN1010D032A

Active Area(mm): 216.96x135.6

Resolution: 1280x800

Viewing Angle: 80/80/80/80

Luminance: 1000

Interface: LVDS

OP ℃: -30~80

ST ℃: -30~80

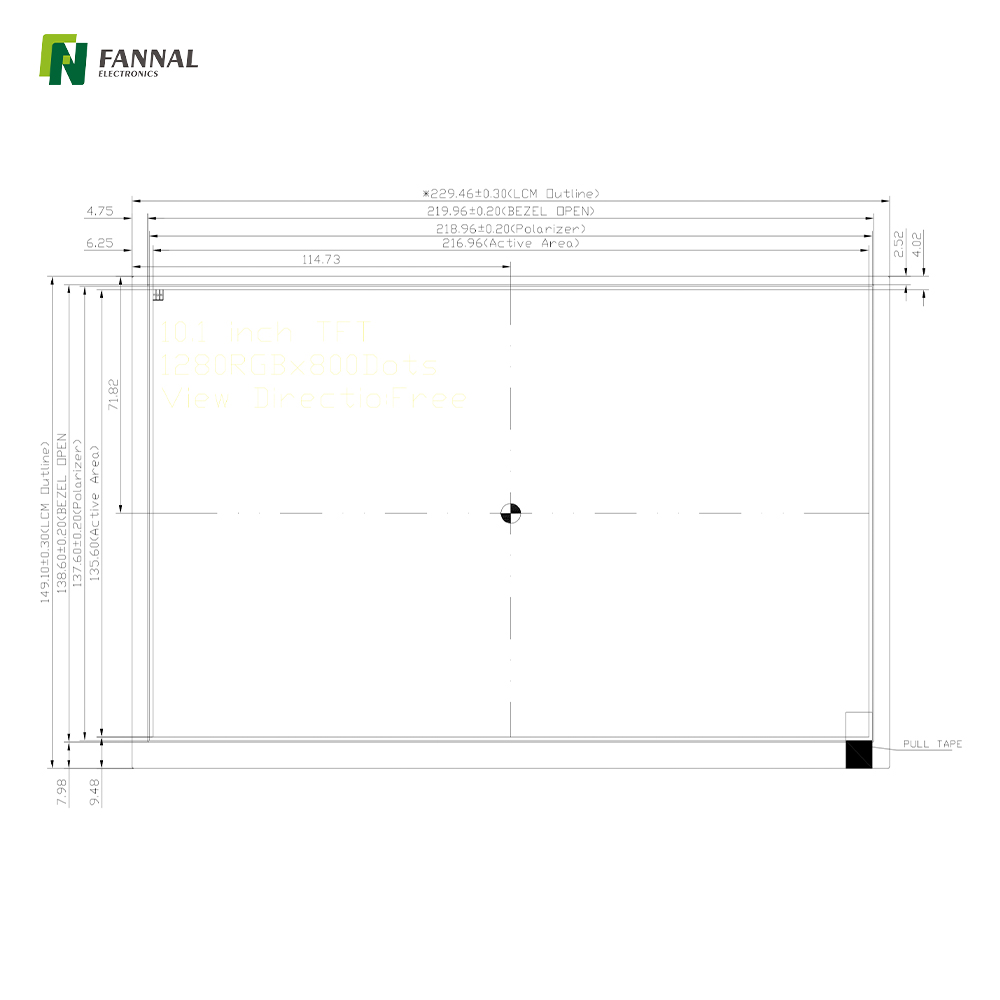

Specification drawing Specification

Product specification
Features :
Wide temperature and High brightness TFT display



Add-Ons-CTP /AD Board

We can provide complete accessories, including CTP and backlight board, AD Board and wire sets.


Mechanical characteristics:
Item Description Unit
LCD Screen Size 10.1 inch
Active Area 216.96x135.6 mm
Resolution 1280x800 mm
Viewing Angle(θT/θB/θL/θR) 80/80/80/80
Luminance 1000  cd/m²
Interface LVDS
TP module FN1010D032A
Outline Dimension 229.46x149.1x4.75  mm
