FN0500D036A high brightness

P/N: FN0500D036A

Active Area(mm): 108.0x64.8

Resolution: 800x480

Viewing Angle: 80/80/80/80

Luminance: 1000

Interface: RGB

OP ℃: -20~70

ST ℃: -30~80

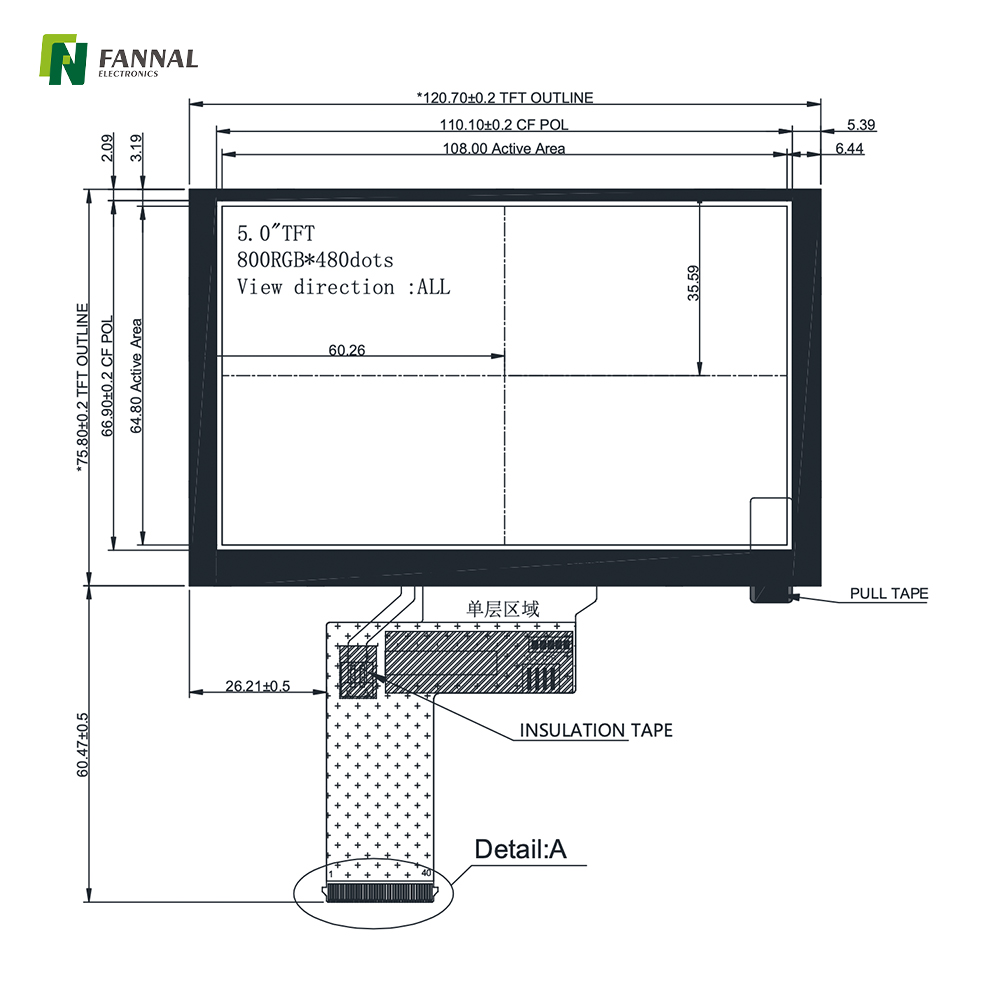

Specification drawing Specification

Product specification
Features :
Sunlight readable TFT display

Add-Ons-CTP /AD Board

We can provide complete accessories, including CTP and backlight board, AD Board and wire sets.

Mechanical characteristics:
Item Description Unit
LCD Screen Size 5 inch
Active Area 108.0x64.8 mm
Resolution 800x480 mm
Viewing Angle(θT/θB/θL/θR) 80/80/80/80
Luminance 1000  cd/m²
Interface RGB
TP module FN0500D036A
 Outline Dimension 120.7x75.8x2.73  mm
