7.0 inch Projected Capacitive Touch Display


Structure: G+G

TP VA (mm): 86.72*155.01

Outline (mm): 132.80*181.80

Sensor OD(mm): 100*167.35

OP (℃): -20-70

ST(℃): -30-80

Interface: IIC

CTP IC: Microchip

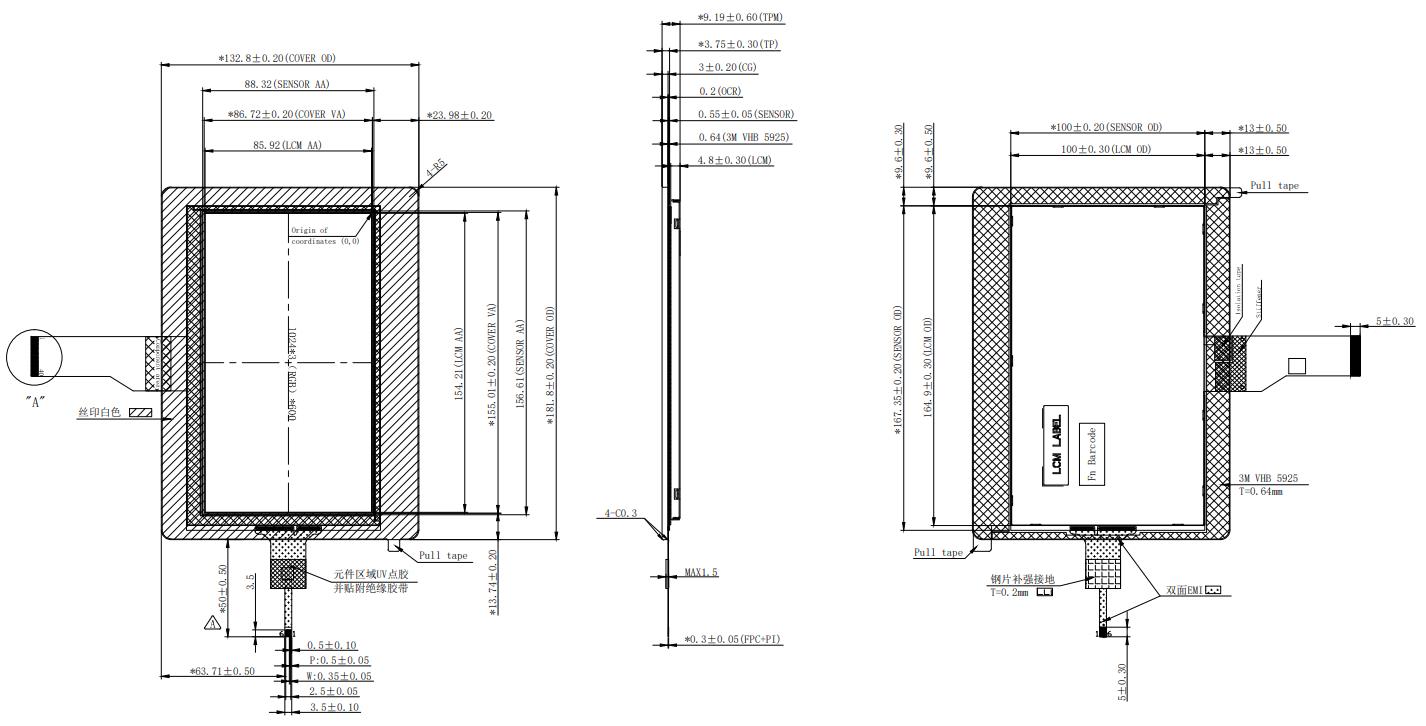

Specification drawing Specification
7.0 inch capacitive touch display
Product specification
Structure Materials Remark
Cover Glass Chemical strengthened glass Thickness: 3.0 mm±0.05mm
Optical clear adhesive OCR Thickness: 0.175mm±0.05mm
ITO Glass ITO Glass Double side ITO glass; Thickness:0.55mm±0.05mm
Mechanical characteristics:
Item Description Unit
Touch Module Size 7.0 inch
Outer Dimension 132.80*181.80 mm
View Area 86.72*155.01 mm
Sensor Area 100*167.35 mm
Cover Thickness 0.7 mm
Number of Touch 5
Interface I2C
Controller Microchip
