9-inch Industrial TFT LCD,1024x600,400cd/m2,30PIN MIPI

FN0900D002A TFT LCD

P/N:FN0900D002A

Active Area(mm):196.61x114.15

Resolution:1024x600

Viewing Angle:70/70/70/70

Luminance:400

Interface:MIPI

OP ℃: -20~70

ST ℃: -30~80

Specification Download

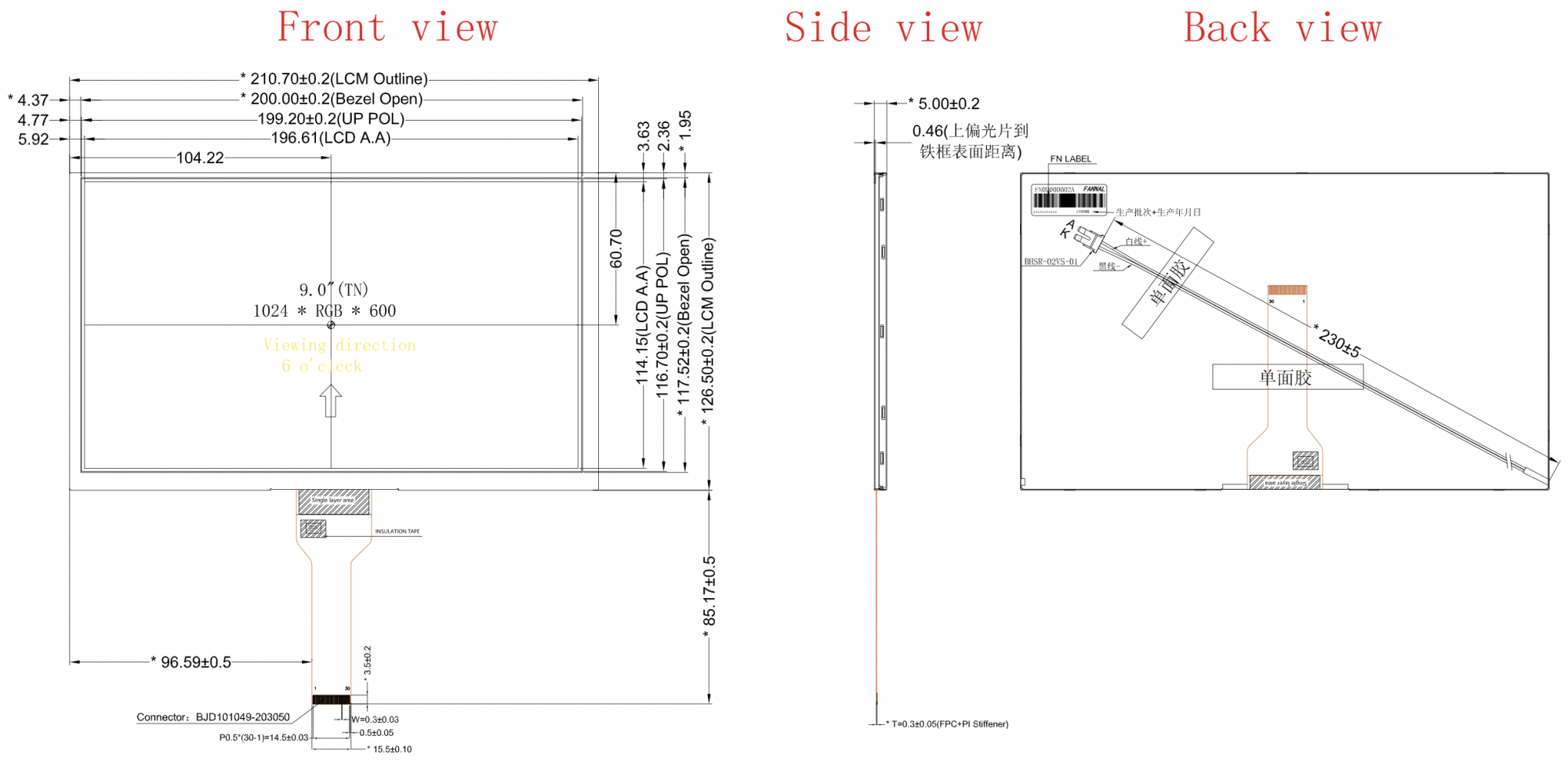

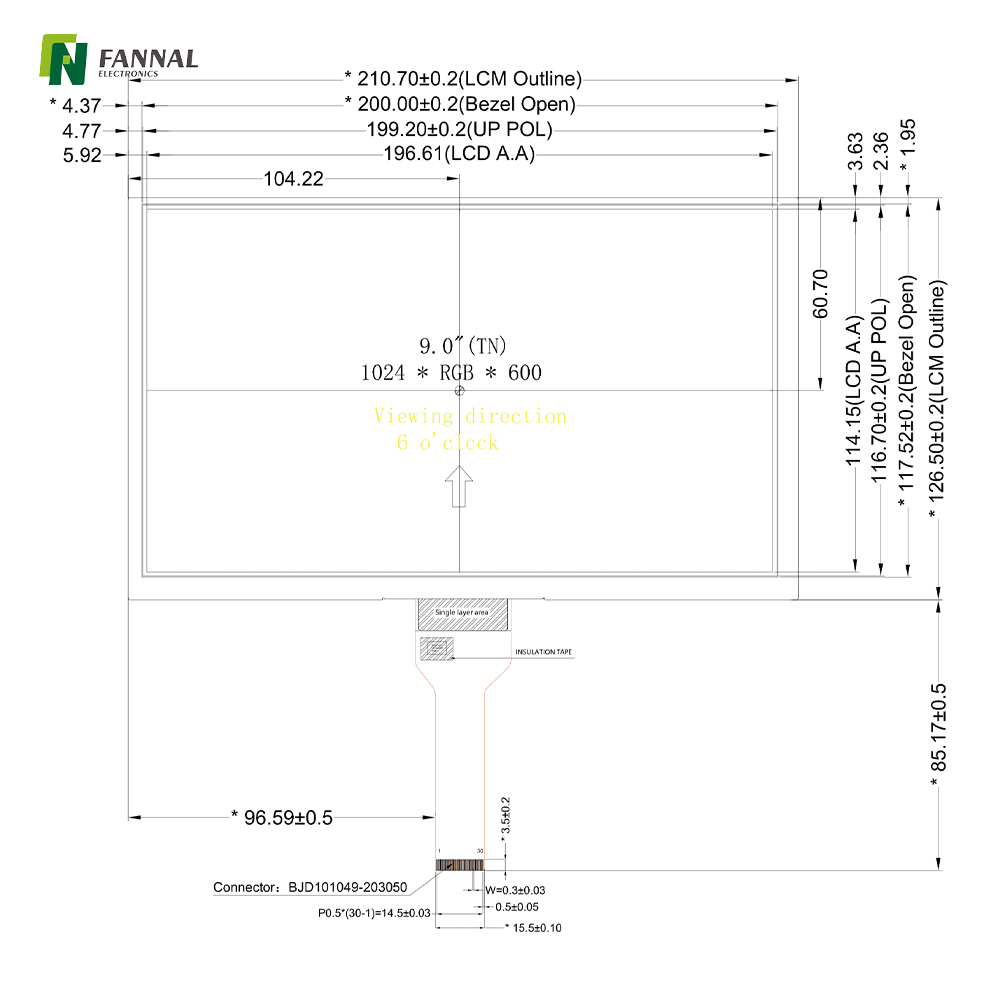

Specification drawing Specification

Product specification

Features :

TFT Display

Add-Ons-CTP /AD Board

We can provide complete accessories, including CTP and backlight board, AD Board and wire sets.

Mechanical characteristics:

Item	Description	Unit
LCD Screen Size	9	inch
Active Area	196.61x114.15	mm
Resolution	1024x600	mm
Viewing Angle(θT/θB/θL/θR)	70/70/70/70
Luminance	400	cd/m²
Interface	MIPI
TP module	FN0900D002A
Outline Dimension	210.7x126.5x5.0	mm
