8-inch Industrial TFT LCD,800x1280,300cd/m2,34PIN MIPI

FN0800D013A IPS TFT LCD

P/N:FN0800D013A

Active Area(mm):107.64x172.224

Resolution:800x1280

Viewing Angle:80/80/80/80

Luminance:300

Interface:MIPI

OP ℃: -20~60

ST ℃: -30~70

Specification Download

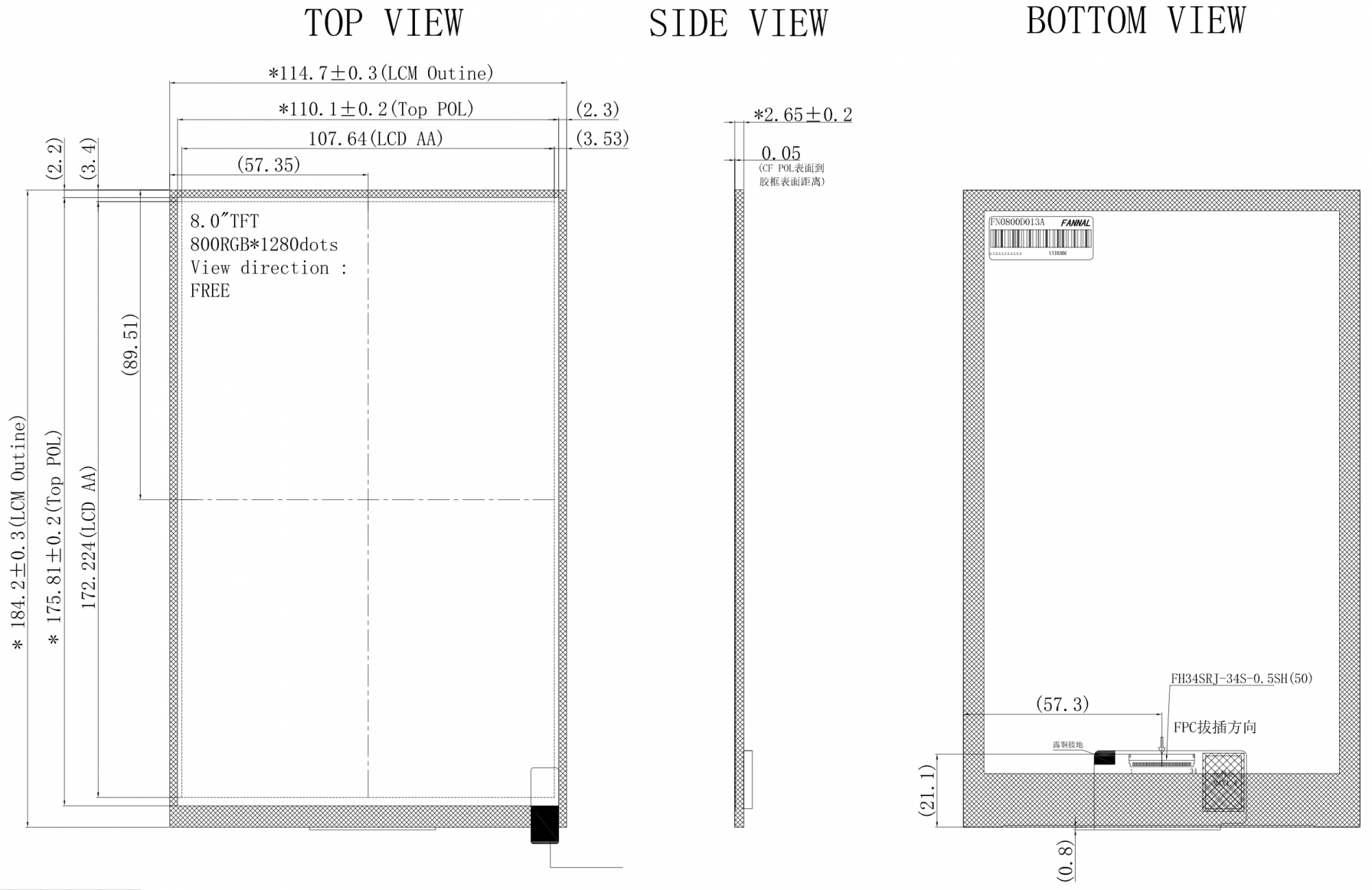

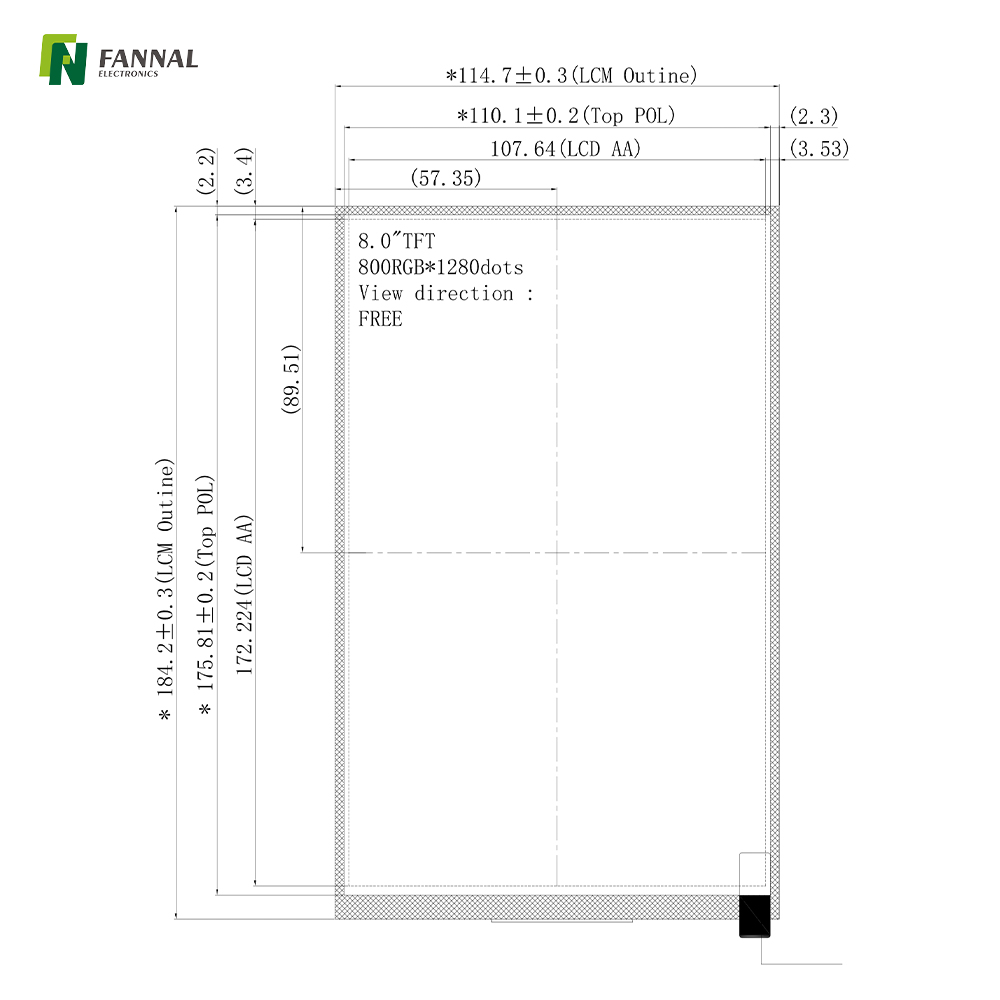

Specification drawing Specification

Product specification

Features :

IPS TFT Display

Add-Ons-CTP /AD Board

We can provide complete accessories, including CTP and backlight board, AD Board and wire sets.

Mechanical characteristics:

Item	Description	Unit
LCD Screen Size	8	inch
Active Area	107.64x172.224	mm
Resolution	800x480	mm
Viewing Angle(θT/θB/θL/θR)	70/70/50/70
Luminance	300	cd/m²
Interface	MIPI 34
TP module	FN0800D013A
Outline Dimension	114.6x184.1x2.6	mm
