8-inch Industrial TFT LCD,800x480,400cd/m2,20PIN LVDS

FN0800D010B TFT LCD

P/N:FN0800D010B

Active Area(mm):176.6x99.36

Resolution:800x480

Viewing Angle:70/70/50/70

Luminance:400

Interface:LVDS

OP ℃: -20~70

ST ℃: -30~80

Specification Download

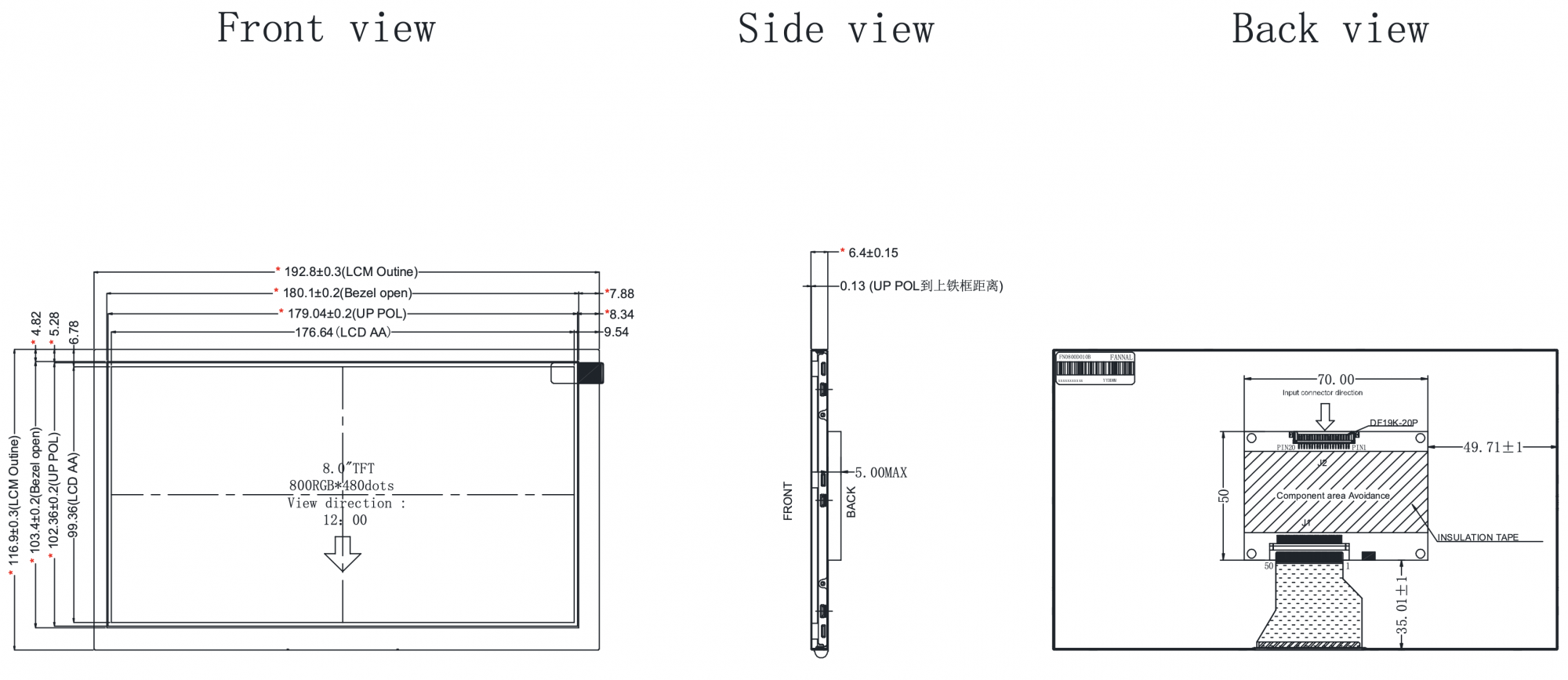

Specification drawing Specification

Product specification

Features :

TFT Display

Add-Ons-CTP /AD Board

We can provide complete accessories, including CTP and backlight board, AD Board and wire sets.

Mechanical characteristics:

Item	Description	Unit
LCD Screen Size	8	inch
Active Area	176.6x99.36	mm
Resolution	800x480	mm
Viewing Angle(θT/θB/θL/θR)	70/70/50/70
Luminance	300	cd/m²
Interface	RGB
TP module	FN0800D010B

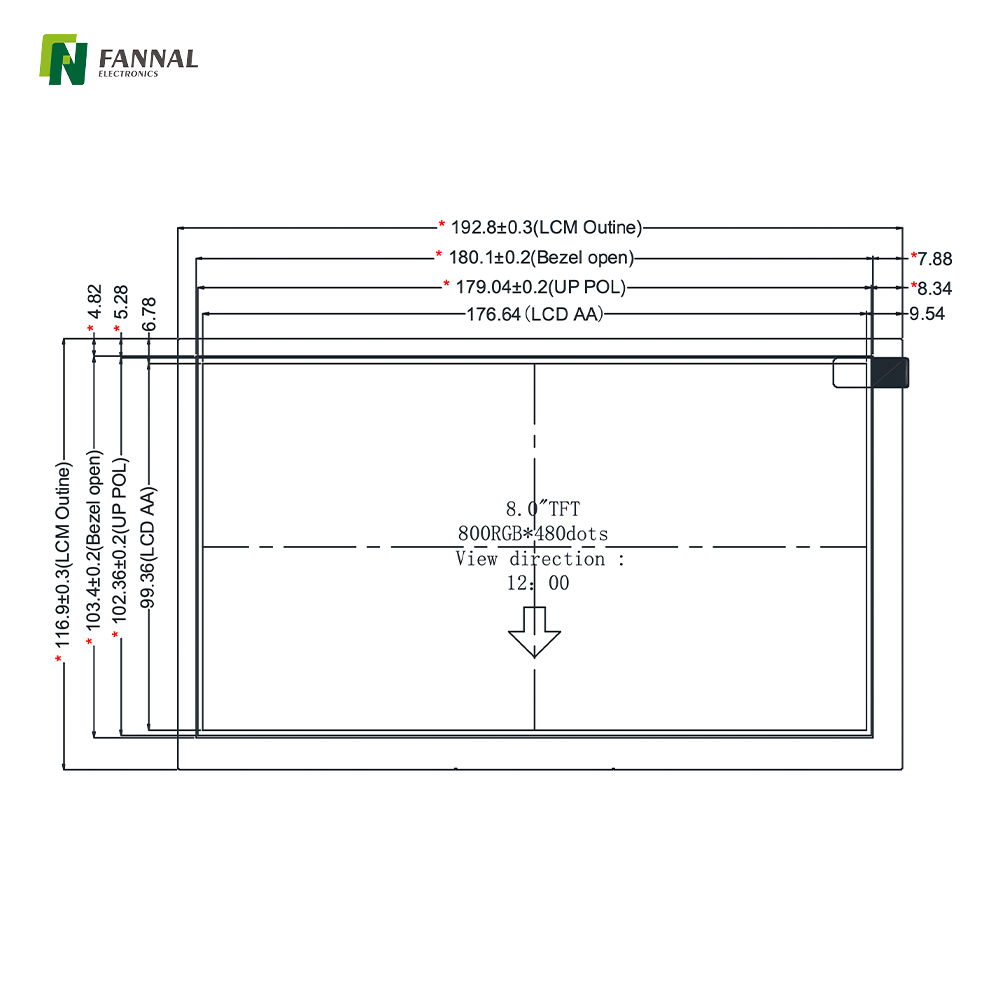

Outline Dimension	192.8x116.9x6.4	mm
