8-inch Industrial TFT LCD,800x600,300cd/m2,50PIN RGB

FN0800D009A TFT LCD

P/N:FN0800D009A

Active Area(mm):162.0x121.5

Resolution:800x600

Viewing Angle:70/70/50/70

Luminance:300

Interface:RGB

OP ℃: -20~70

ST ℃: -20~70

Specification Download

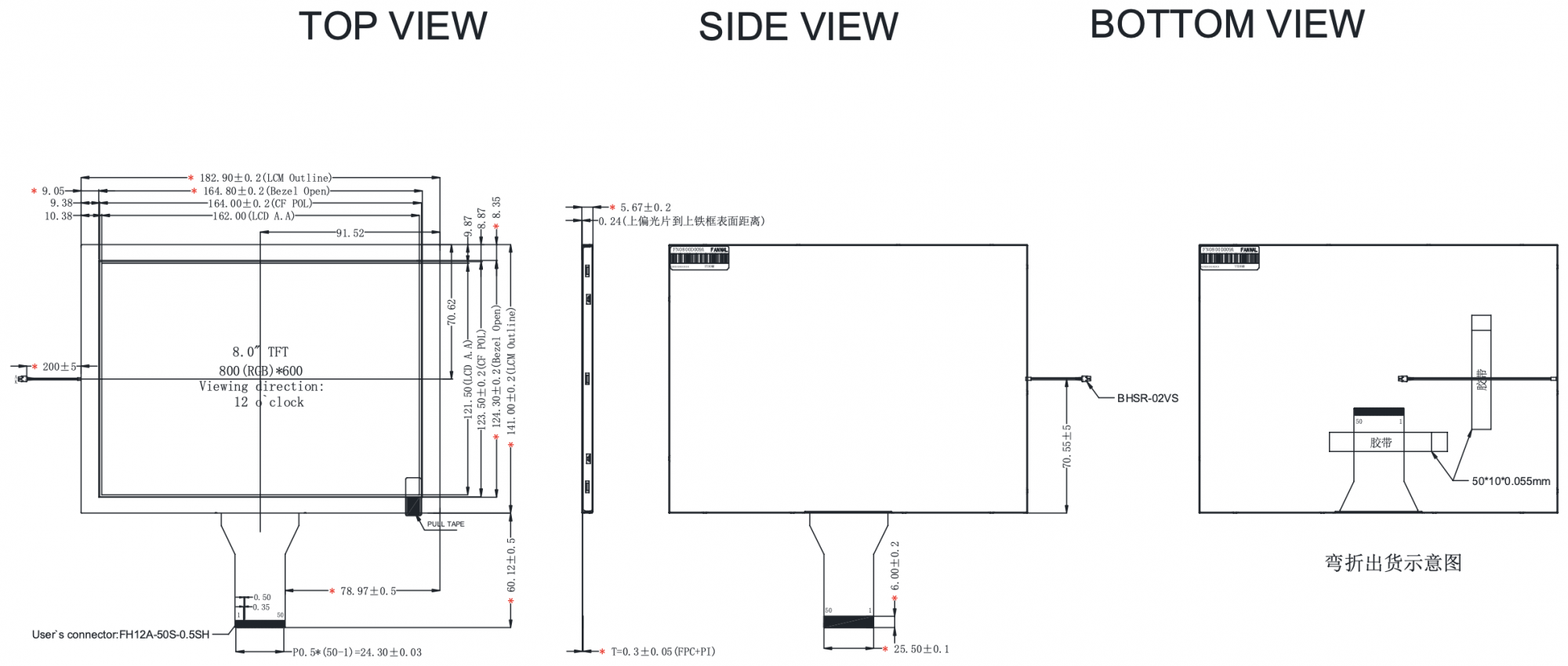

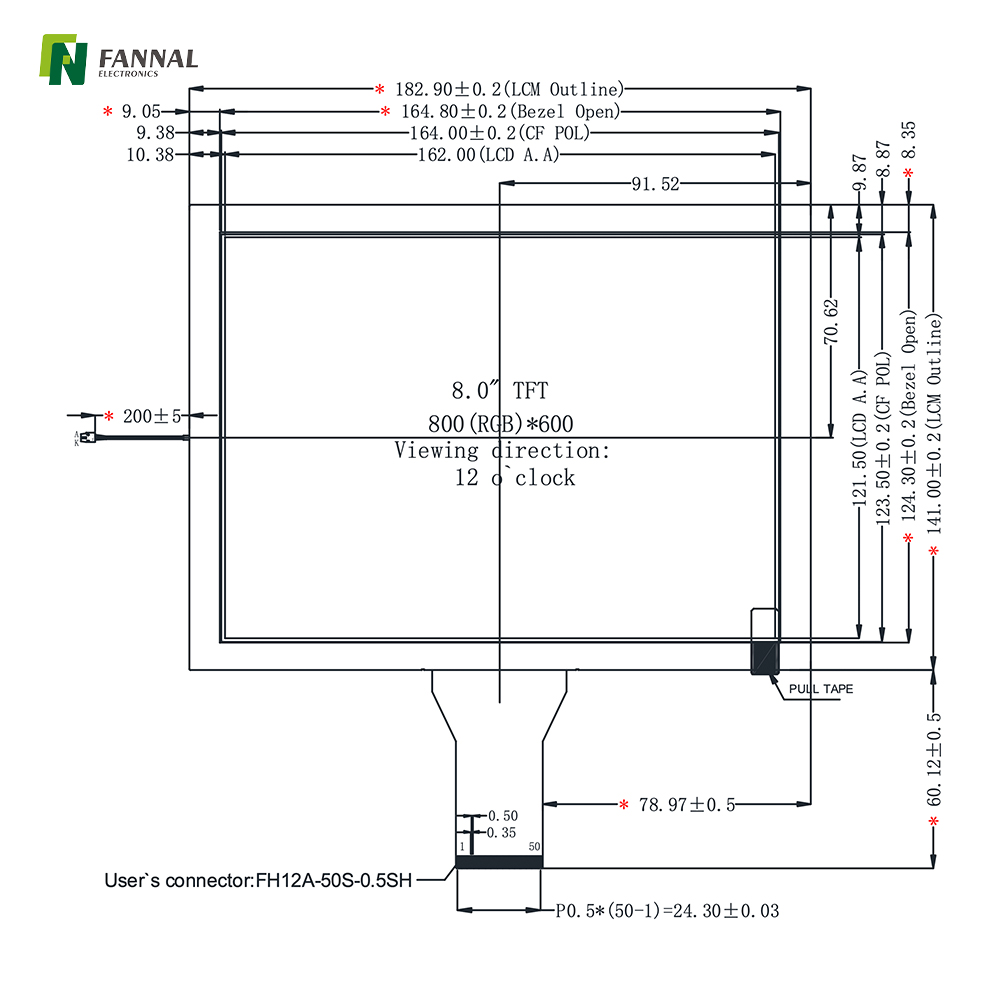

Specification drawing Specification

Product specification

Features :

TFT Display

Add-Ons-CTP /AD Board

We can provide complete accessories, including CTP and backlight board, AD Board and wire sets.

Mechanical characteristics:

Item	Description	Unit
LCD Screen Size	8	inch
Active Area	162.0x121.5	mm
Resolution	800x600	mm
Viewing Angle(θT/θB/θL/θR)	70/70/50/70
Luminance	300	cd/m²
Interface	RGB
TP module	FN0800D009A
Outline Dimension	182.9x141.0x5.67	mm
