7-inch Industrial TFT LCD,800x480,TN,400cd/m2, 50PINS RGB

FN0700D070A TFT display

P/N:FN0700D070A

Active Area(mm):154.08x85.92

Resolution: 800x480

Viewing Angle: 70/70/50/70

Luminance: 400

Interface:RGB

OP ℃: -20~70

ST ℃: -30~80

Specification Download

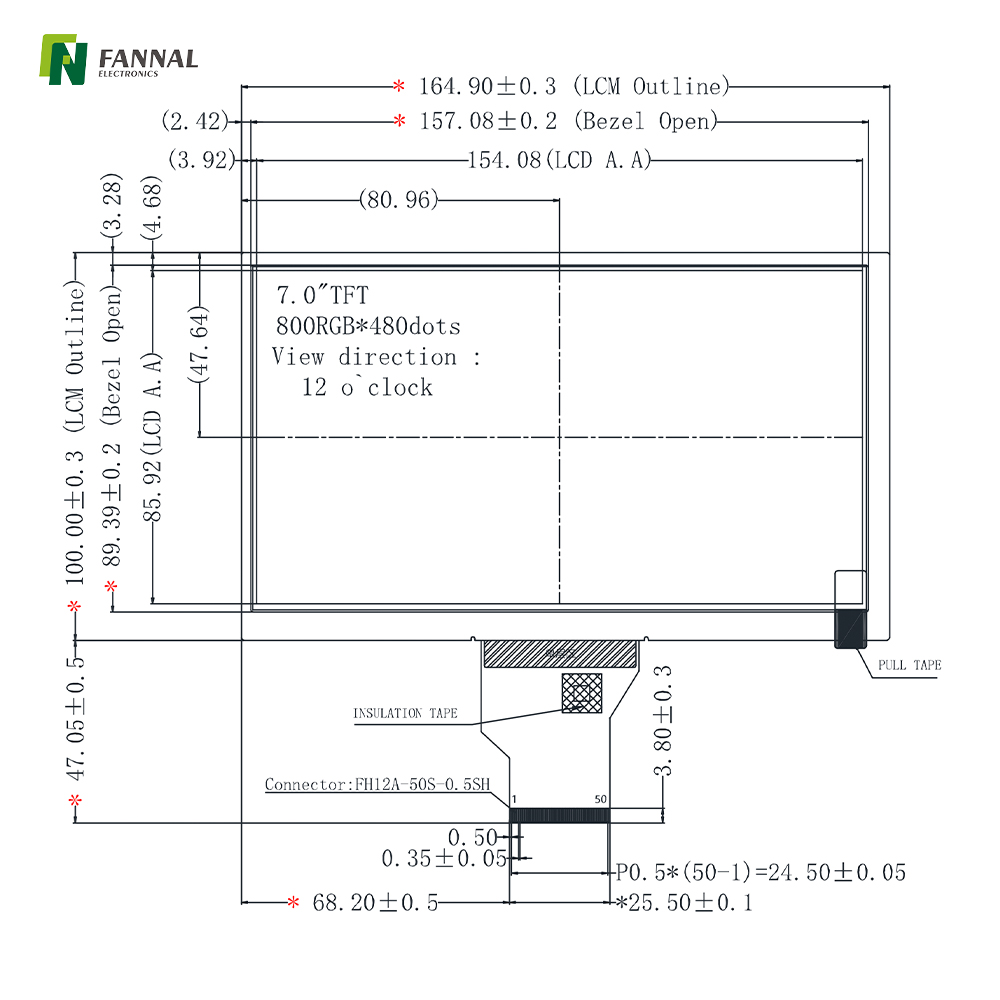

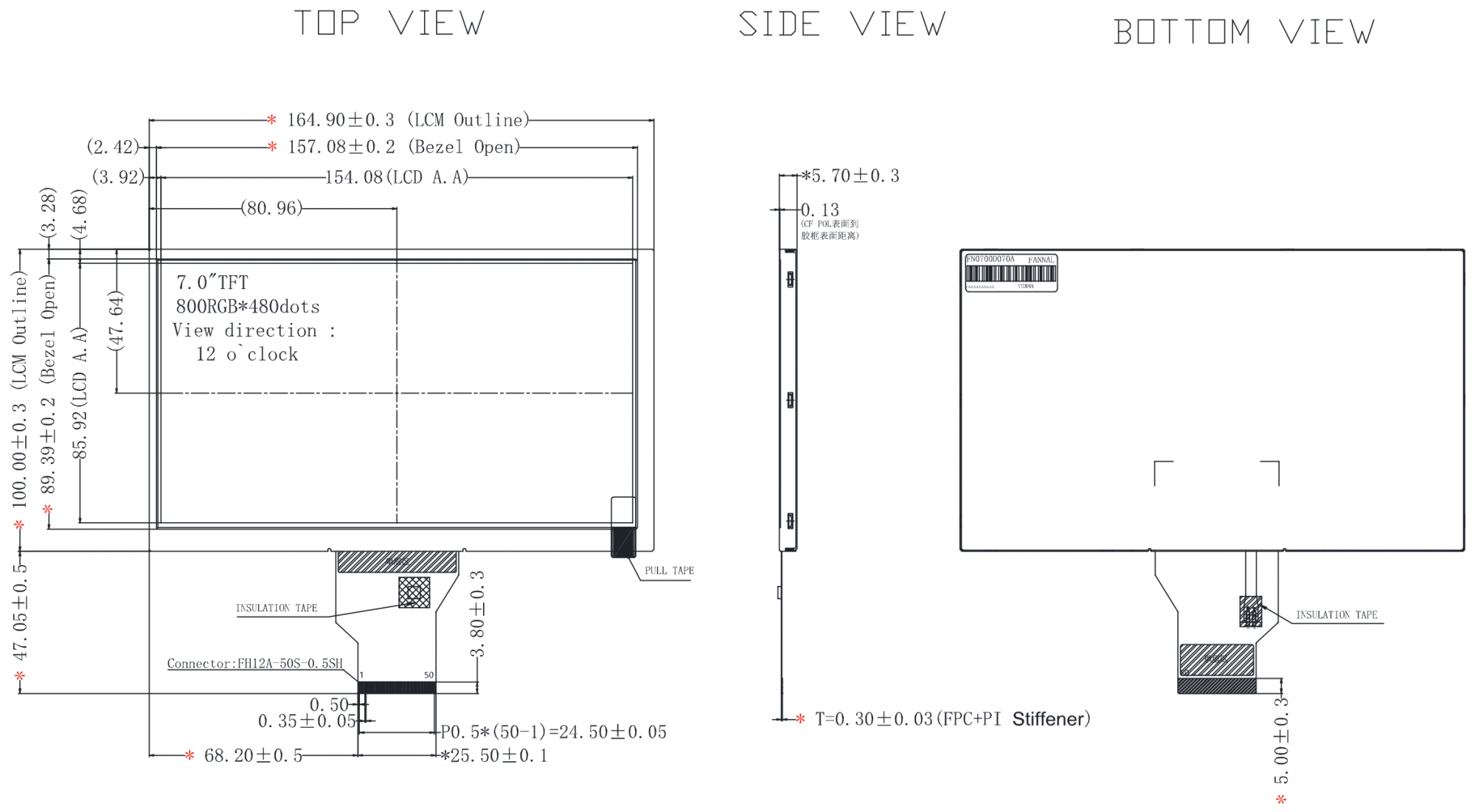

Specification drawing Specification

Product specification

Features :

TFT display

Add-Ons-CTP /AD Board

We can provide complete accessories, including CTP and backlight board, AD Board and wire sets.

Mechanical characteristics:

Item	Description	Unit
LCD Screen Size	7	inch
Active Area	154.08x85.92	mm
Resolution	800x480	mm
Viewing Angle(θT/θB/θL/θR)	70/70/50/70
Luminance	400	cd/m²
Interface	RGB
TP module	FN0700D070A
Outline Dimension	164.9x100x5.7	mm
