7.0-inch Industrial TFT LCD,800x480,270cd/m2,RGB 50

FN0700D044A TFT LCD

P/N:FN0700D044A

Active Area(mm):154.08x85.92

Resolution:800x480

Viewing Angle:70/70/60/70

Luminance:270

Interface:RGB

OP ℃:-20~70

ST ℃: -30~80

Specification Download

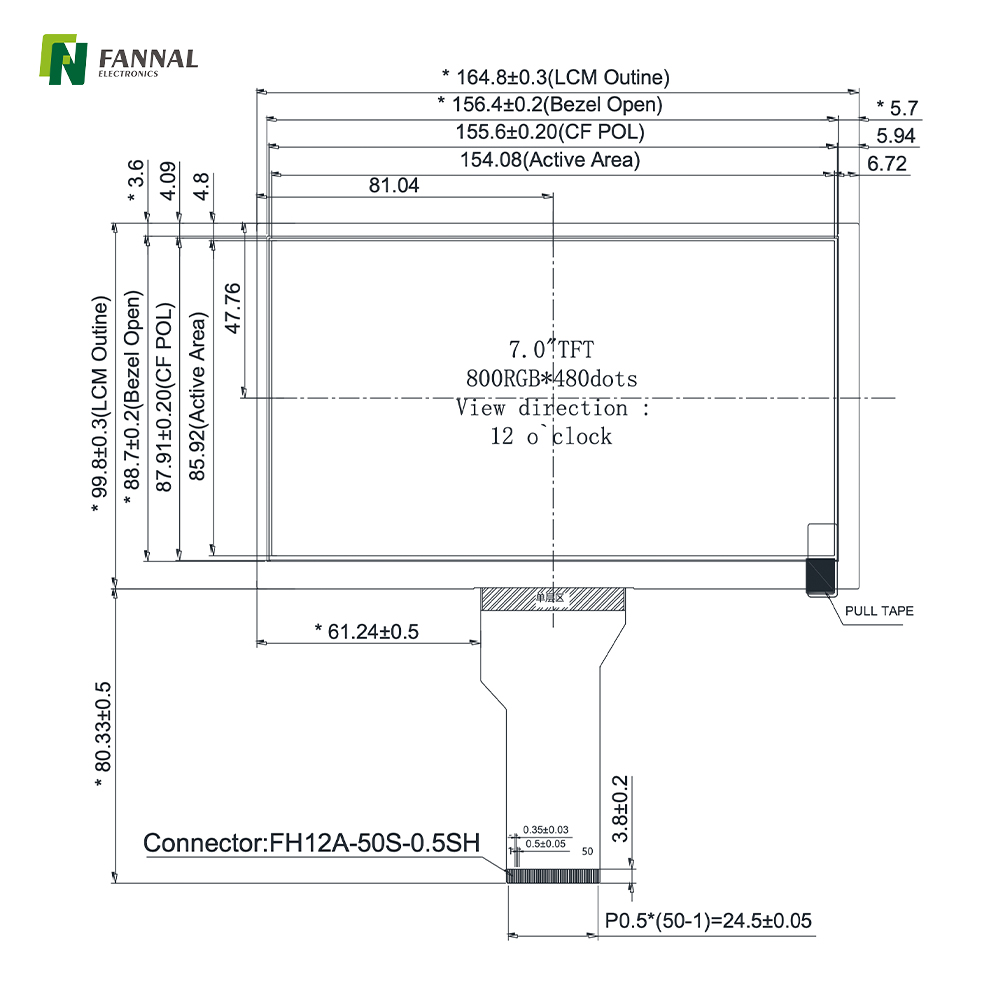

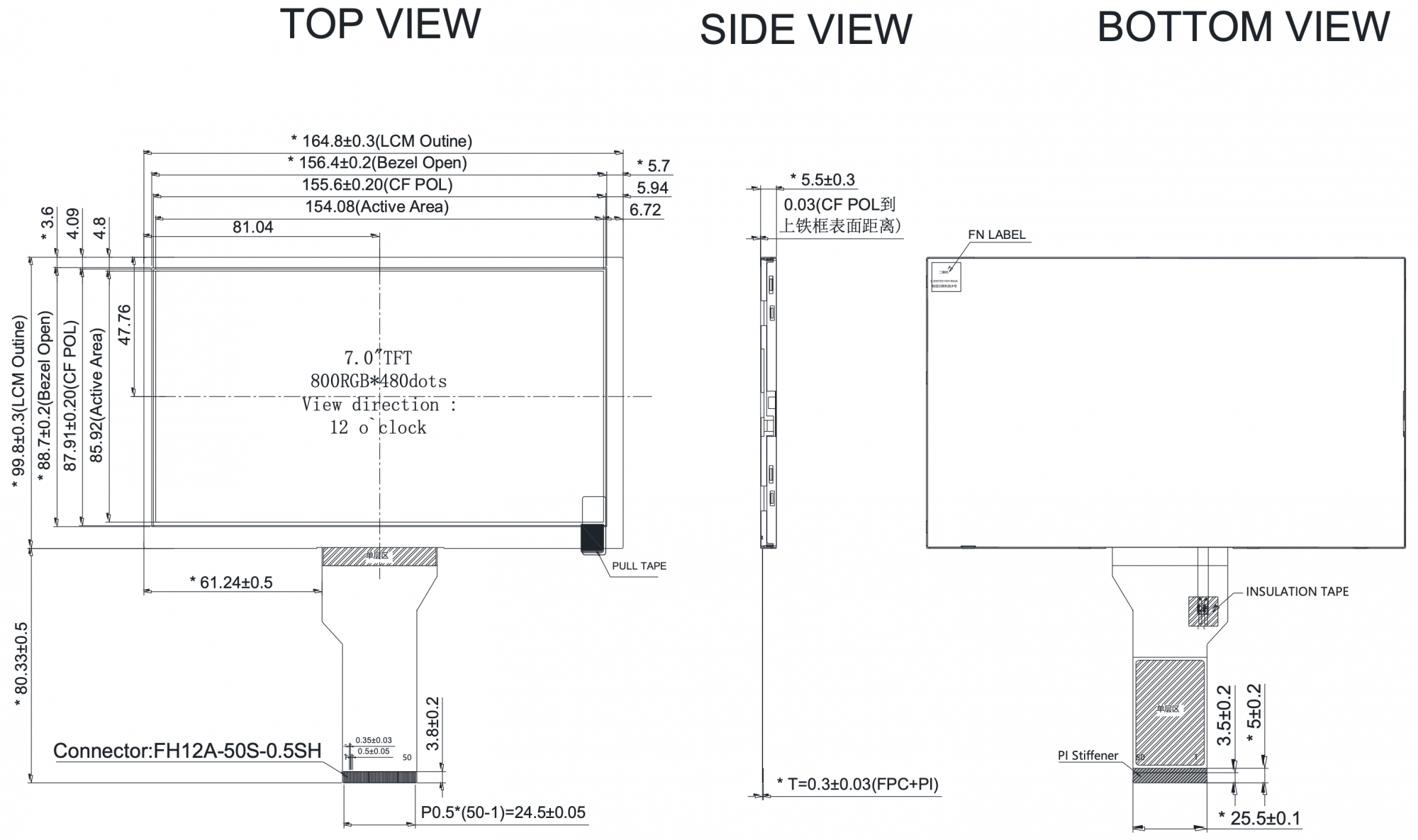

Specification drawing Specification

Product specification

Features :

TFT Display

Add-Ons-CTP /AD Board

We can provide complete accessories, including CTP and backlight board, AD Board and wire sets.

Mechanical characteristics:

Item	Description	Unit
LCD Screen Size	7.0	inch
Active Area	154.08x85.92	mm
Resolution	800x480	mm
Viewing Angle(θT/θB/θL/θR)	70/70/60/70
Luminance	270	cd/m²
Interface	RGB
TP module	FN0700D044A
Outline Dimension	164.8x99.8x5.5	mm
