7-inch Industrial TFT LCD,800x480,400cd/m2,60PIN RGB

FN0700D004B TFT LCD

P/N:FN0700D004B

Active Area(mm):152.4x91.44

Resolution:800x480

Viewing Angle:70/70/60/70

Luminance:400

Interface: RGB

OP ℃: -20~70

ST ℃: -30~80

Specification Download

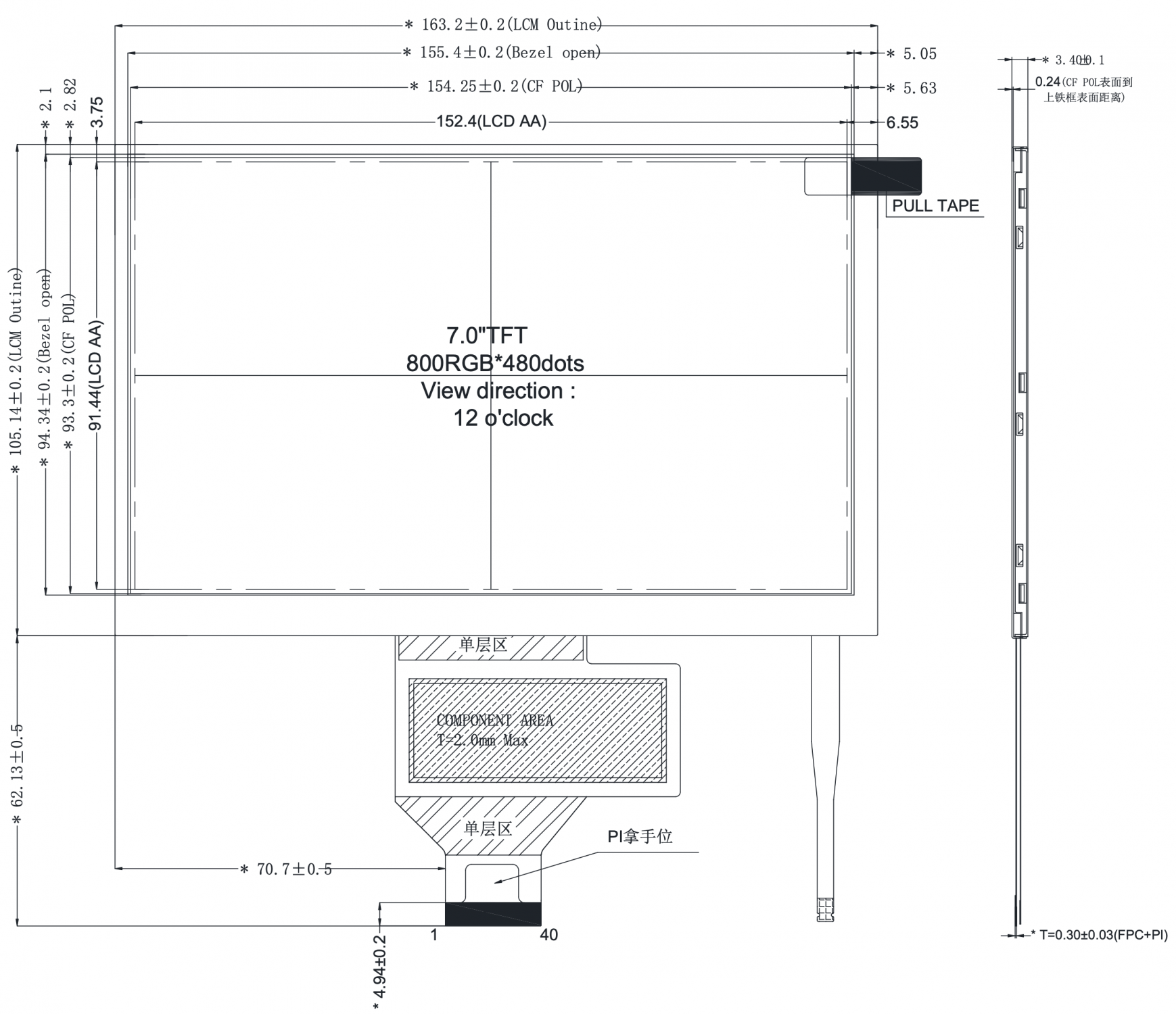

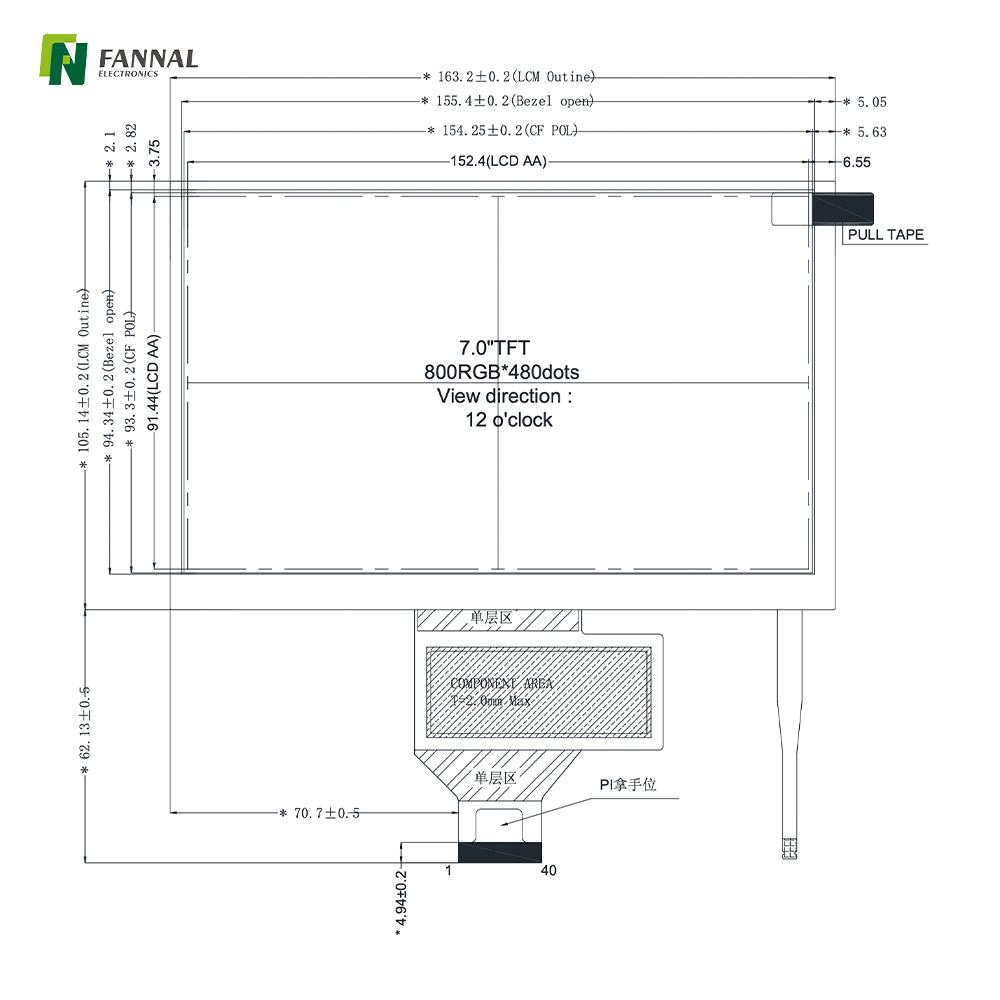

Specification drawing Specification

Product specification

Features :

TFT Display

Add-Ons-CTP /AD Board

We can provide complete accessories, including CTP and backlight board, AD Board and wire sets.

Mechanical characteristics:

Item	Description	Unit
LCD Screen Size	7	inch
Active Area	152.4x91.44	mm
Resolution	800x480	mm
Viewing Angle(θT/θB/θL/θR)	70/70/60/70
Luminance	400	cd/m²
Interface	RGB
TP module	FN0700D018A
Outline Dimension	163.2x105.14x3.4	mm
