P/N:FN0686D004B
Active Area(mm):60.192x160.512
Resolution:480x1280
Viewing Angle:85/85/85/85
Luminance:1000
Interface: MIPI
OP ℃: -20~70
ST ℃: -30~80
| Item | Description | Unit |
| LCD Screen Size | 6.86 | inch |
| Active Area | 60.192x160.512 | mm |
| Resolution | 480x1280 | mm |
| Viewing Angle(θT/θB/θL/θR) | 85/85/85/85 | |
| Luminance | 1000 | cd/m² |
| Interface | MIPI 30 | |
| TP module | FN0686D004B | |

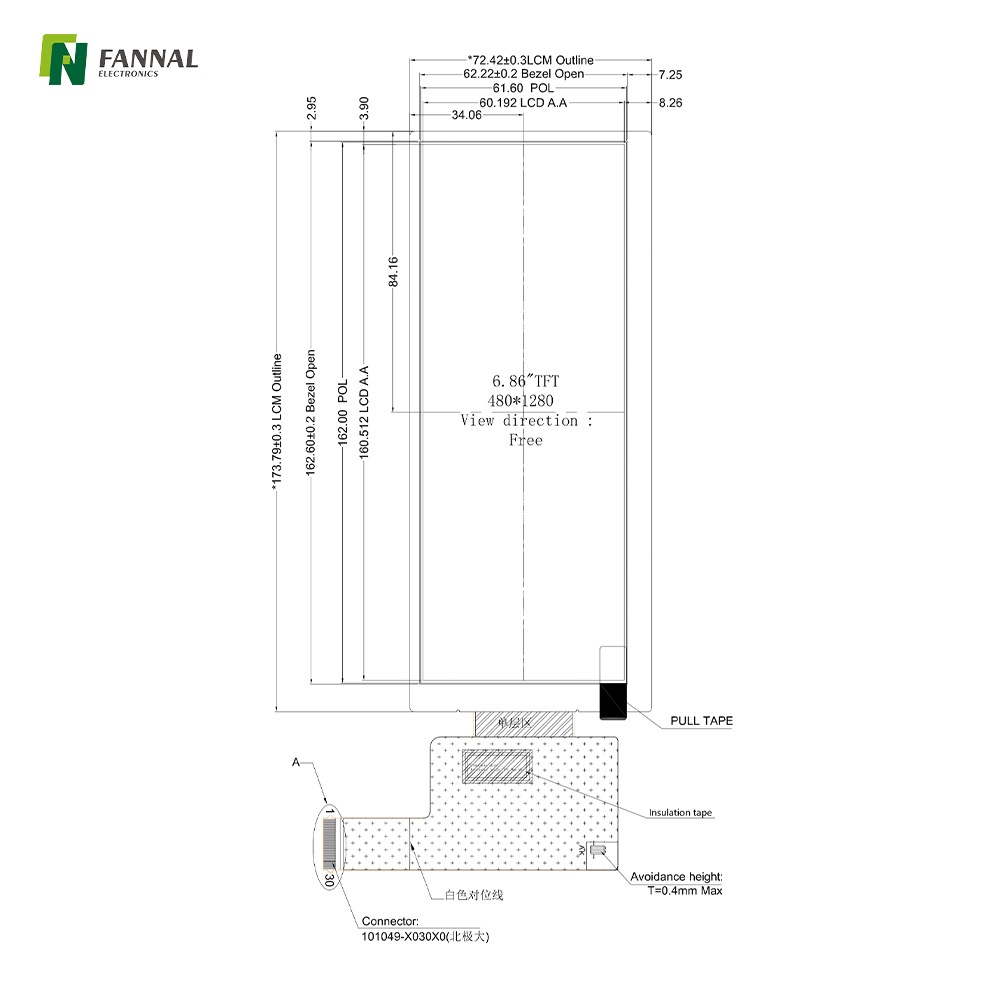

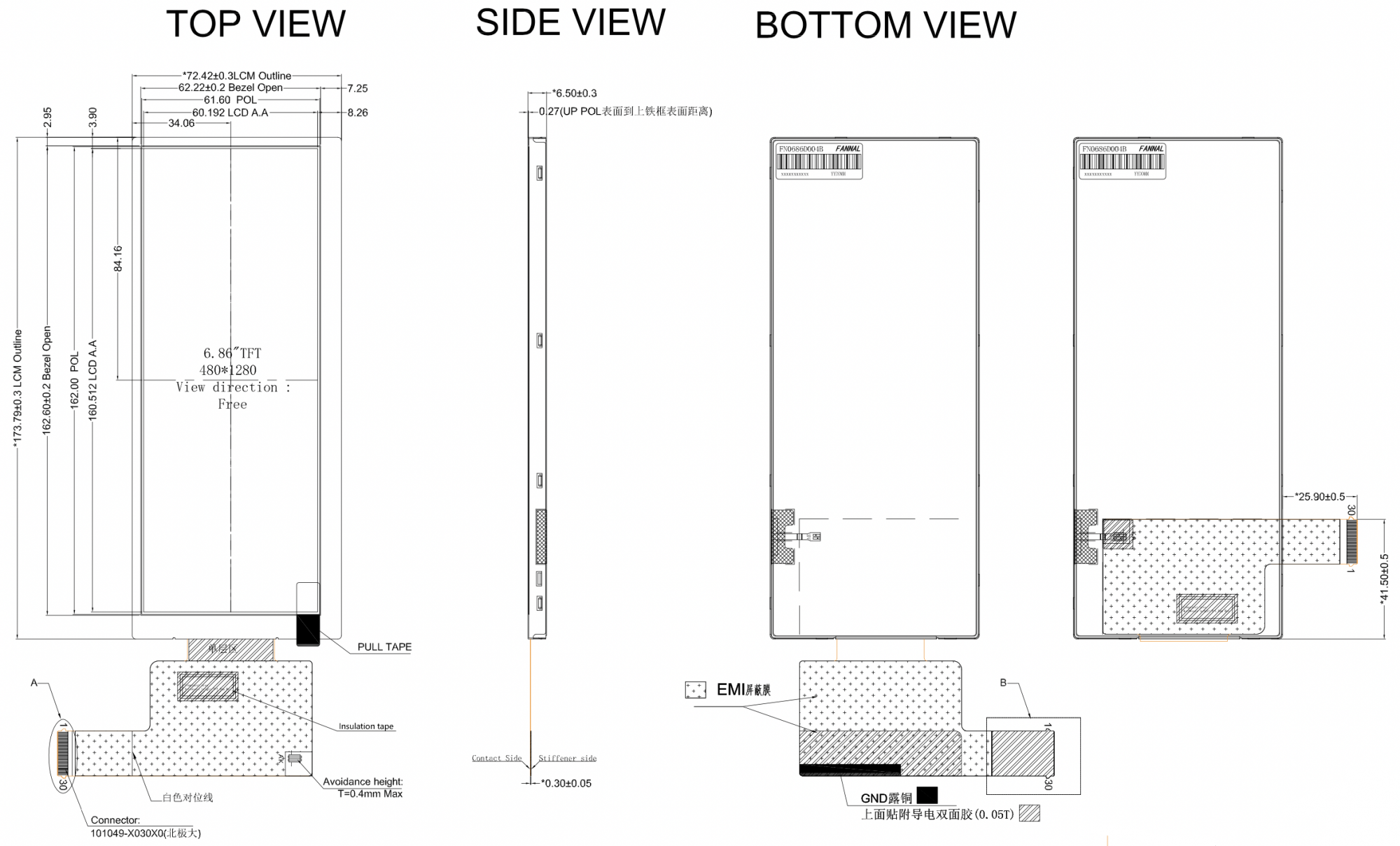

| Outline Dimension | 72.42x173.79x6.5 | mm |
