4.3-inch Industrial TFT LCD,480x272,450cd/m2, 40PIN RGB

FN0430D021A TFT LCD

P/N:FN0430D021A

Active Area(mm):95.04x53.856

Resolution:480x272

Viewing Angle:45/45/15/35

Luminance:450

Interface: RGB

OP ℃: -20~70

ST ℃: -30~80

Specification Download

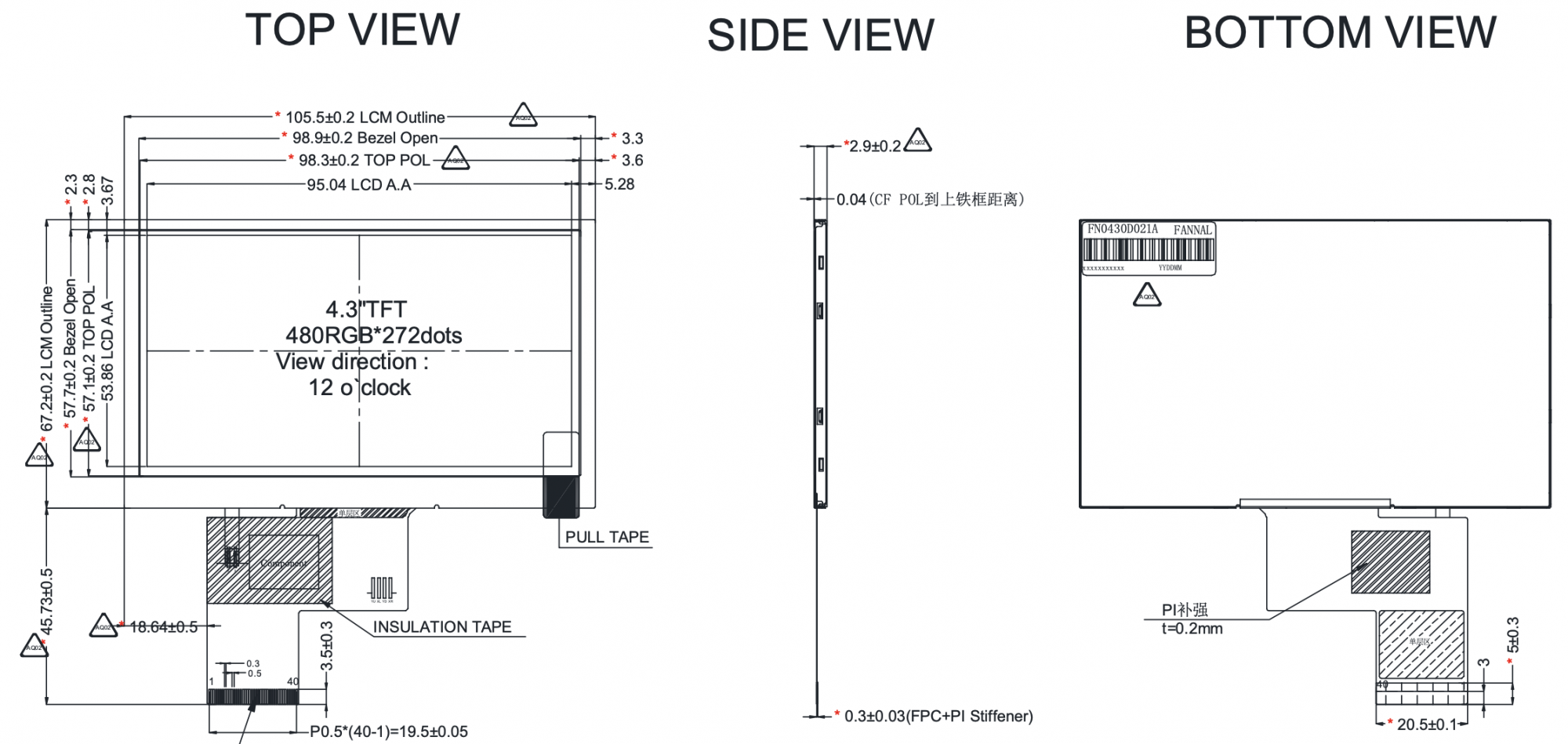

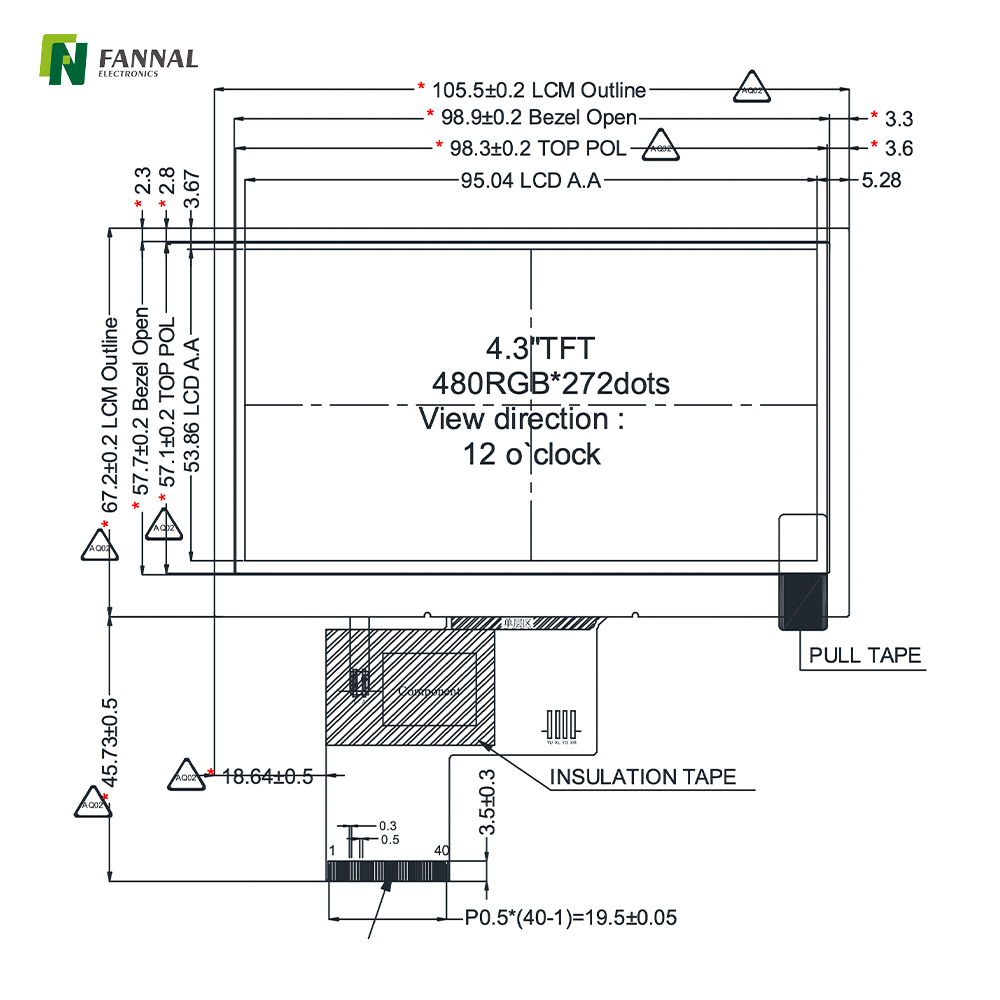

Specification drawing Specification

Product specification

Features :

IPS TFT Display

Add-Ons-CTP /AD Board

We can provide complete accessories, including CTP and backlight board, AD Board and wire sets.

Mechanical characteristics:

Item	Description	Unit
LCD Screen Size	4.3	inch
Active Area	95.04x53.856	mm
Resolution	480x272	mm
Viewing Angle(θT/θB/θL/θR)	45/45/15/35
Luminance	450	cd/m²
Interface	RGB
TP module	FN0430D021A
Outline Dimension	105.4x67.1x2.94	mm
