3.5-inch Industrial TFT LCD,320x480,380cd/m2, MCU/SPI 50

FN0350D006A TFT LCD

P/N:FN0350D006A

Active Area(mm):48.96x73.44

Resolution: 320x480

Viewing Angle:70/70/60/60

Luminance: 380

Interface: MCU/SPI 50

OP ℃: -20~70

ST ℃: -30~80

Specification Download

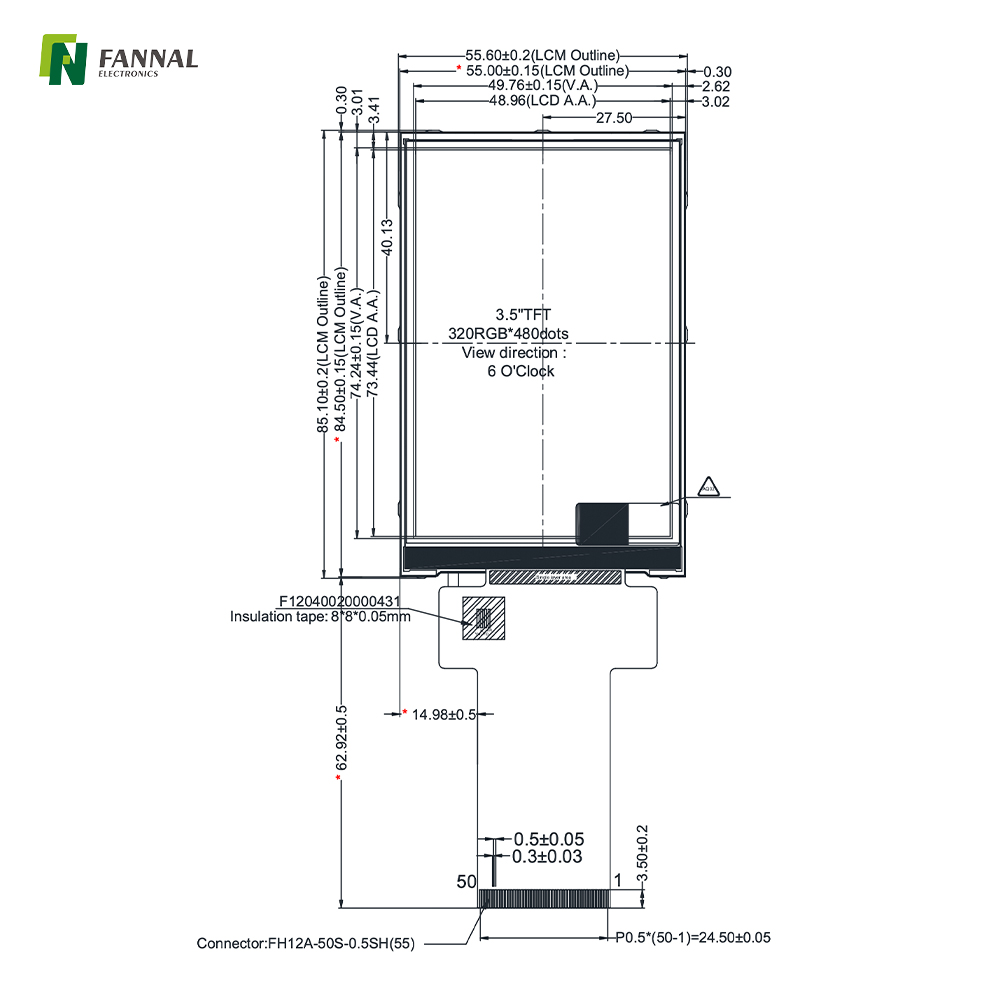

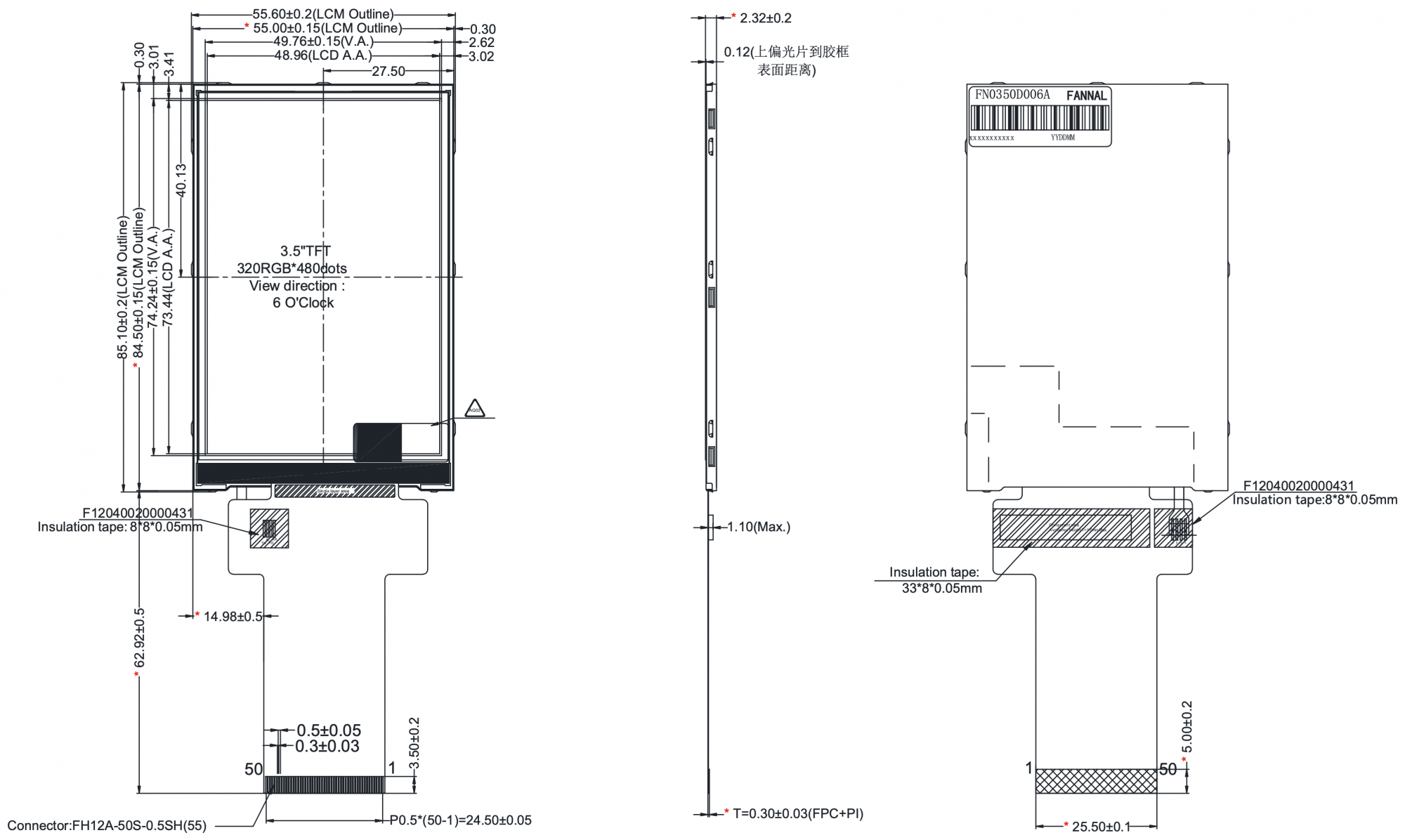

Specification drawing Specification

Product specification

Features :

IPS TFT Display

Add-Ons-CTP /AD Board

We can provide complete accessories, including CTP and backlight board, AD Board and wire sets.

Mechanical characteristics:

Item	Description	Unit
LCD Screen Size	3.5	inch
Active Area	48.96x73.44	mm
Resolution	320x480	mm
Viewing Angle(θT/θB/θL/θR)	70/70/60/60
Luminance	380	cd/m²
Interface	MCU/SPI 50
TP module	FN0350D006A
Outline Dimension	55.6x85.1x2.32	mm
