P/N:FN0240D010A
Active Area(mm):36.72x48.96
Resolution: 240x320
Viewing Angle:80/80/80/80
Luminance: 550
Interface: MCU&RGB
OP ℃: -20~70
ST ℃: -30~80
| Item | Description | Unit |
| LCD Screen Size | 2.4 | inch |
| Active Area | 36.72x48.96 | mm |
| Resolution | 240x320 | mm |
| Viewing Angle(θT/θB/θL/θR) | 80/80/80/80 | |
| Luminance | 550 | cd/m² |
| Interface | MCU&RGB | |
| TP module | FN0240D010A | |

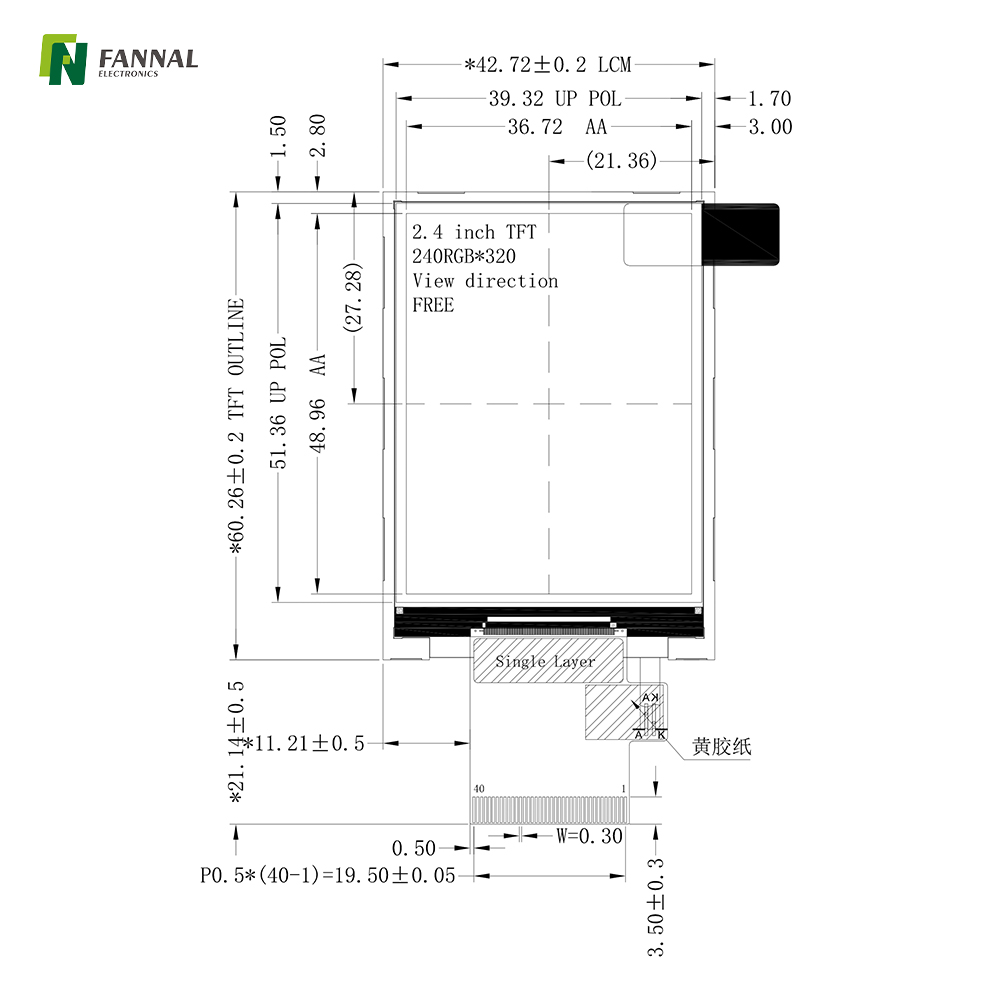

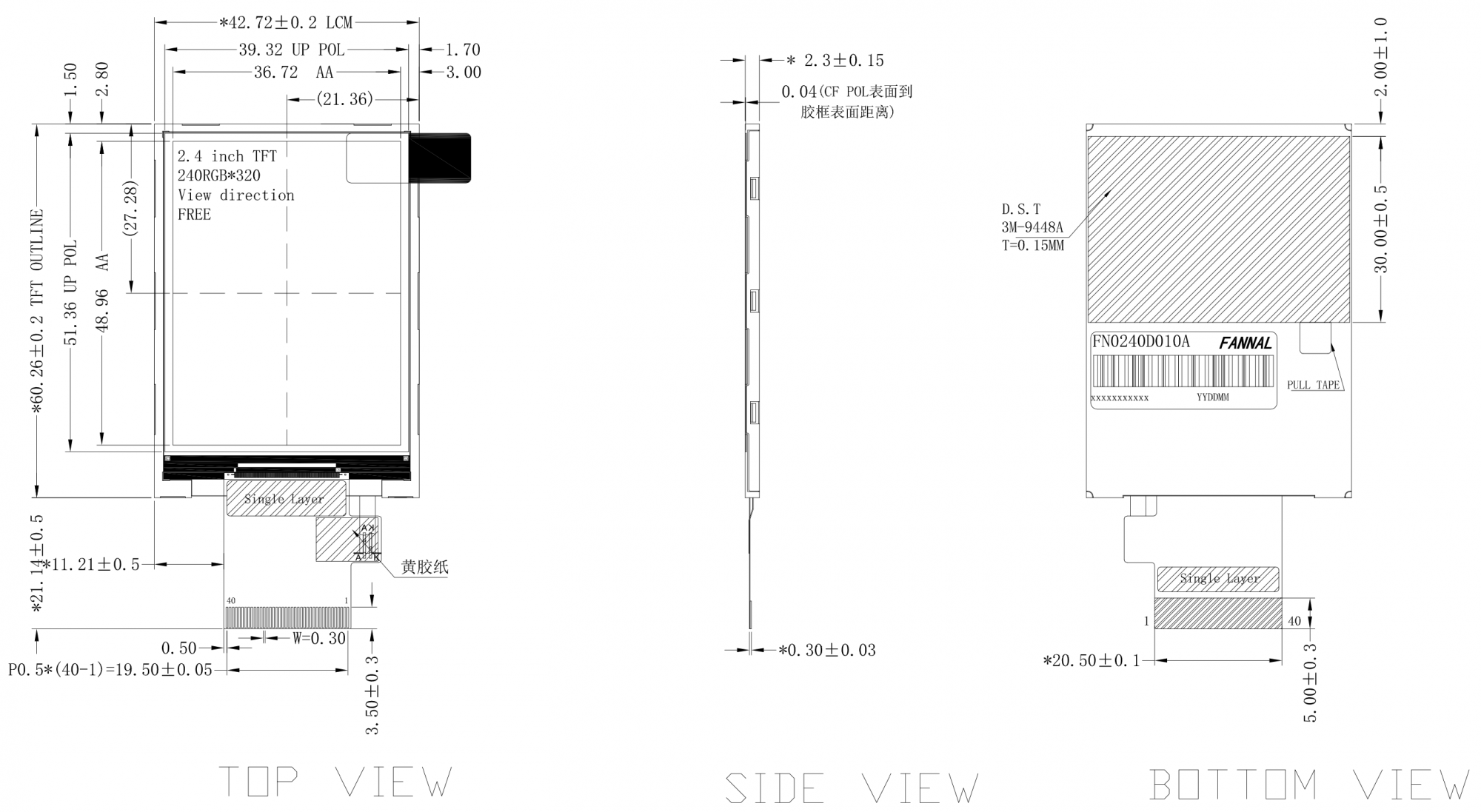

| Outline Dimension | 42.72x60.26x2.3 | mm |
