P/N:FN1010D024A
Active Area(mm):222.72x125.28
Resolution:1024x600
Viewing Angle:80/80/60/70
Luminance:400
Interface:LVDS
OP ℃:-20~70
ST ℃: -30~80
| Item | Description | Unit |
| LCD Screen Size | 10.1 | inch |
| Active Area | 222.72x125.28 | mm |
| Resolution | 1024x600 | mm |
| Viewing Angle(θT/θB/θL/θR) | 80/80/60/70 | |
| Luminance | 400 | cd/m² |
| Interface | LVDS | |
| TP module | FN1010D024A | |

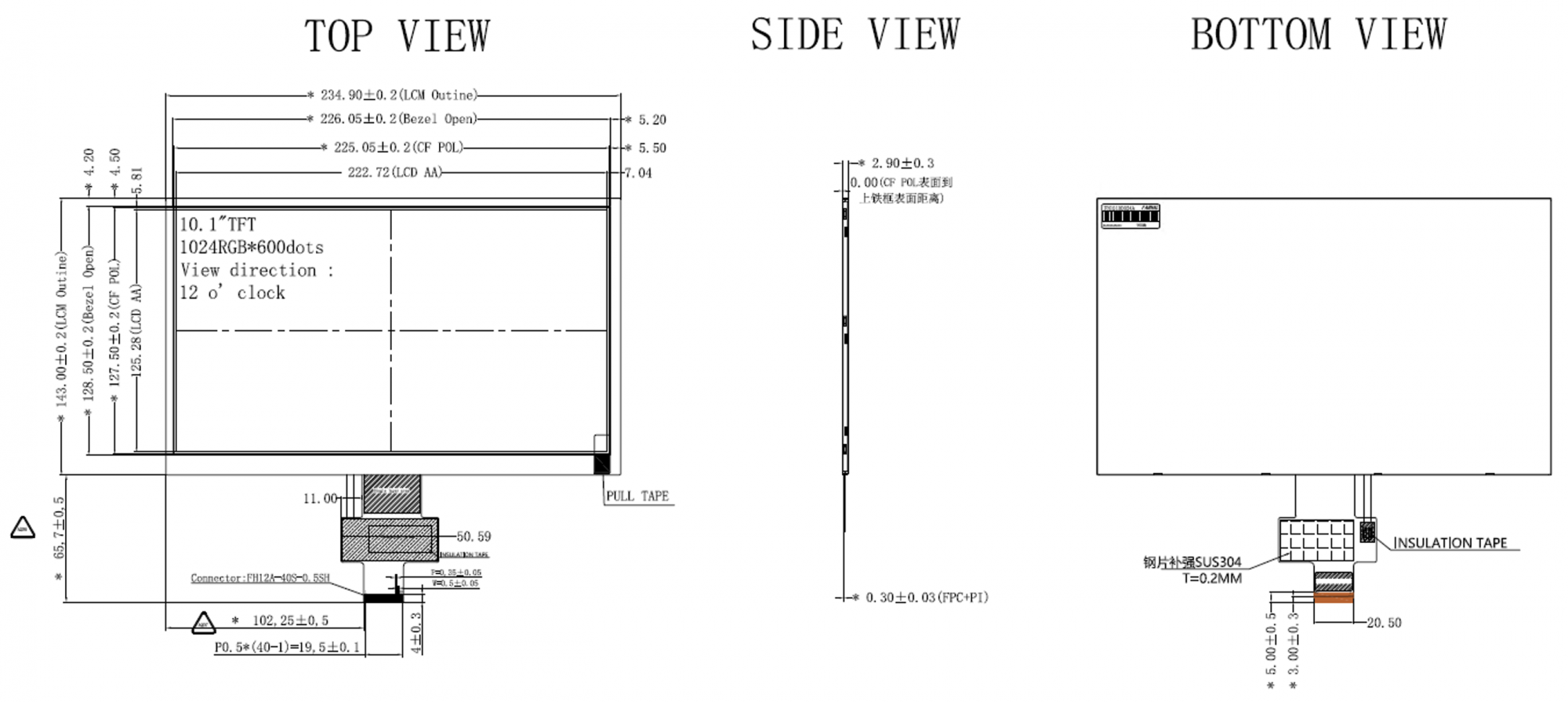

| Outline Dimension | 234.9x143x2.9 | mm |
