13.3-inch Industrial TFT LCD,1920x1080,300cd/m2,30PIN eDP

FN1330D001A IPS TFT LCD

P/N:FN1330D001A

Active Area(mm):293.76x165.24

Resolution:1920x1080

Viewing Angle:85/85/85/85

Luminance:300

Interface:eDP

OP ℃: 0~50

ST ℃: -20~70

Specification Download

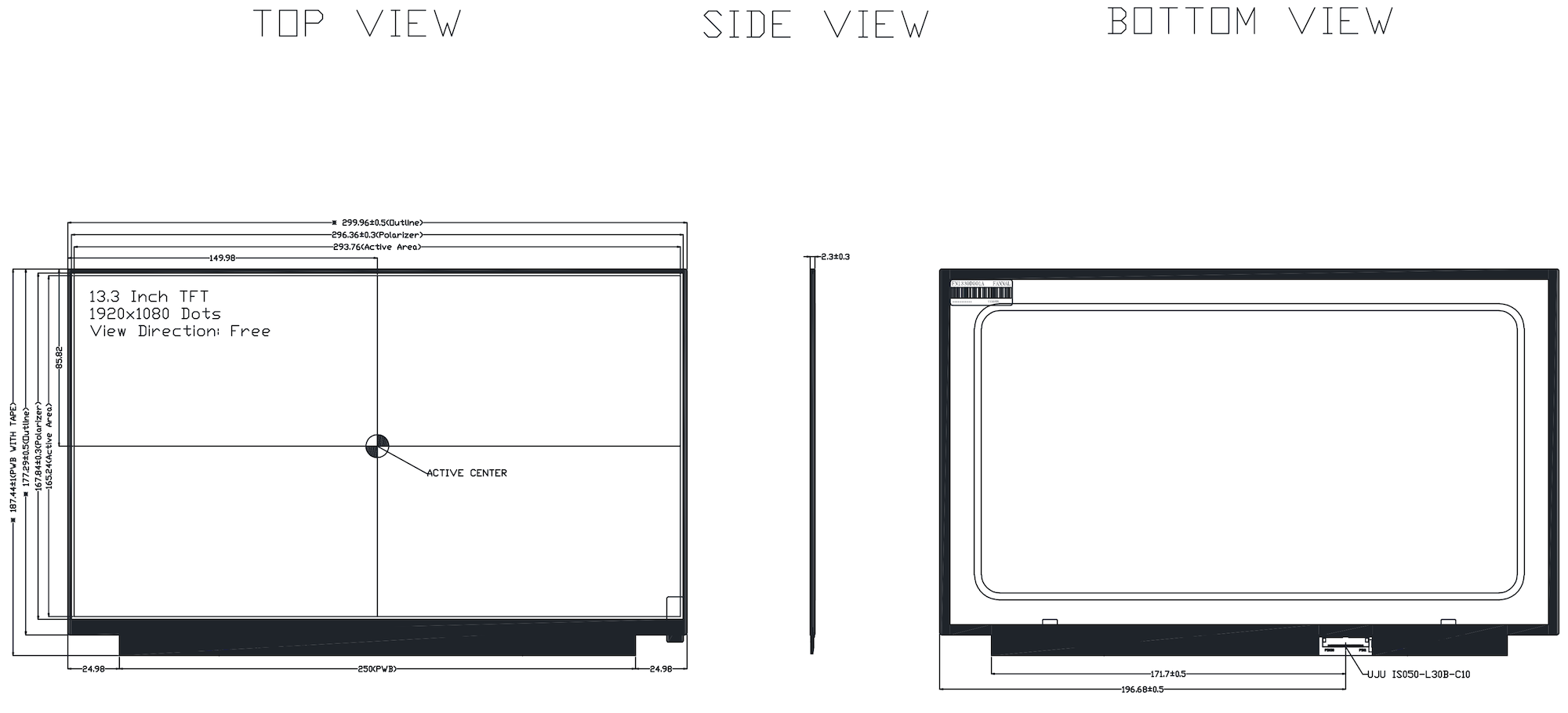

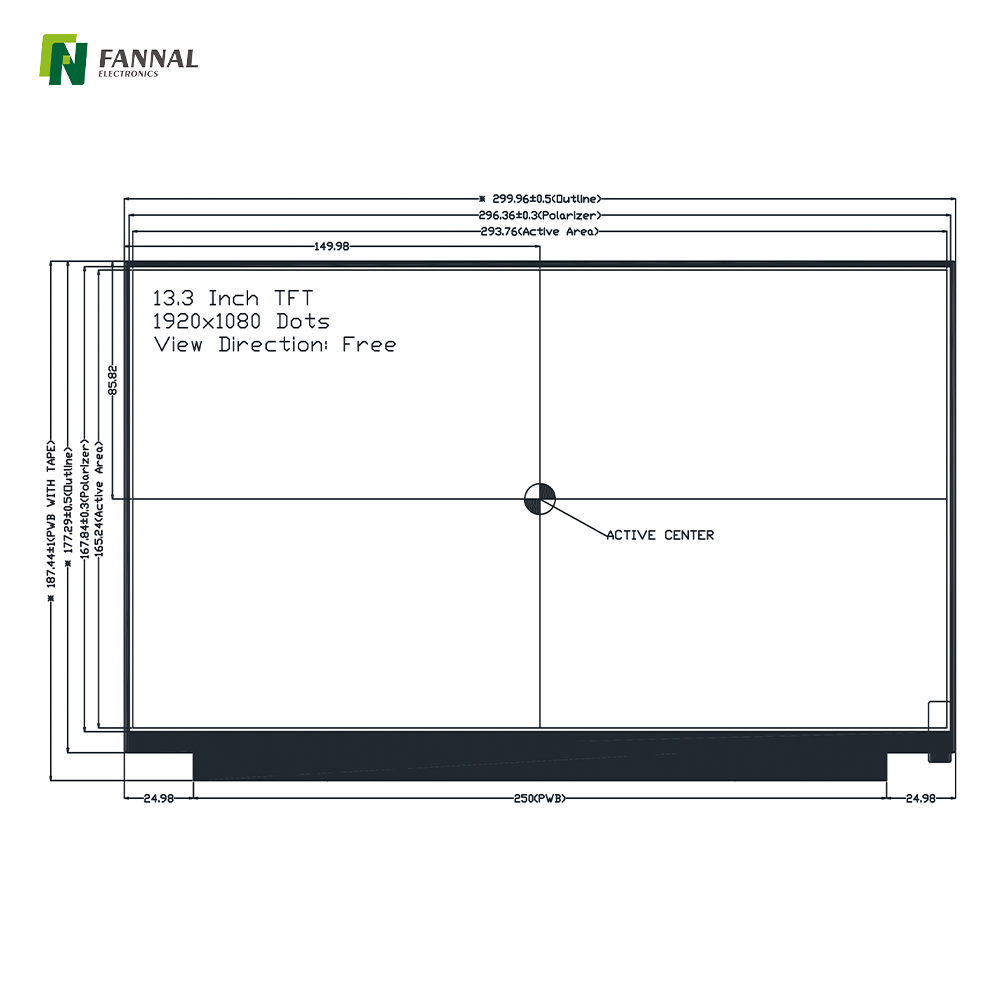

Specification drawing Specification

Product specification

Features :

IPS TFT Display

Add-Ons-CTP /AD Board

We can provide complete accessories, including CTP and backlight board, AD Board and wire sets.

Mechanical characteristics:

Item	Description	Unit
LCD Screen Size	13.3	inch
Active Area	293.76x165.24	mm
Resolution	1920x1080	mm
Viewing Angle(θT/θB/θL/θR)	85/85/85/85
Luminance	300	cd/m²
Interface	eDP
TP module	FN1330D001A
Outline Dimension	299.96x187.44x2.3	mm
