P/N:FN1010D023A
Active Area(mm):222.72x125.28
Resolution:1024x600
Viewing Angle:85/85/85/85
Luminance:600
Interface:LVDS
OP ℃: -20~70
ST ℃: -30~80
| Item | Description | Unit |
| LCD Screen Size | 10.1 | inch |
| Active Area | 222.72x125.28 | mm |
| Resolution | 1024x600 | mm |
| Viewing Angle(θT/θB/θL/θR) | 85/85/85/85 | |
| Luminance | 600 | cd/m² |
| Interface | LVDS | |
| TP module | FN1010D023A | |

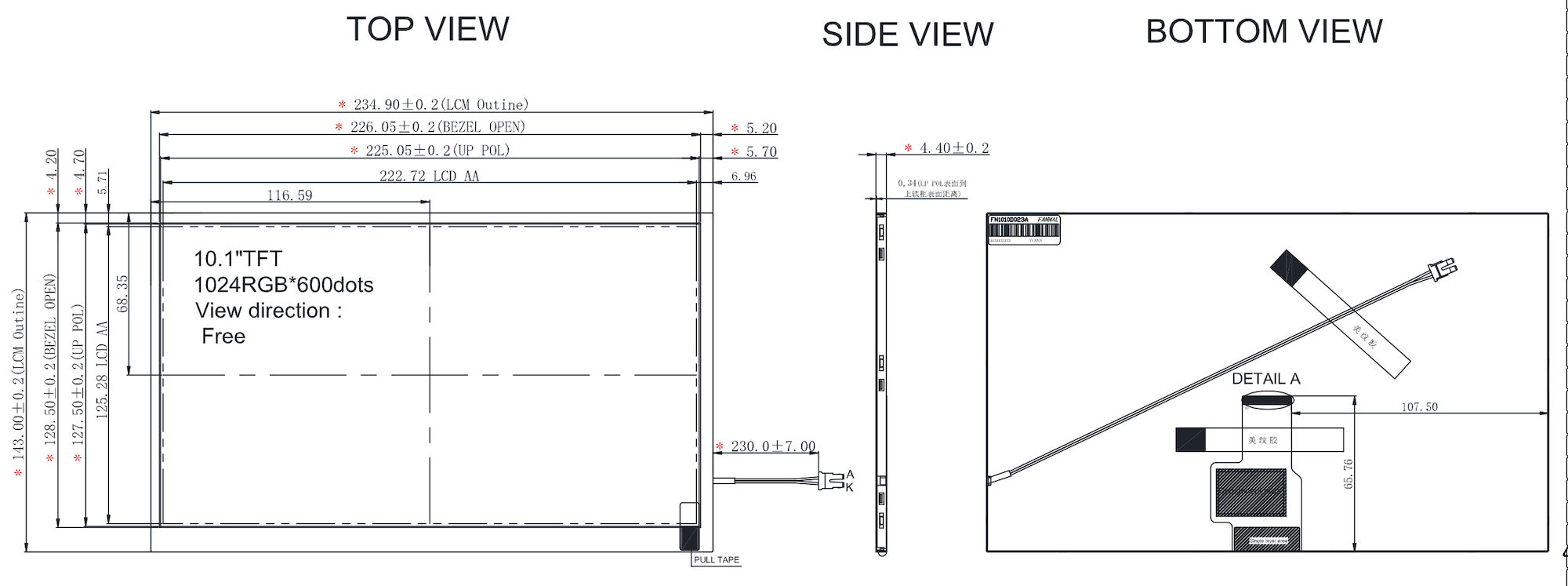

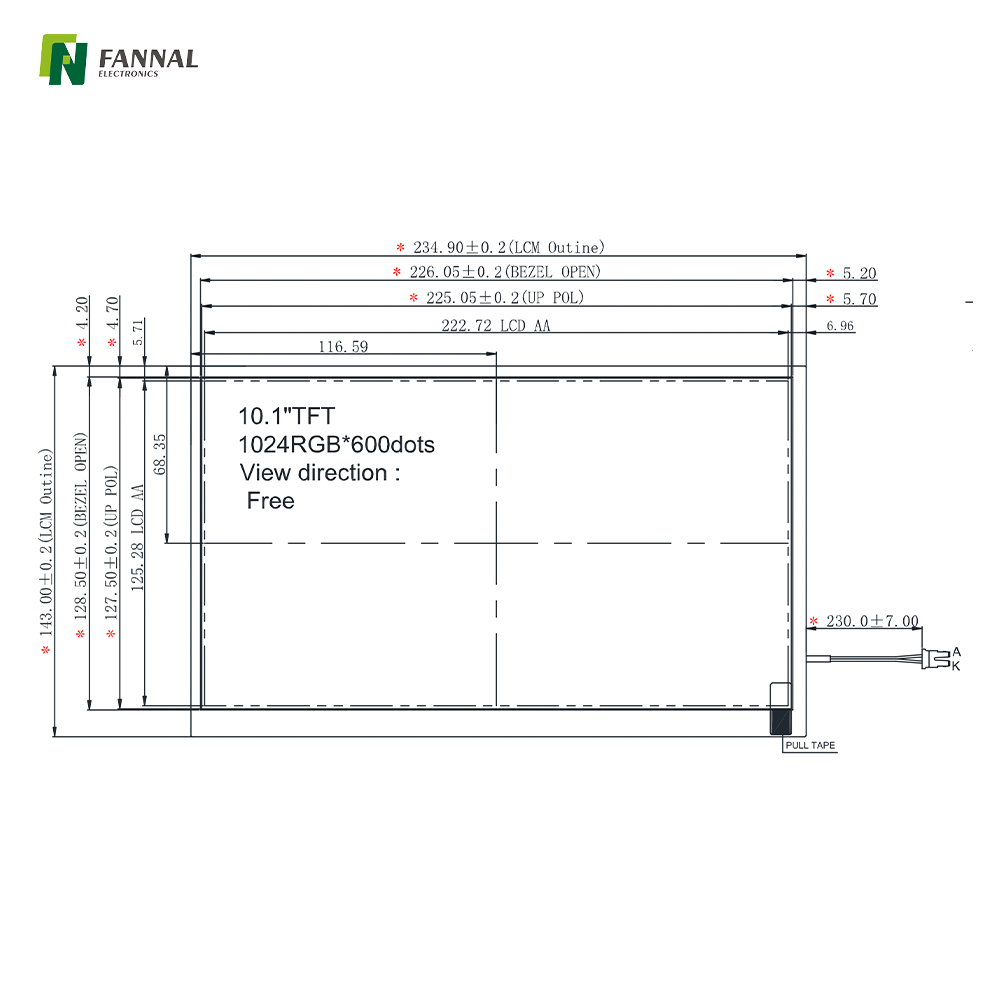

| Outline Dimension | 234.9x143x4.4 | mm |
