P/N:FN1010D022A
Active Area(mm):216.96x135.6
Resolution:1280x800
Viewing Angle:80/80/80/80
Luminance:500
Interface:LVDS
OP ℃: -20~70
ST ℃: -30~80
| Item | Description | Unit |
| LCD Screen Size | 10.1 | inch |
| Active Area | 216.96x135.6 | mm |
| Resolution | 1024x600 | mm |
| Viewing Angle(θT/θB/θL/θR) | 80/80/80/80 | |
| Luminance | 500 | cd/m² |
| Interface | LVDS | |
| TP module | FN1010D022A | |

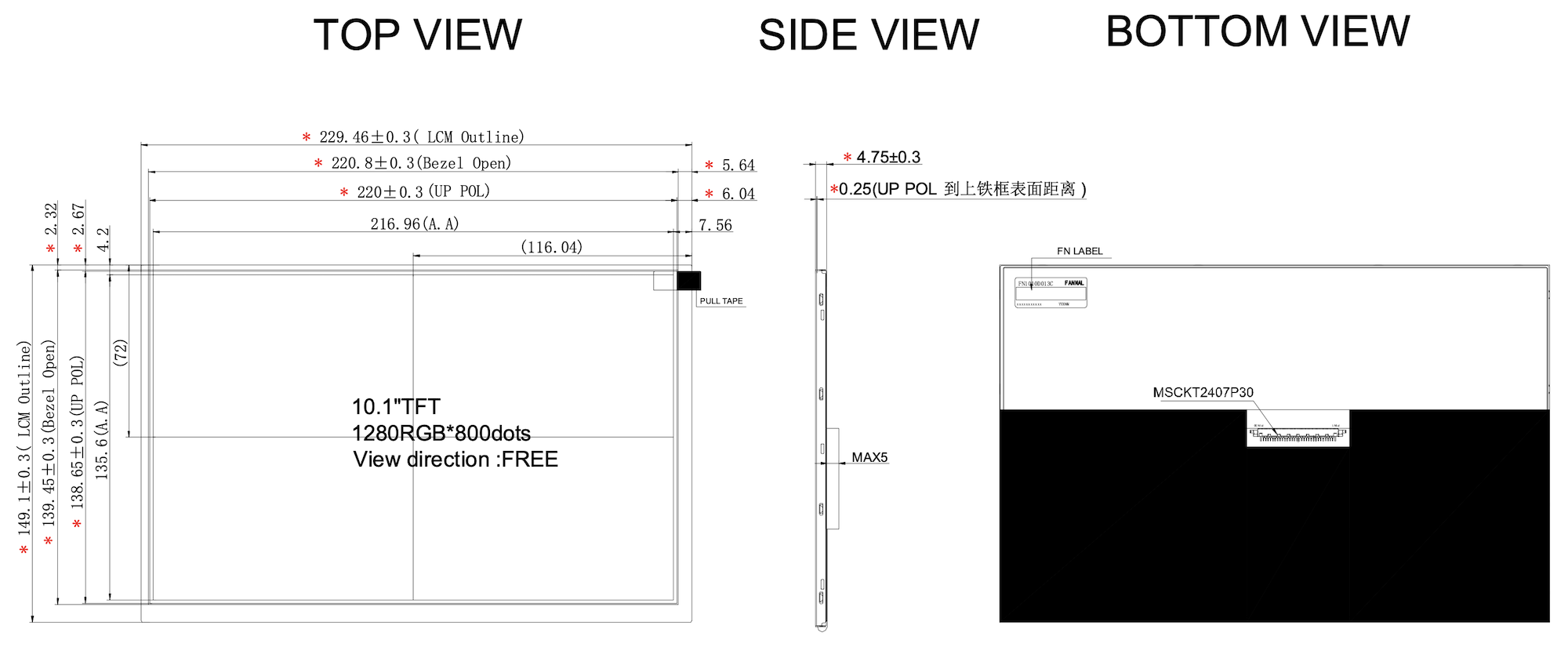

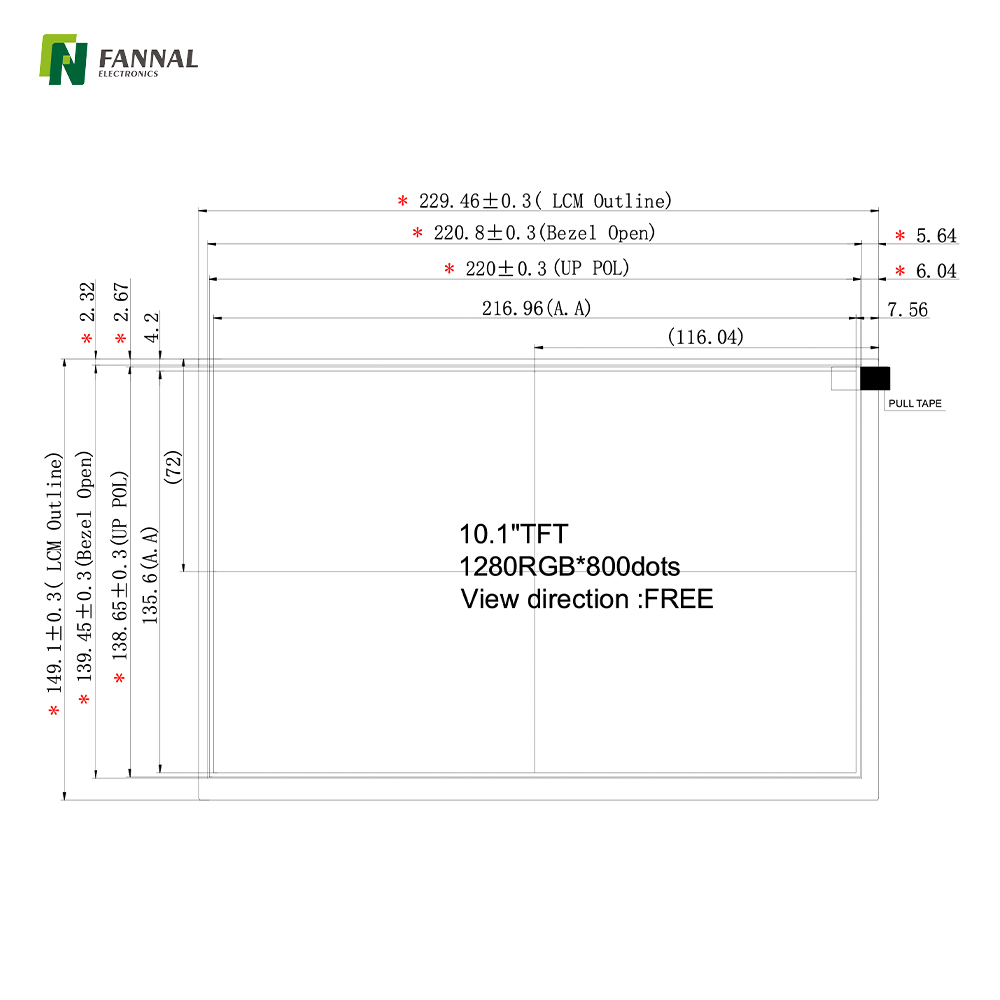

| Outline Dimension | 229.46x149.1x9.75 | mm |
