P/N:FN0900D001A
Active Area(mm):196.608x114.15
Resolution:1024x600
Viewing Angle:85/85/85/85
Luminance:500
Interface:LVDS
OP ℃: -20~70
ST ℃: -30~80
| Item | Description | Unit |
| LCD Screen Size | 9 | inch |
| Active Area | 196.608x114.15 | mm |
| Resolution | 1024x600 | mm |
| Viewing Angle(θT/θB/θL/θR) | 85/85/85/85 | |
| Luminance | 500 | cd/m² |
| Interface | LVDS | |
| TP module | FN0900D001A | |

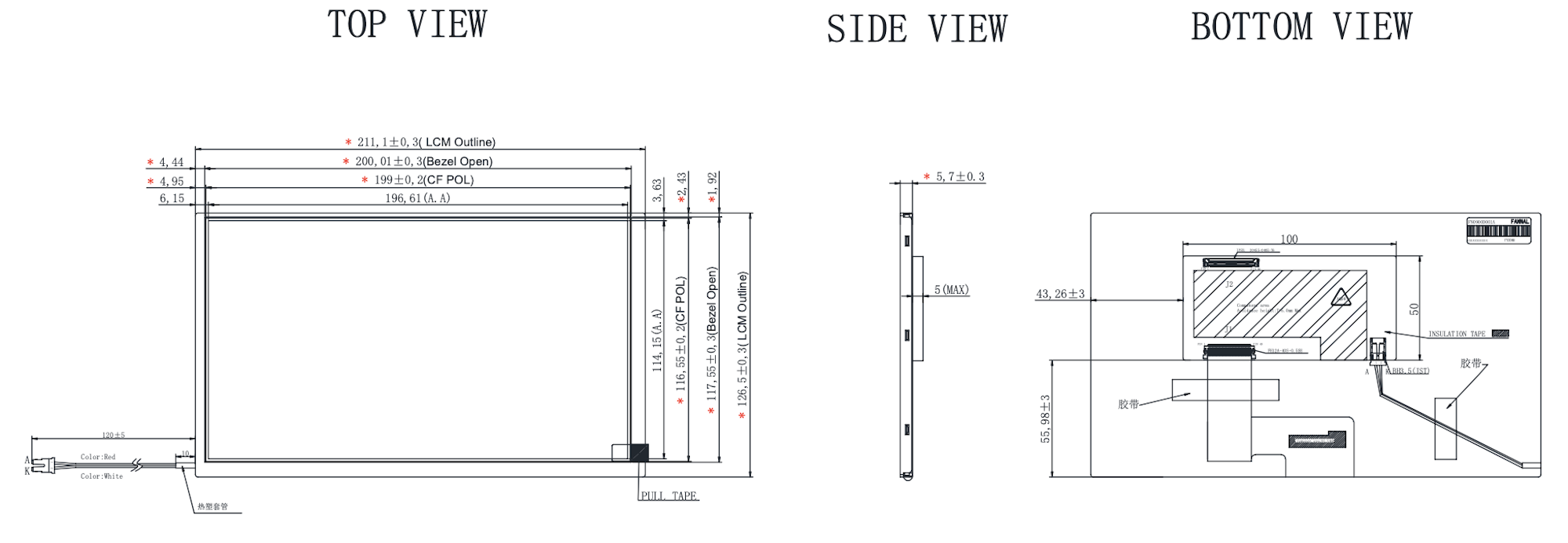

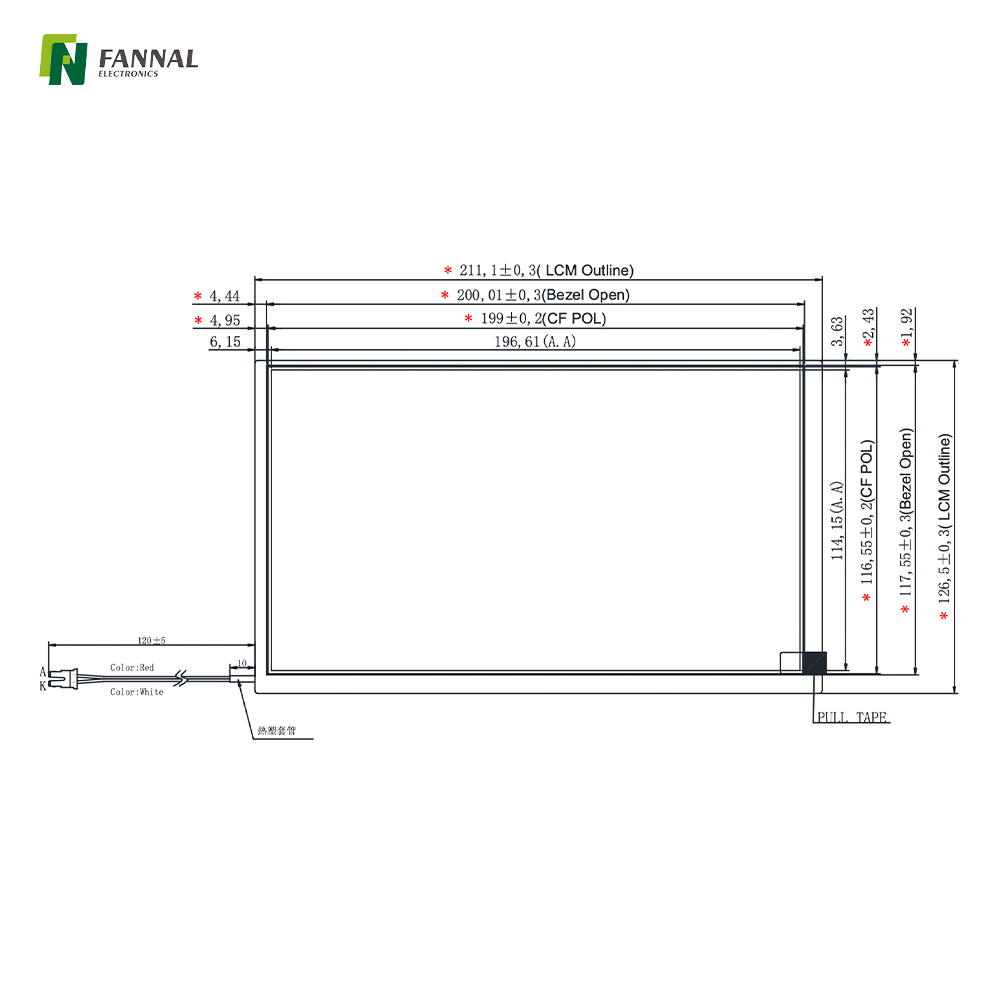

| Outline Dimension | 211.10x126.50x5.7 | mm |
