P/N:FN0800D005A
Active Area(mm):162.05x121.54
Resolution:1024x768
Viewing Angle:80/80/80/80
Luminance:600
Interface:LVDS
OP ℃: -10~50
ST ℃: -20~60
| Item | Description | Unit |
| LCD Screen Size | 8 | inch |
| Active Area | 162.05x121.54 | mm |
| Resolution | 1024x768 | mm |
| Viewing Angle(θT/θB/θL/θR) | 80/80/80/80 | |
| Luminance | 600 | cd/m² |
| Interface | LVDS | |
| TP module | FN0800D005A | |

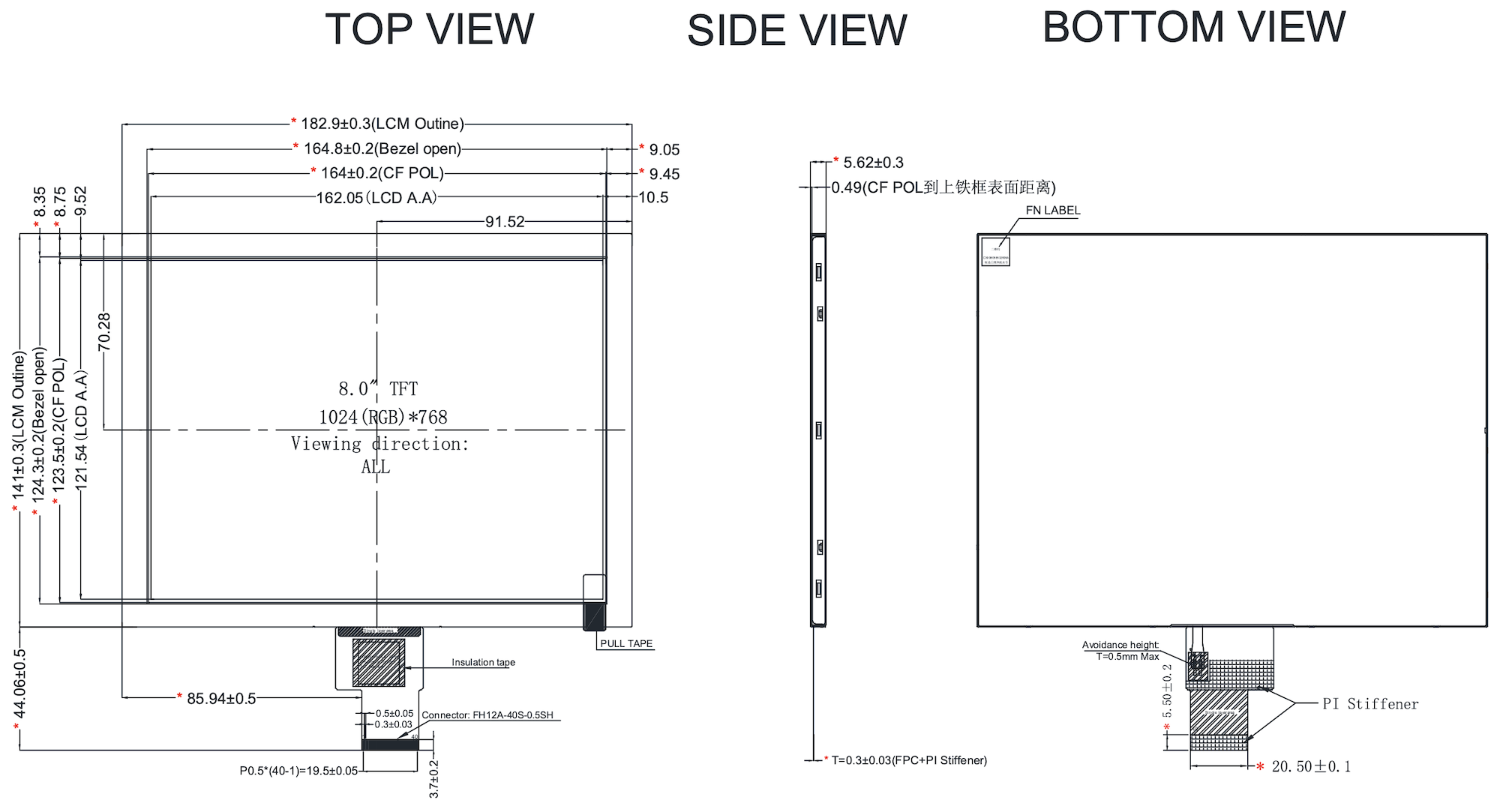

| Outline Dimension | 182.9x141.0x5.62 | mm |
