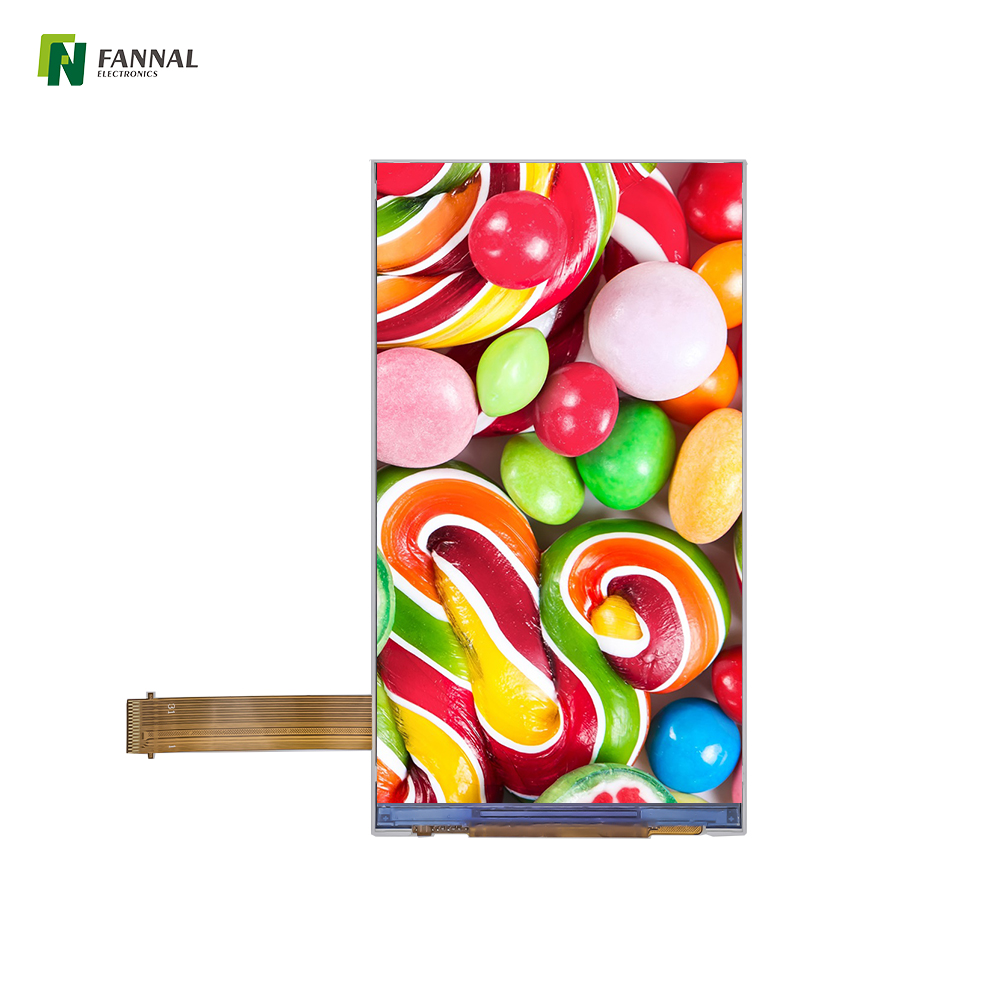

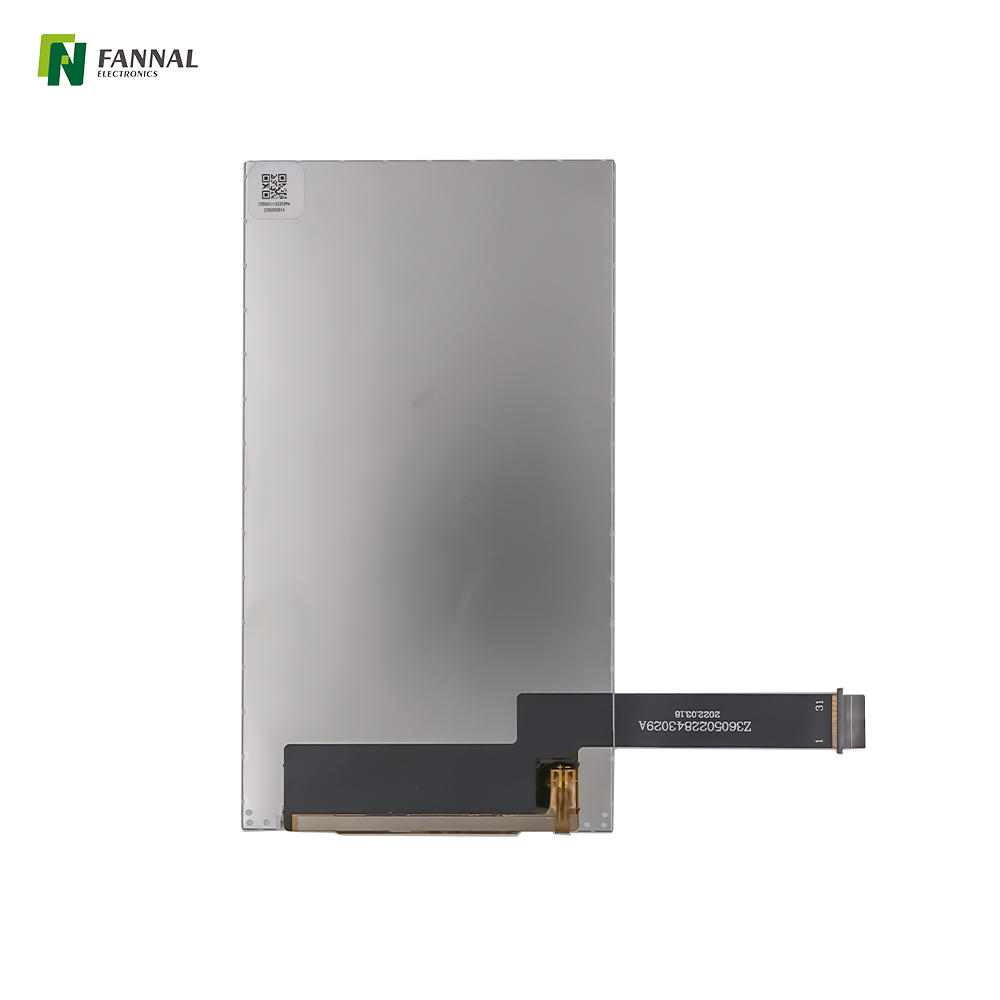

5-inch Industrial TFT LCD,720x1280,400cd/m2, 31PIN MIPI

FN0500D029A IPS TFT LCD

P/N:FN0500D029A

Active Area(mm):62.1x110.4

Resolution:720x1280

Viewing Angle:85/85/85/85

Luminance:400

Interface: MIPI

OP ℃: -20~70

ST ℃: -30~80

Specification Download

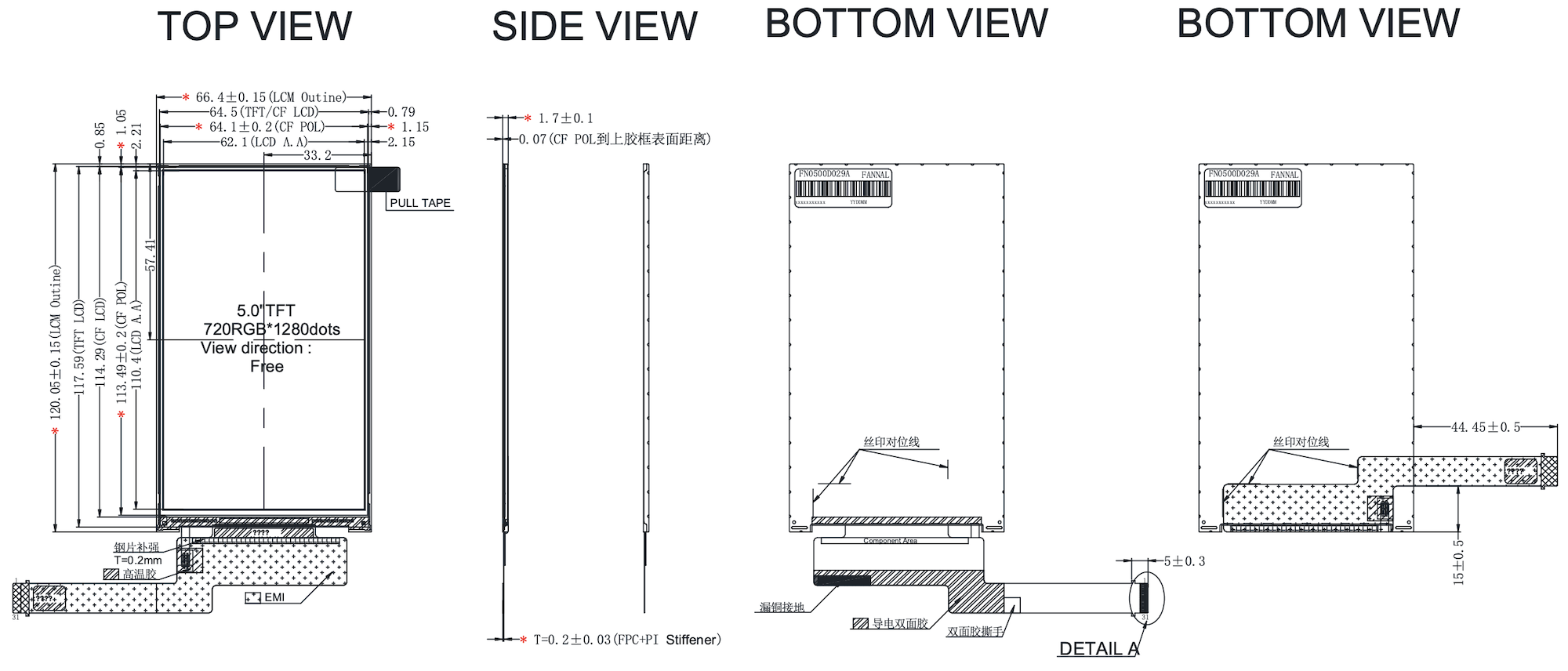

Specification drawing Specification

Product specification

Features :

IPS TFT Display

Add-Ons-CTP /AD Board

We can provide complete accessories, including CTP and backlight board, AD Board and wire sets.

Mechanical characteristics:

Item	Description	Unit
LCD Screen Size	5	inch
Active Area	62.1x110.4	mm
Resolution	720x1280	mm
Viewing Angle(θT/θB/θL/θR)	85/85/85/85
Luminance	400	cd/m²
Interface	MIPI
TP module	FN0500D029A
Outline Dimension	66.4x120.05x1.7	mm
