3.5-inch Industrial TFT LCD,320x240,600cd/m2, 40PIN MCU

FN0350D020A IPS TFT LCD

P/N:FN0350D020A

Active Area(mm):70.08x52.56

Resolution:320x240

Viewing Angle:80/80/80/80

Luminance:600

Interface: MCU

OP ℃: -20~70

ST ℃: -30~80

Specification Download

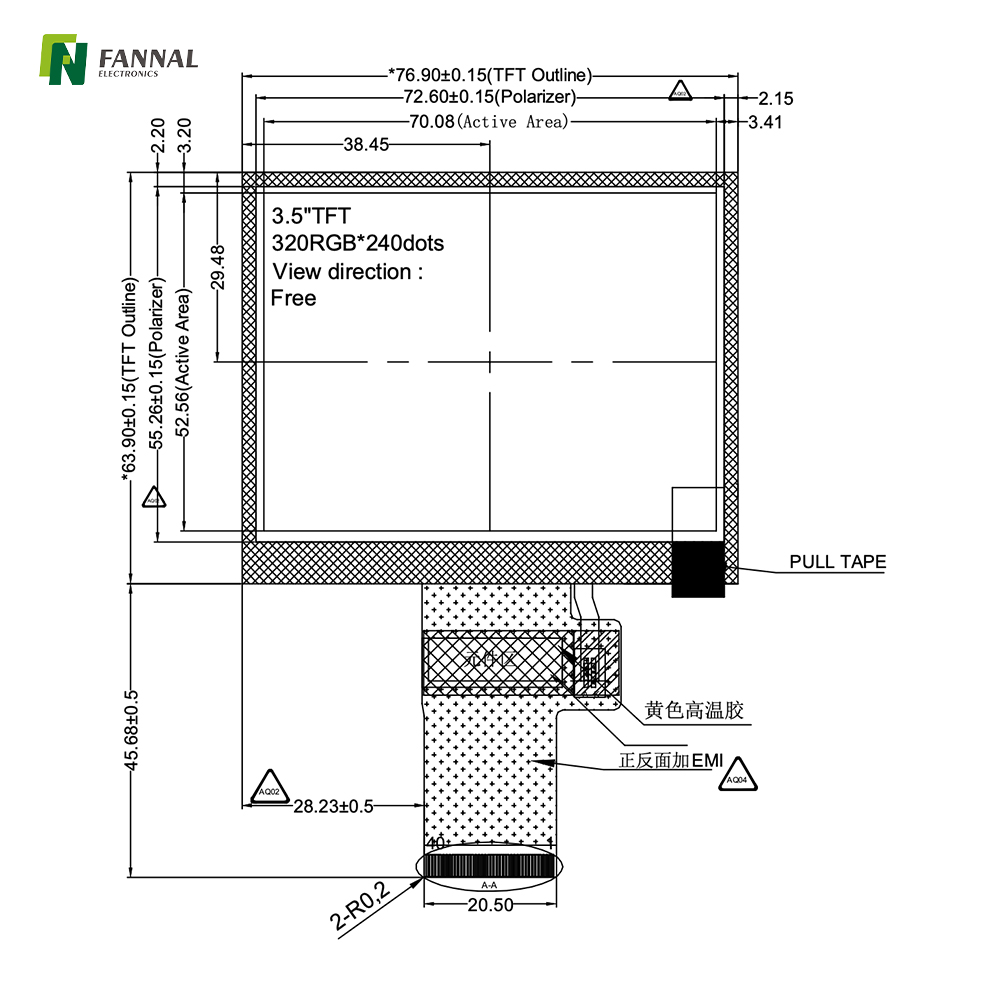

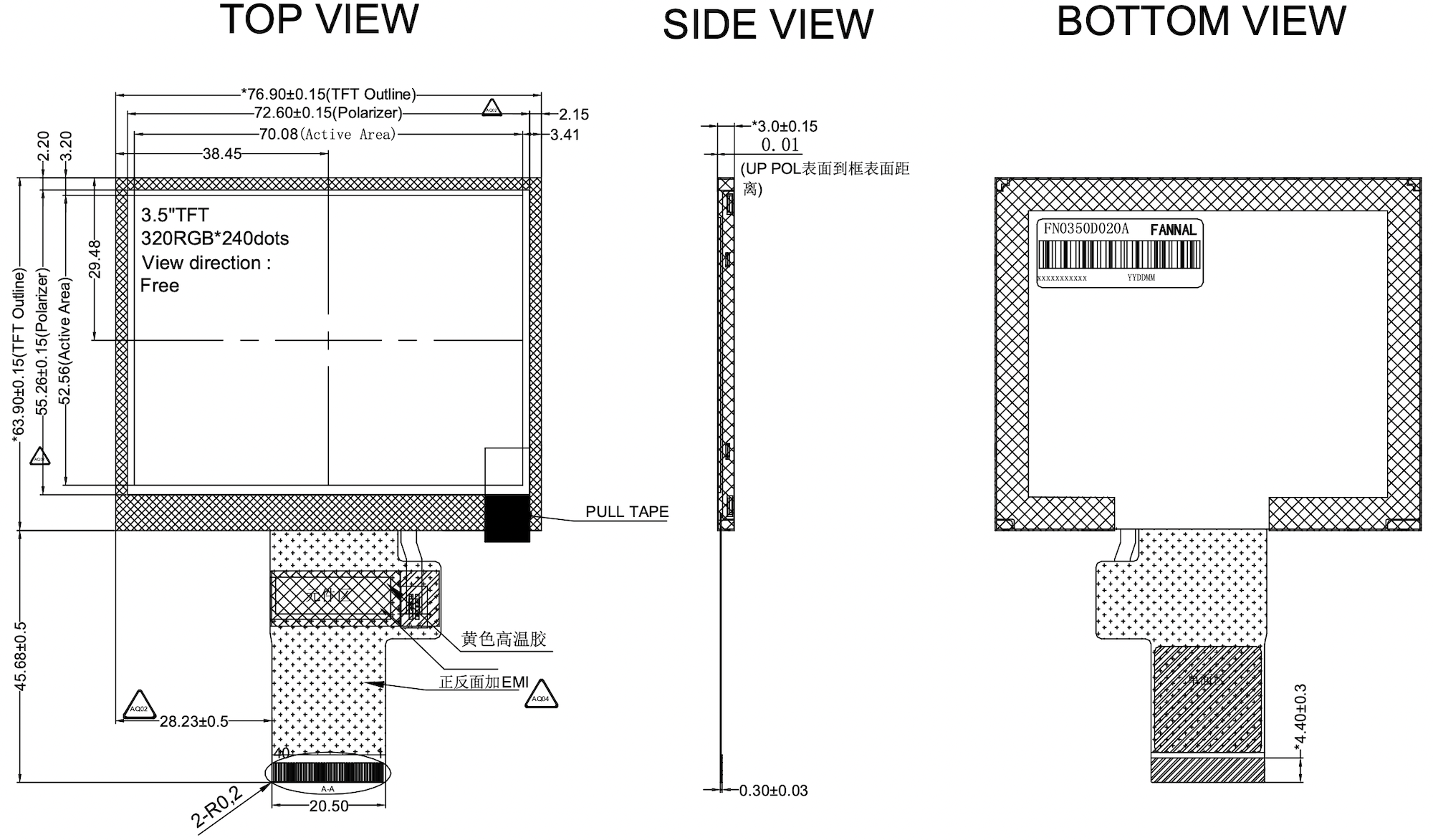

Specification drawing Specification

Product specification

Features :

IPS TFT Display

Add-Ons-CTP /AD Board

We can provide complete accessories, including CTP and backlight board, AD Board and wire sets.

Mechanical characteristics:

Item	Description	Unit
LCD Screen Size	3.5	inch
Active Area	70.08x52.56	mm
Resolution	320x240	mm
Viewing Angle(θT/θB/θL/θR)	80/80/80/80
Luminance	600	cd/m²
Interface	MCU
TP module	FN0350D020A
Outline Dimension	76.9x63.9x3.05	mm
