3.5-inch Industrial TFT LCD,320x480,350cd/m2, 40PIN MCU/SPI

FN0350D018A IPS TFT LCD

P/N:FN0350D018A

Active Area(mm):48.96x73.44

Resolution: 320x480

Viewing Angle:80/80/80/80

Luminance:350

Interface: MCU/SPI

OP ℃: -20~70

ST ℃: -30~80

Specification Download

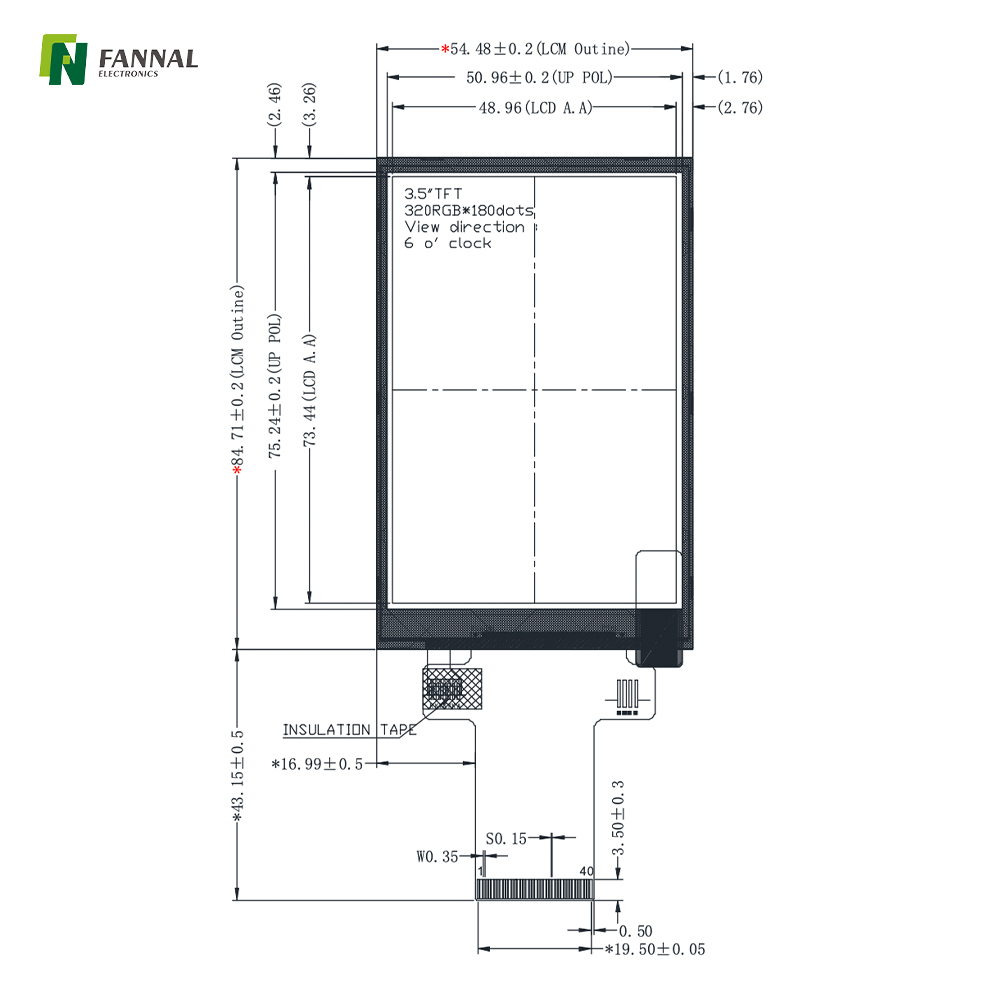

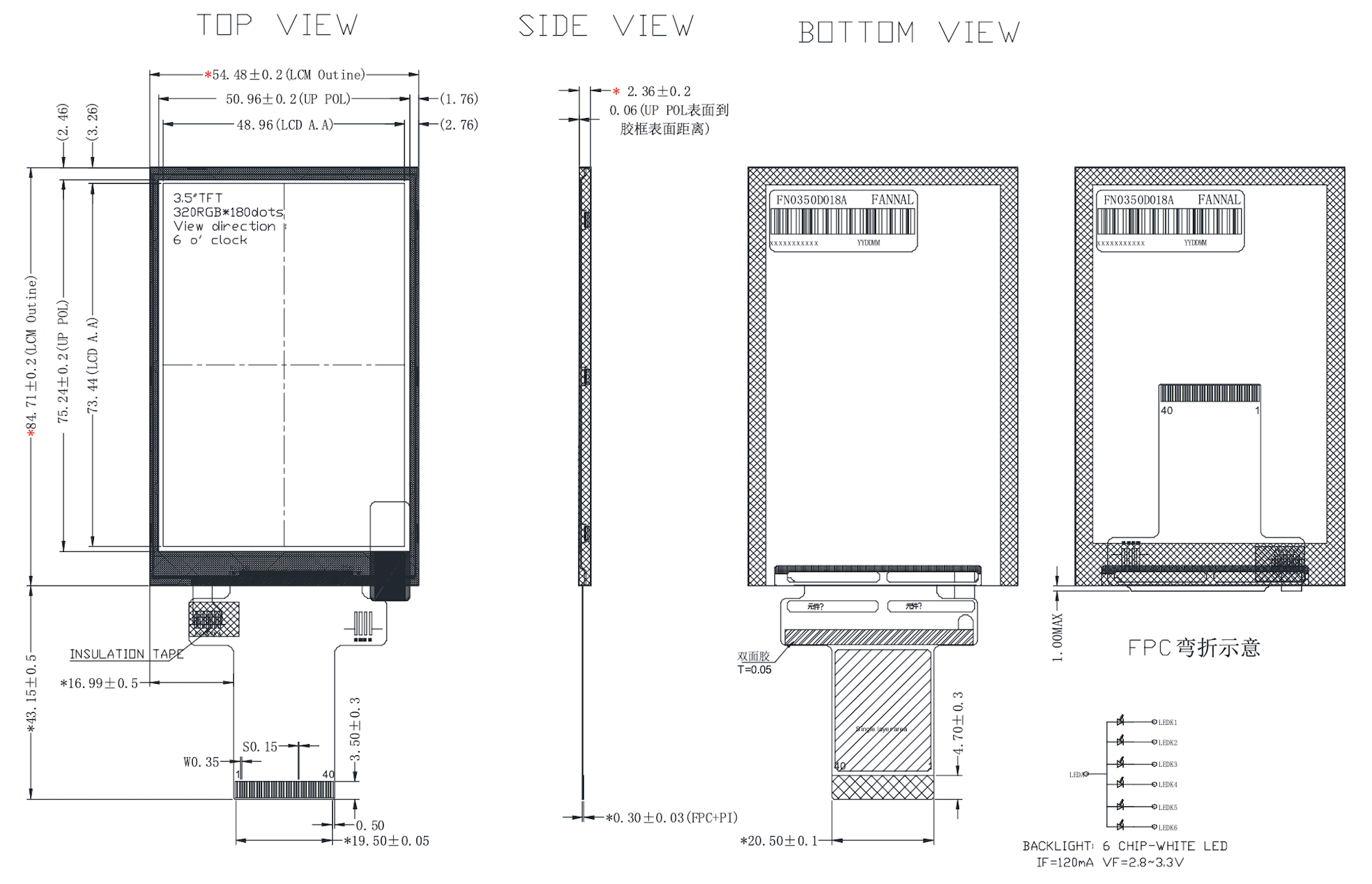

Specification drawing Specification

Product specification

Features :

IPS TFT Display

Add-Ons-CTP /AD Board

We can provide complete accessories, including CTP and backlight board, AD Board and wire sets.

Mechanical characteristics:

Item	Description	Unit
LCD Screen Size	3.5	inch
Active Area	48.96x73.44	mm
Resolution	320x480	mm
Viewing Angle(θT/θB/θL/θR)	80/80/80/80
Luminance	350	cd/m²
Interface	MCU/SPI
TP module	FN0350D018A
Outline Dimension	54.48x84.71x2.36	mm
