11.8-inch Industrial TFT LCD,1200x1600, High Brightness ,750cd/m2, 40PINS LVDS

FN1180W001A wide temp

P/N:FN1180W001A

Active Area(mm):180.0x240.0

Resolution: 1200x1600

Viewing Angle:85/85/85/85

Luminance: 750

Interface: LVDS

OP ℃: -30~85

ST ℃: -40~95

Specification Download

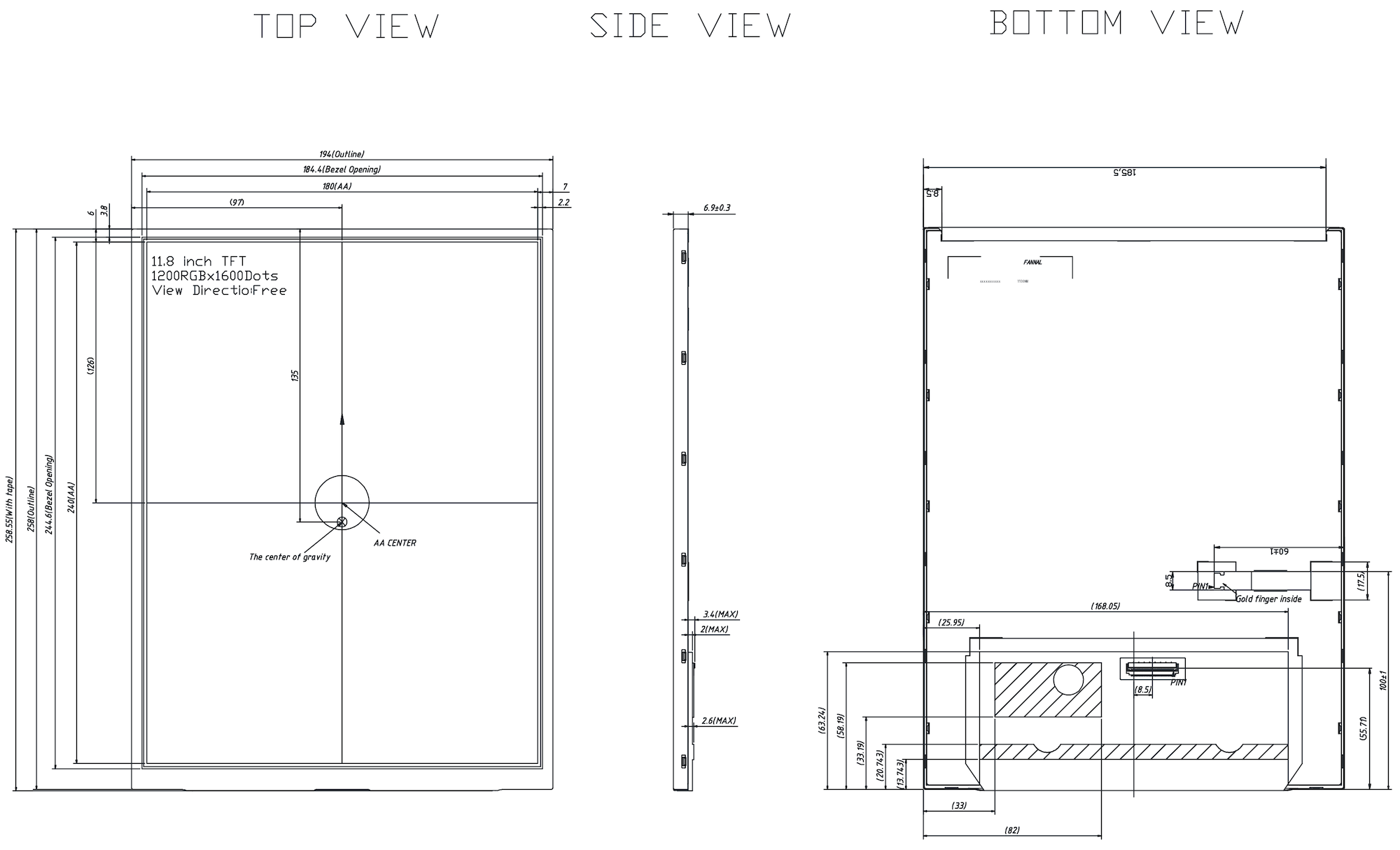

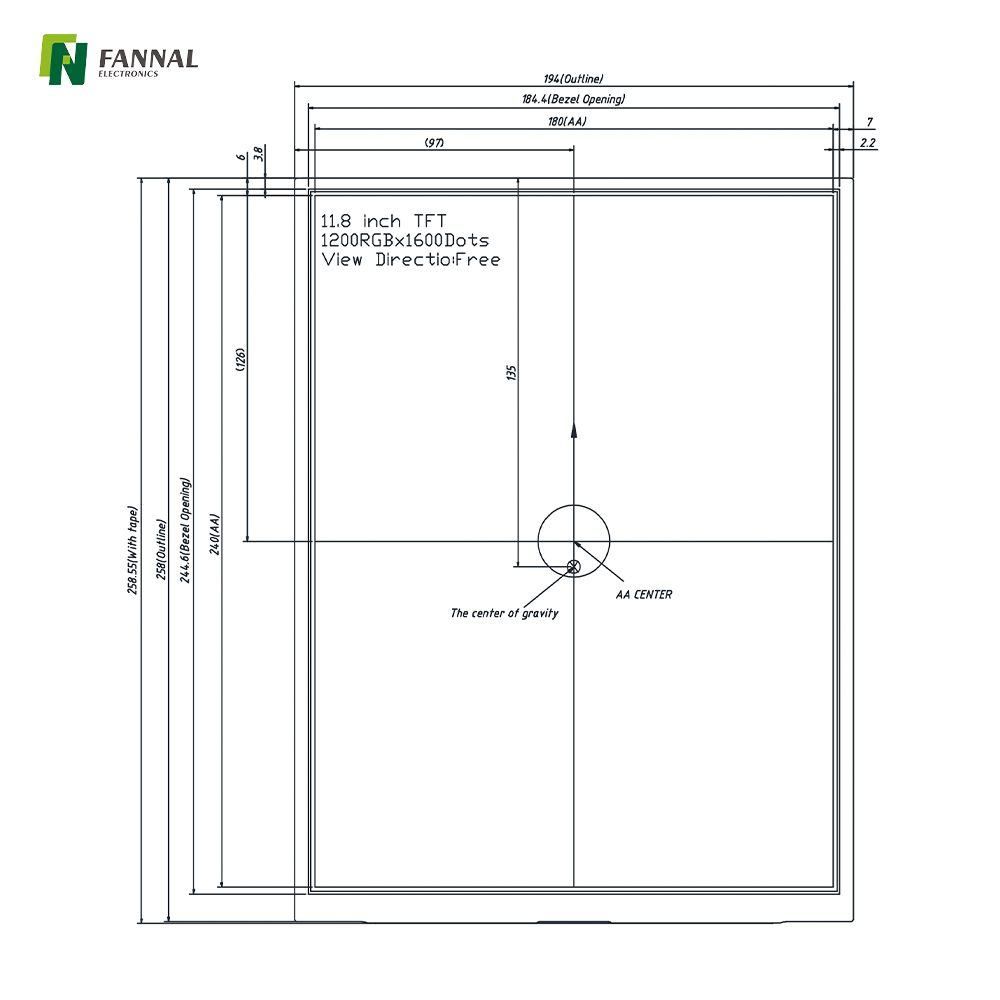

Specification drawing Specification

Product specification

Features :

Wide temperature TFT display

Add-Ons-CTP /AD Board

We can provide complete accessories, including CTP and backlight board, AD Board and wire sets.

Mechanical characteristics:

Item	Description	Unit
LCD Screen Size	11.8	inch
Active Area	180.0x240.0	mm
Resolution	1200x1600	mm
Viewing Angle(θT/θB/θL/θR)	85/85/85/85
Luminance	750	cd/m²
Interface	LVDS
TP module	FN1180W001A
Outline Dimension	194.0x258.55x10.6	mm
