FN1025D003A wide temp


Active Area(mm):106.92×237.6

Resolution: 720x1600

Viewing Angle: 85/85/85/85

Luminance: 600

Interface: MIPI

OP ℃: -30~80

ST ℃: -30~80

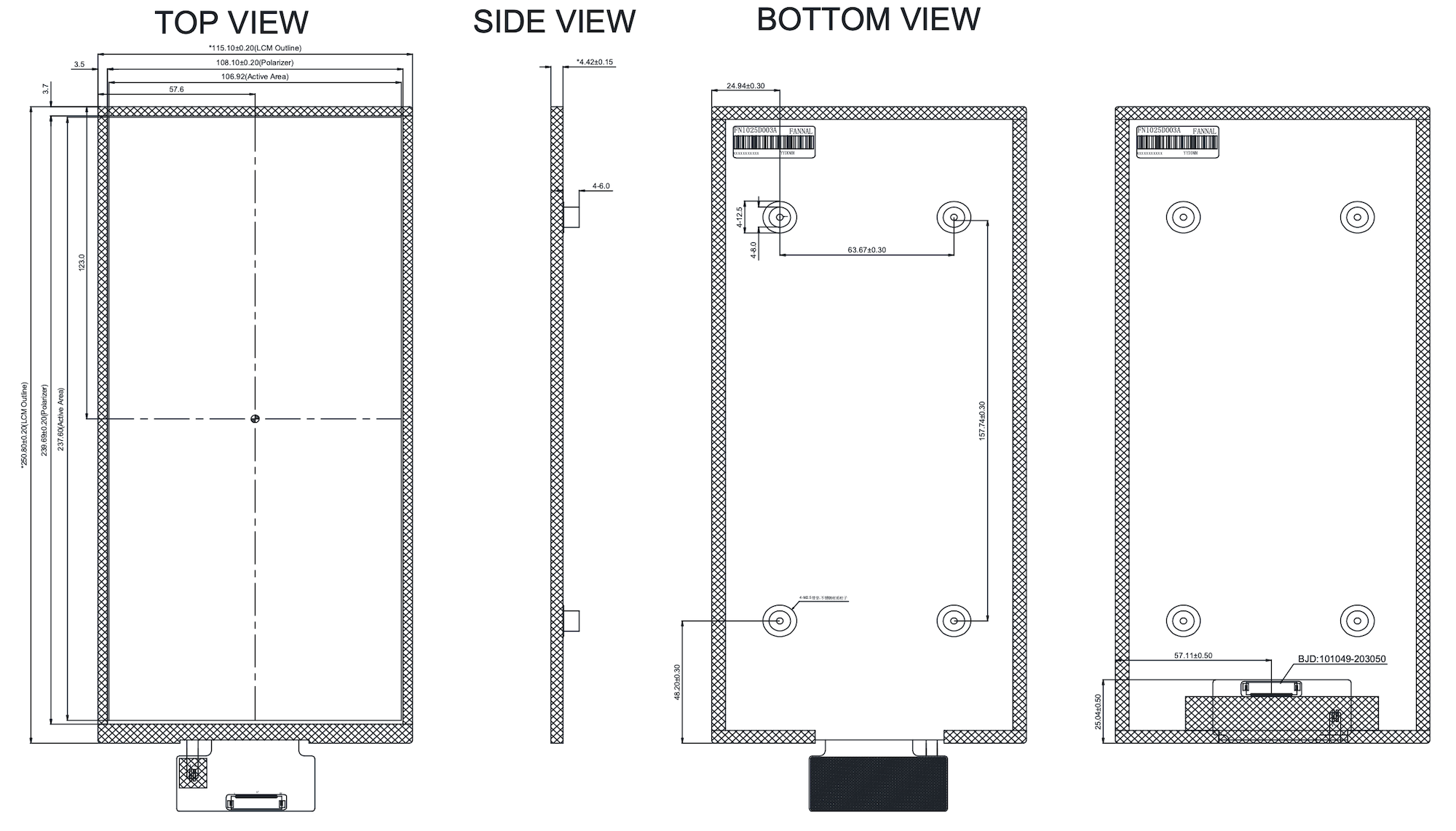

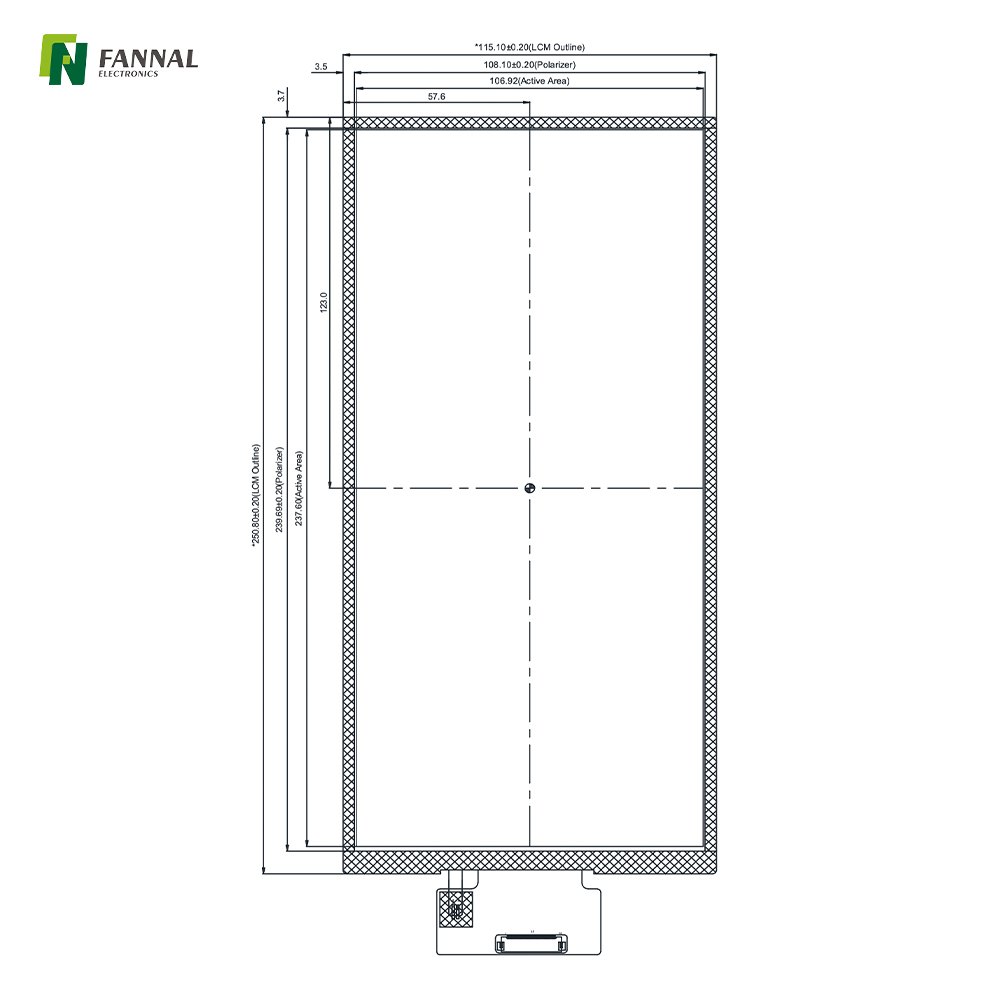

Specification drawing Specification

Product specification
Features :
Wide temperature TFT display

Add-Ons-CTP /AD Board

We can provide complete accessories, including CTP and backlight board, AD Board and wire sets.

Mechanical characteristics:
Item Description Unit
LCD Screen Size 10.25 inch
Active Area 106.92×237.6 mm
Resolution 720x1600 mm
Viewing Angle(θT/θB/θL/θR) 85/85/85/85
Luminance 600  cd/m²
Interface MIPI
TP module FN1025D003A
Outline Dimension 115.1×250.8×10.4  mm
