P/N: FN0700D074A
Active Area(mm): 152.21x85.92
Resolution: 1024x600
Viewing Angle: 80/80/80/80
Luminance: 1600
Interface: LVDS
OP ℃: -30~85
ST ℃: -40~90
| Item | Description | Unit |
| LCD Screen Size | 7 | inch |
| Active Area | 152.21x85.92 | mm |
| Resolution | 1024x600 | mm |
| Viewing Angle(θT/θB/θL/θR) | 80/80/80/80 | |
| Luminance | 1600 | cd/m² |
| Interface | LVDS | |
| TP module | FN0700D074A | |

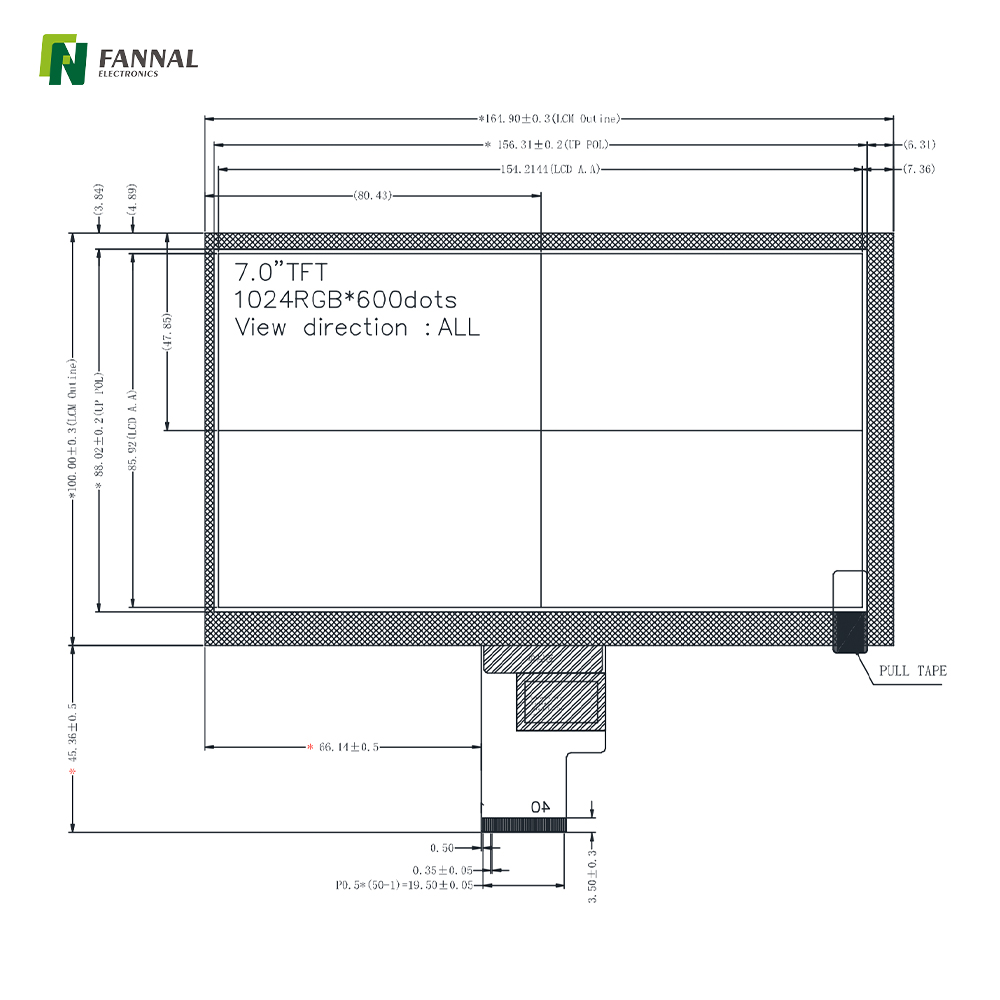

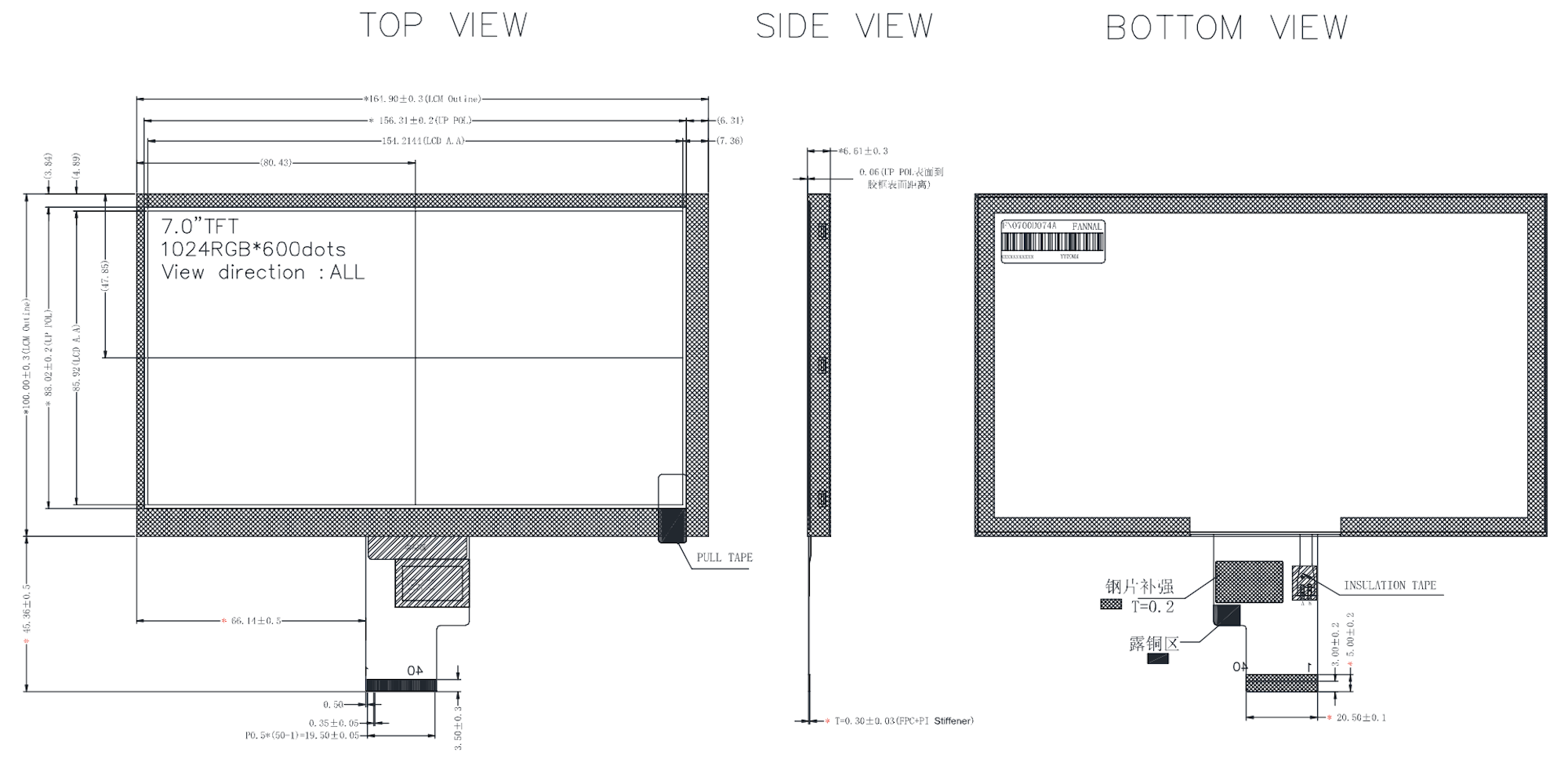

| Outline Dimension | 164.9x100.0x6.6 | mm |
