7-inch Industrial TFT LCD,1024x600, High Brightness ,1200cd/m2, 40PINS LVDS

FN0700D052A high brightness

P/N: FN0700D052A

Active Area(mm): 154.21x85.92

Resolution: 1024x600

Viewing Angle: 85/85/85/85

Luminance:1200

Interface: LVDS

OP ℃: -20~70

ST ℃: -30~80

Specification Download

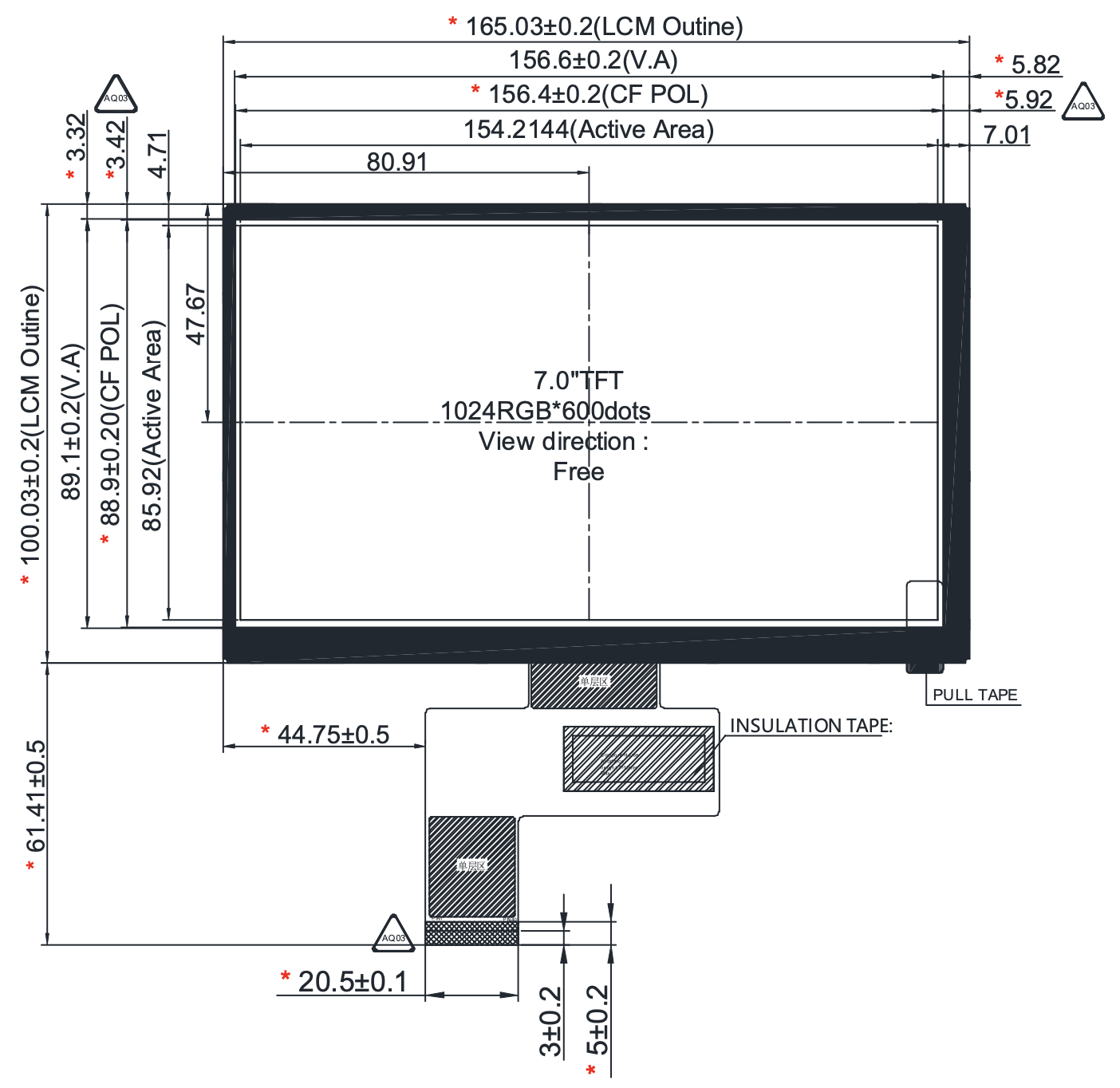

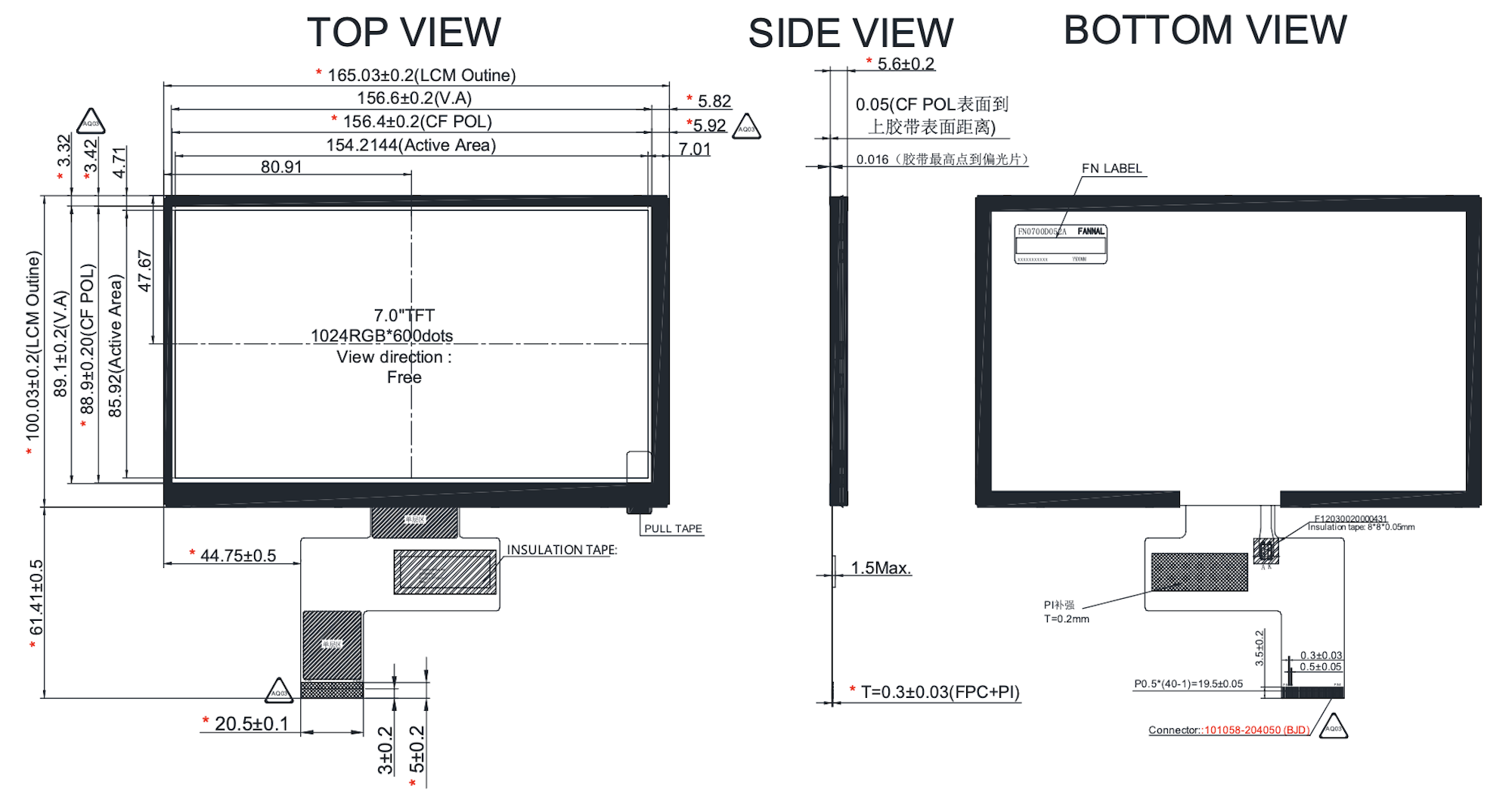

Specification drawing Specification

Product specification

Features :

High brightness TFT display

Add-Ons-CTP /AD Board

We can provide complete accessories, including CTP and backlight board, AD Board and wire sets.

Mechanical characteristics:

Item	Description	Unit
LCD Screen Size	7	inch
Active Area	154.21x85.92	mm
Resolution	1024x600	mm
Viewing Angle(θT/θB/θL/θR)	85/85/85/85
Luminance	1200	cd/m²
Interface	LVDS
TP module	FN0700D052A
Outline Dimension	165.03X100.03X5.6	mm
