FN0700D050A wide temp high brightness

P/N: FN0700D050A

Active Area(mm): 152.4x91.44

Resolution: 800x480

Viewing Angle: 80/80/80/80

Luminance: 1000

Interface: LVDS

OP ℃: -30~85

ST ℃: -30~85

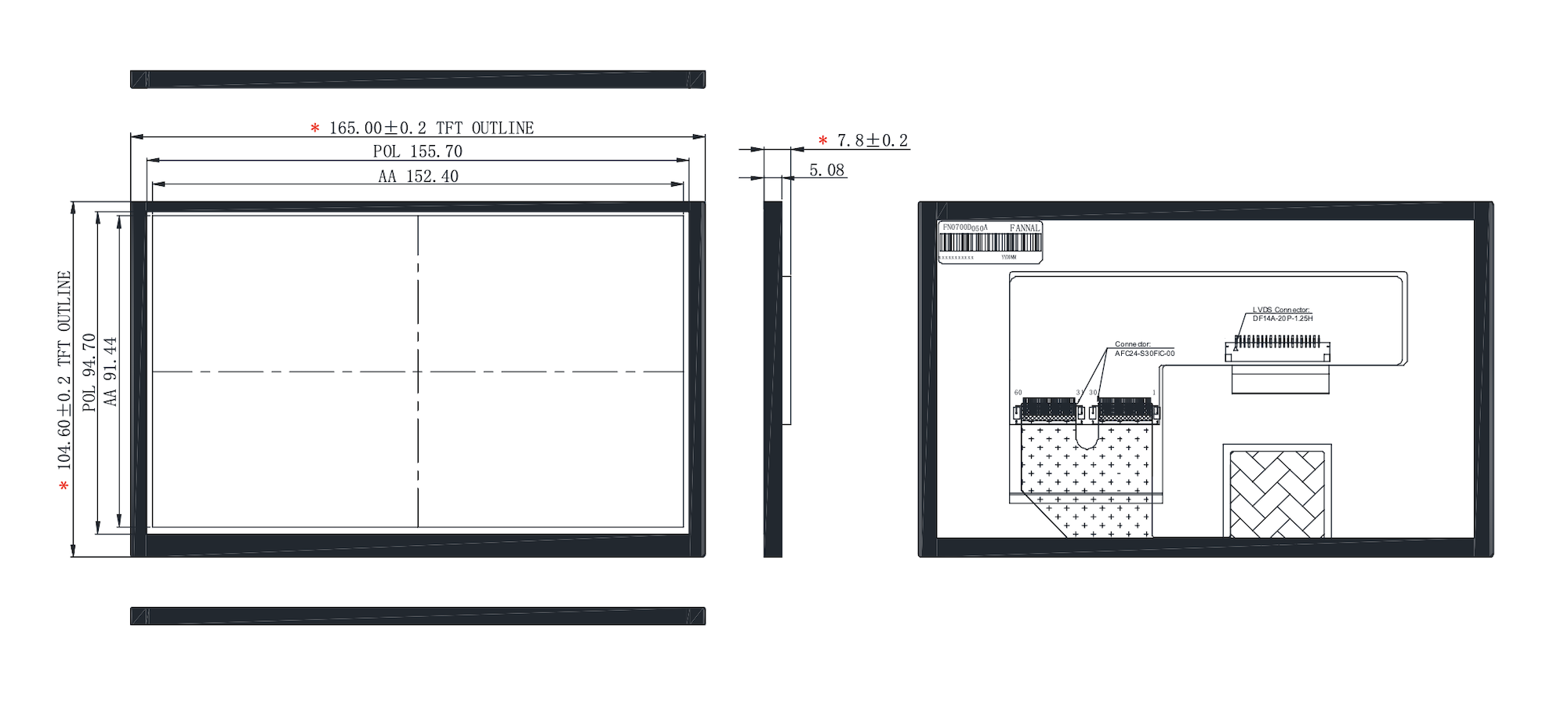

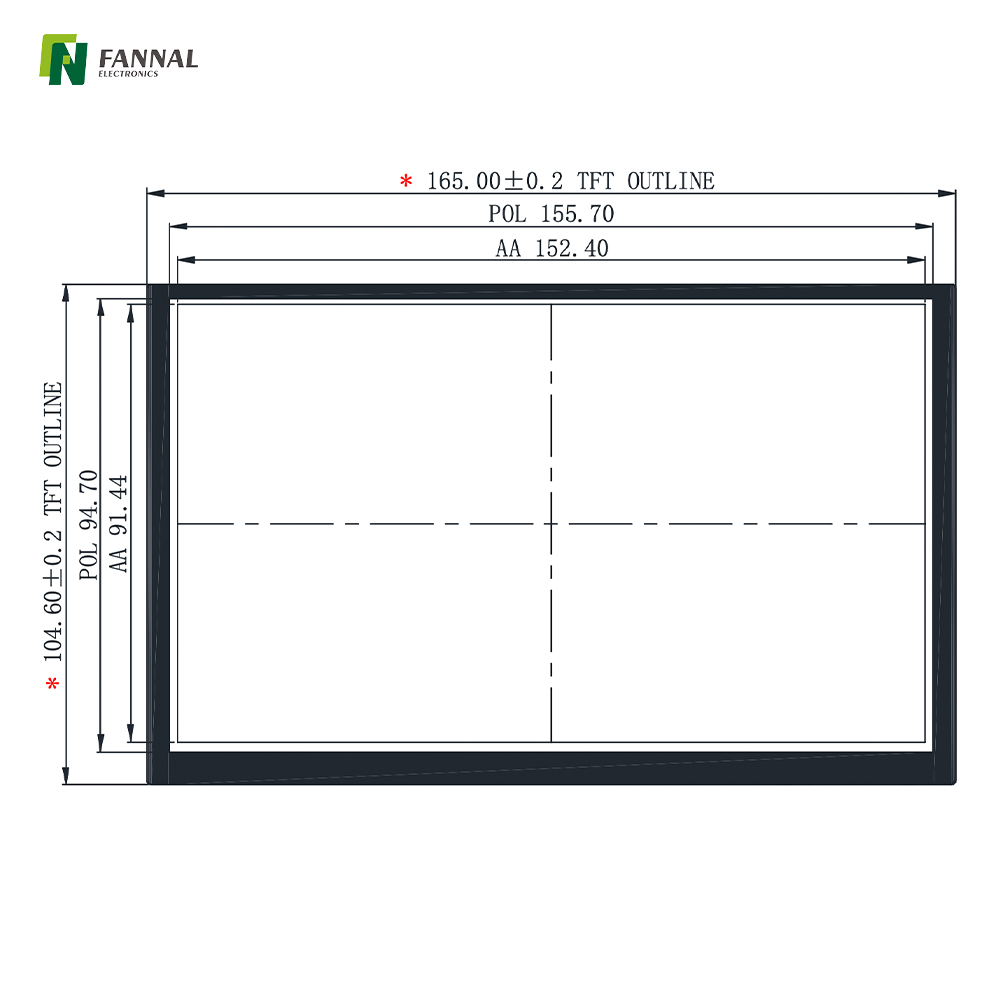

Specification drawing Specification

Product specification
Features :
Wide temperature TFT display

Add-Ons-CTP /AD Board

We can provide complete accessories, including CTP and backlight board, AD Board and wire sets.

Mechanical characteristics:
Item Description Unit
LCD Screen Size 7 inch
Active Area 152.4x91.44 mm
Resolution 800x480 mm
Viewing Angle(θT/θB/θL/θR) 80/80/80/80
Luminance 1000  cd/m²
Interface LVDS
TP module FN0700D050A
 Outline Dimension 165.0x104.6x7.8  mm
