FN0700D045B high brightness

P/N: FN0700D045B

Active Area(mm): 154.21x85.92

Resolution: 1024x600

Viewing Angle: 85/85/85/85

Luminance: 1200

Interface: LVDS

OP ℃: -20~70

ST ℃: -30~80

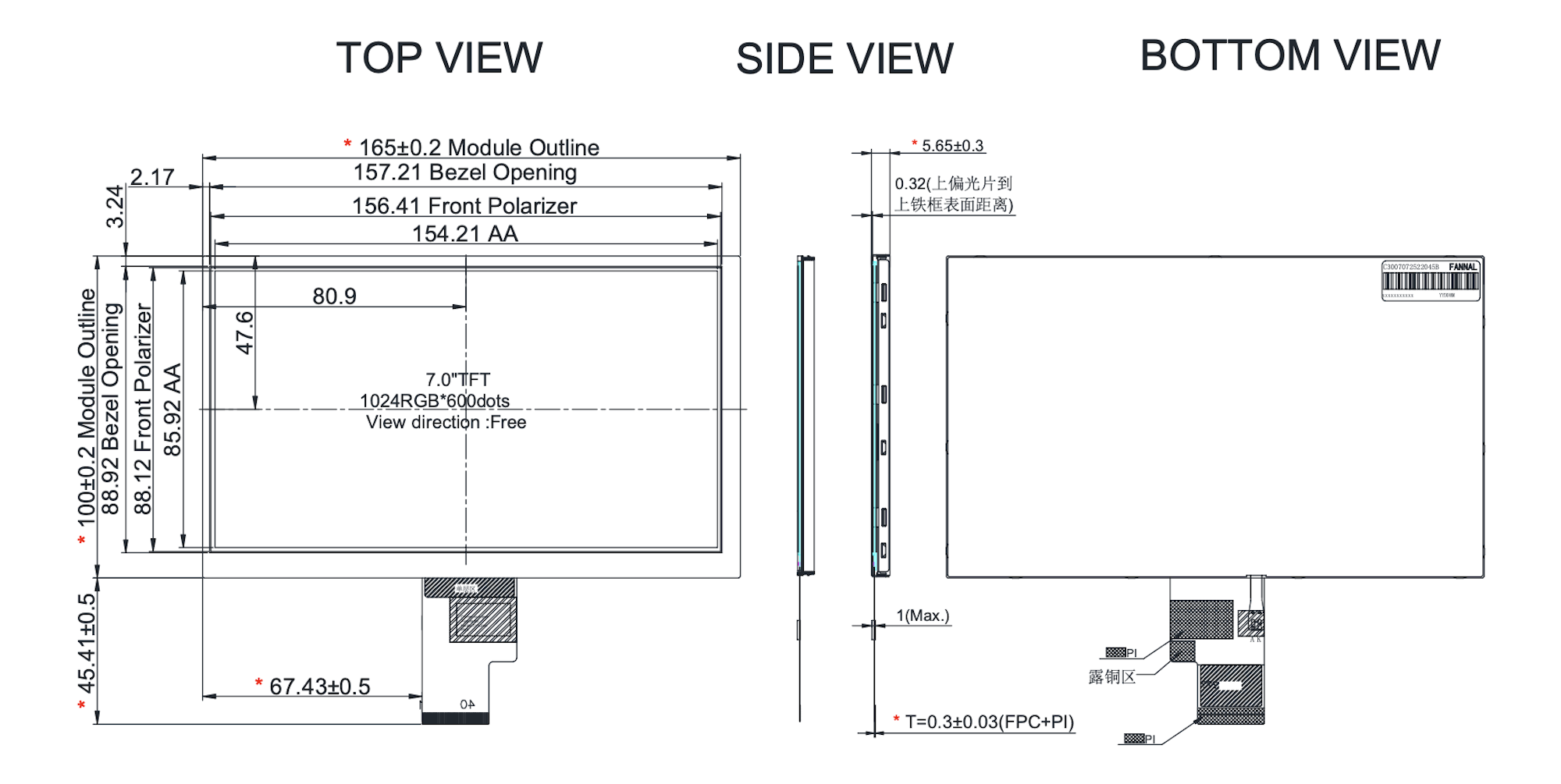

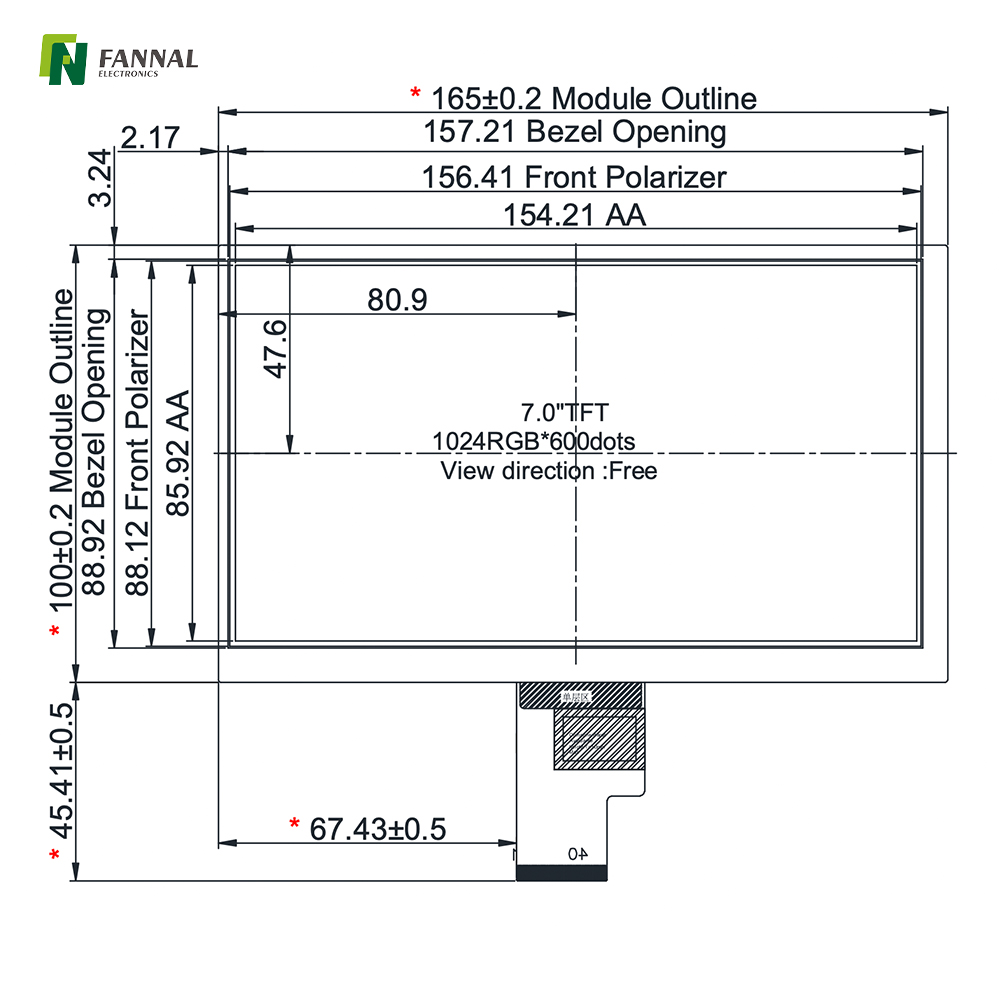

Specification drawing Specification

Product specification
Features :
High brightness TFT display

Add-Ons-CTP /AD Board

We can provide complete accessories, including CTP and backlight board, AD Board and wire sets.

Mechanical characteristics:
Item Description Unit
LCD Screen Size 7 inch
Active Area 154.21x85.92 mm
Resolution 1024x600 mm
Viewing Angle(θT/θB/θL/θR) 85/85/85/85
Luminance 1200  cd/m²
Interface LVDS
TP module FN0700D045B
 Outline Dimension 165.0x100.0x5.65  mm
