7-inch TFT LCD, 800x480, IPS LCD, 800cd/m², 60PINS, RGB

FN0700D022A wide temp high brightness

P/N: FN0700D022A

Active Area(mm): 152.4x91.44

Resolution: 800x480

Viewing Angle: 80/80/80/80

Luminance: 1000

Interface: RGB

OP ℃: -30~85

ST ℃: -40~90

Specification Download

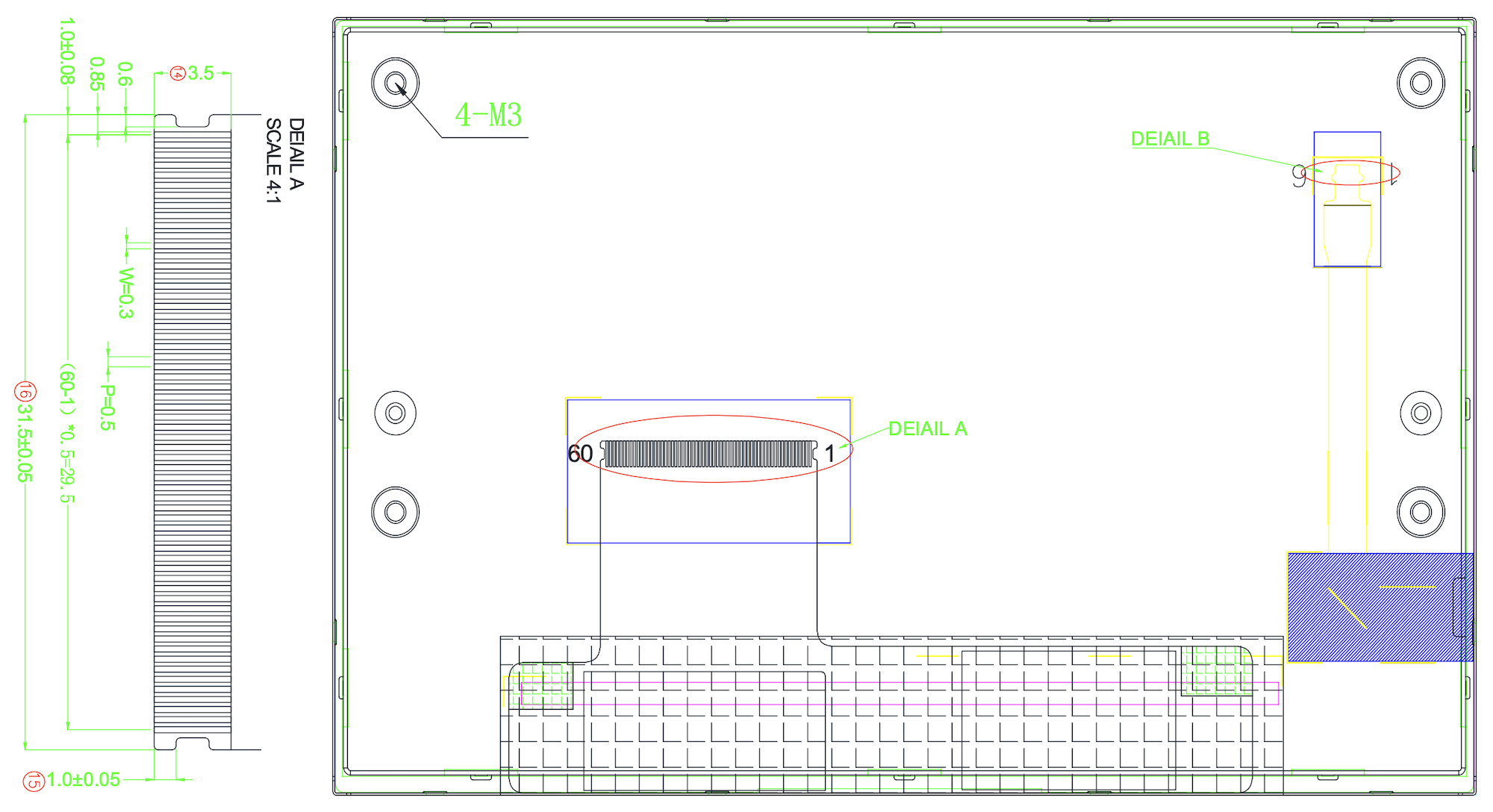

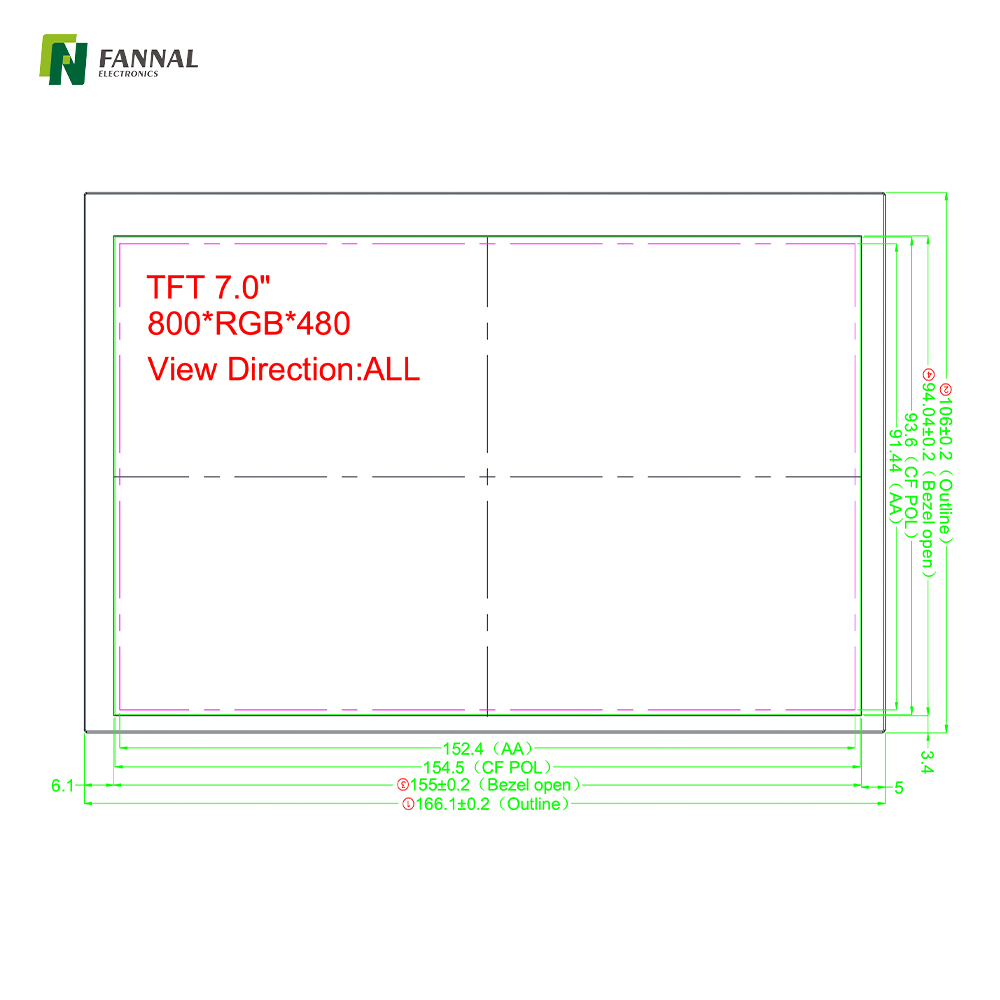

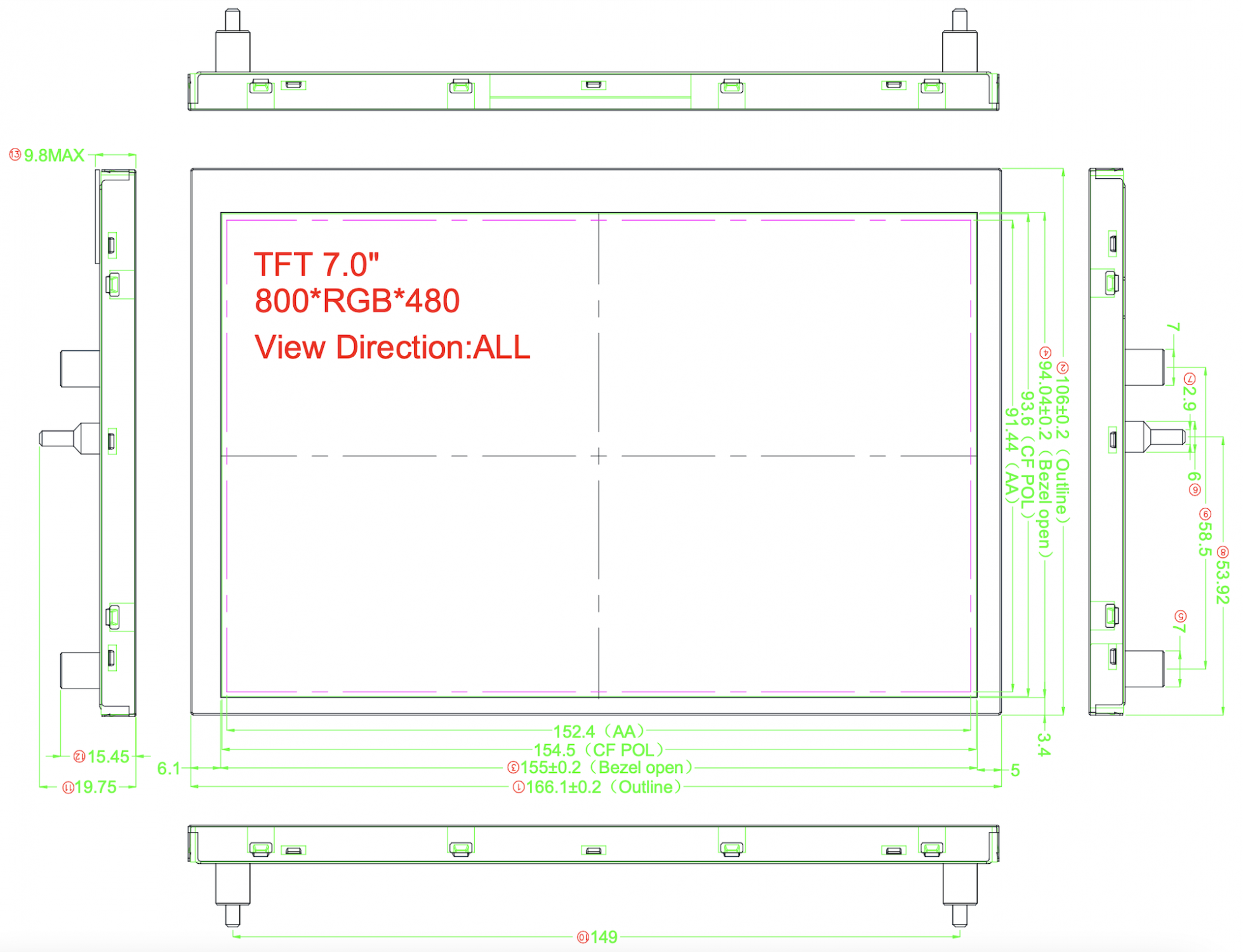

Specification drawing Specification

Product specification

Features :

Wide temperature high brightness TFT display

Add-Ons-CTP /AD Board

We can provide complete accessories, including CTP and backlight board, AD Board and wire sets.

Mechanical characteristics:

Item	Description	Unit
LCD Screen Size	7	inch
Active Area	152.4x91.44	mm
Resolution	800x480	mm
Viewing Angle(θT/θB/θL/θR)	80/80/80/80
Luminance	1000	cd/m²
Interface	RGB
TP module	FN0700D022A
Outline Dimension	166.1x106.0x9.8	mm
