6.86-inch Industrial TFT LCD Resolution 480x1280 Brightness 1000cd/m2

FN0686D004A high brightness

P/N: FN0686D004A

Active Area(mm): 60.192x160.512

Resolution: 480x1280

Viewing Angle: 85/85/85/85

Luminance: 1000

Interface: MIPI

OP ℃: -20~70

ST ℃: -30~80

Specification Download

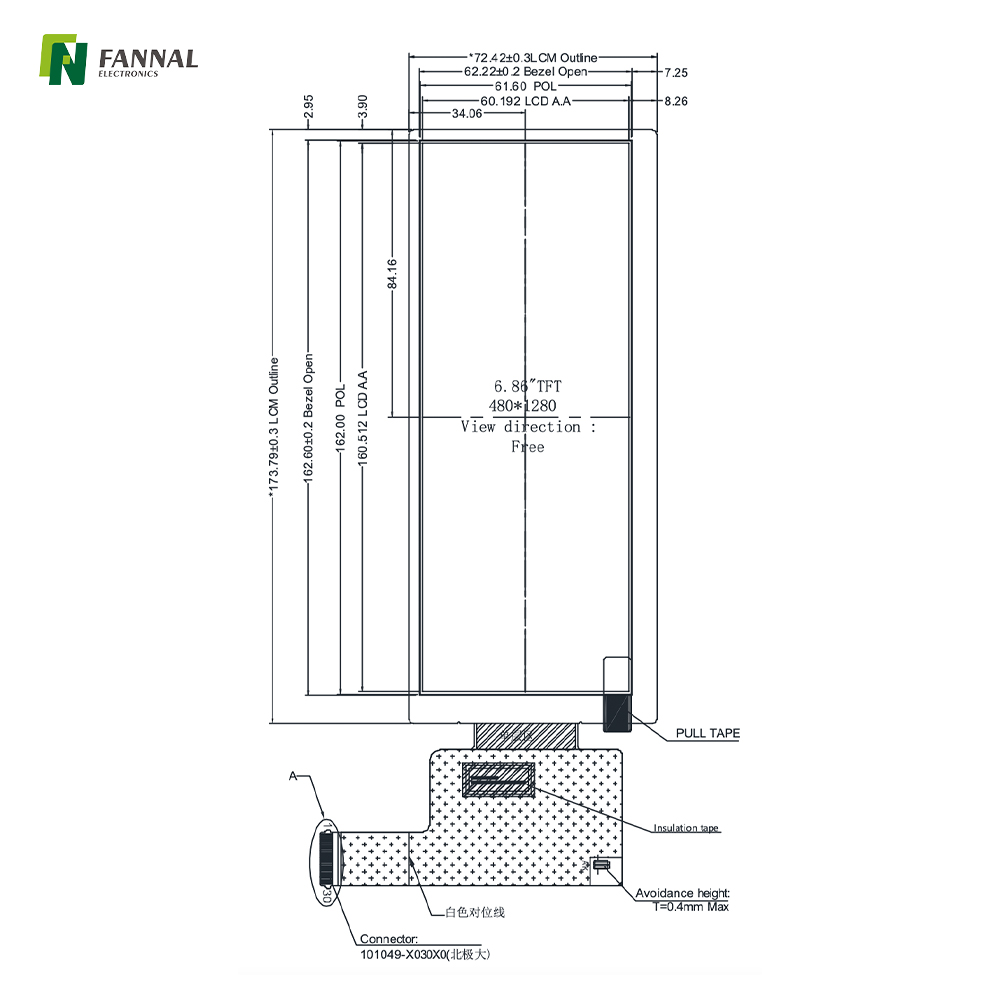

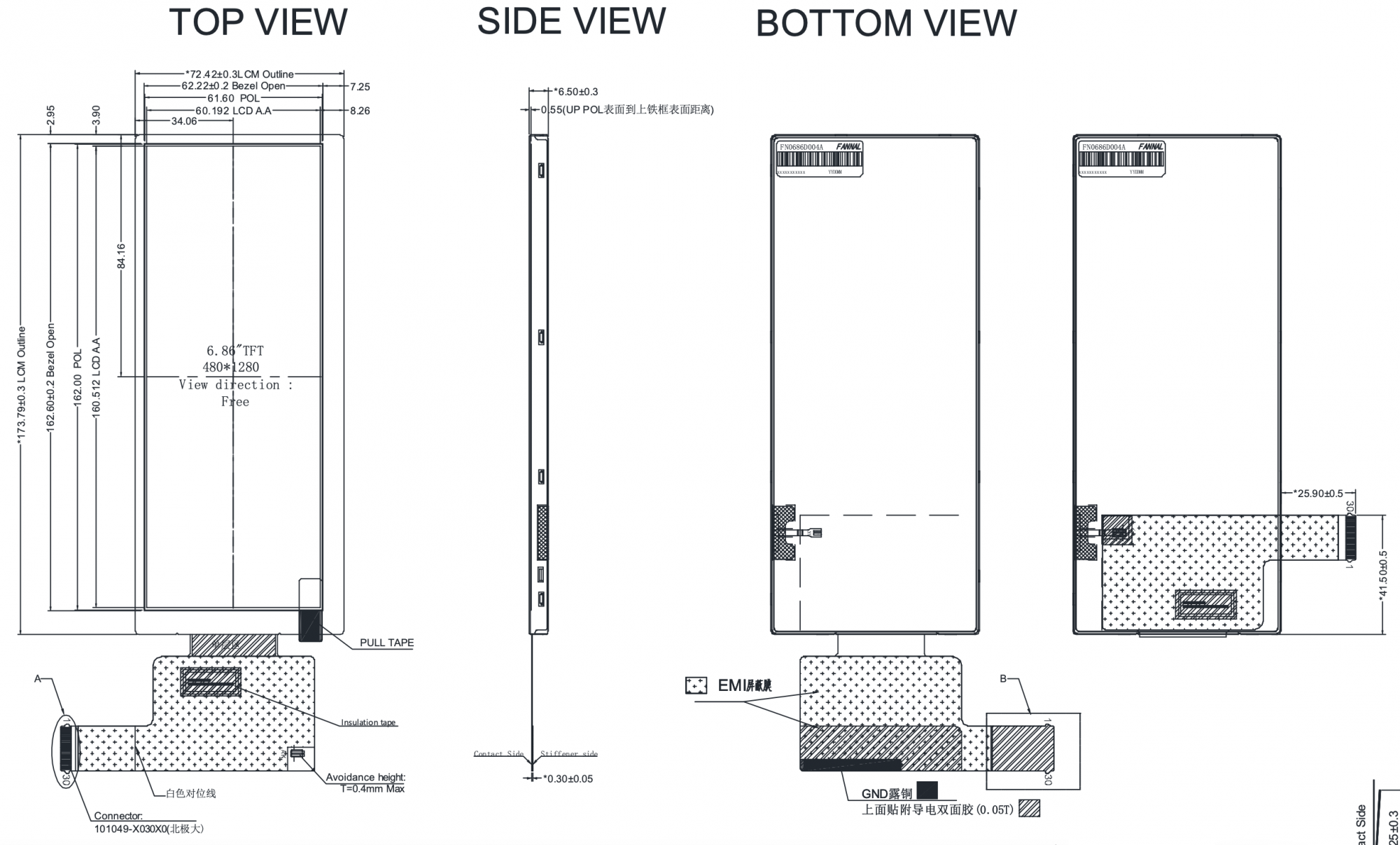

Specification drawing Specification

Product specification

Features :

Sunlight readable TFT display

Add-Ons-CTP /AD Board

We can provide complete accessories, including CTP and backlight board, AD Board and wire sets.

Mechanical characteristics:

Item	Description	Unit
LCD Screen Size	6.86	inch
Active Area	60.192x160.512	mm
Resolution	480x1280	mm
Viewing Angle(θT/θB/θL/θR)	85/85/85/85
Luminance	1000	cd/m²
Interface	MIPI
TP module	FN0686D004A
Outline Dimension	72.42x173.79x6.5	mm
