FN0500D026A high brightness

P/N: FN0500D026A

Active Area(mm): 108.0x64.8

Resolution: 800x480

Viewing Angle: 70/70/50/70

Luminance: 900

Interface: RGB

OP ℃: -20~70

ST ℃: -30~80

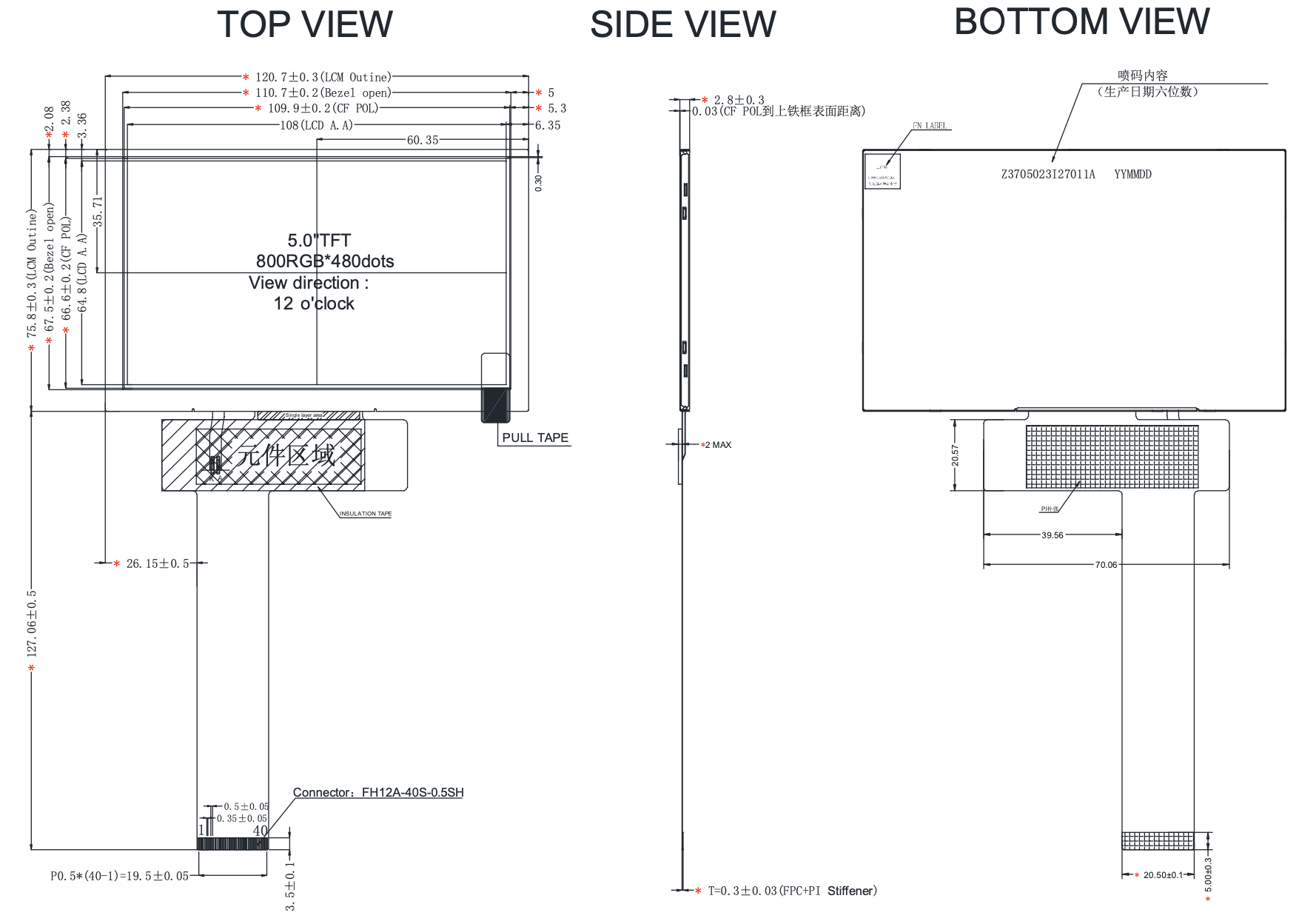

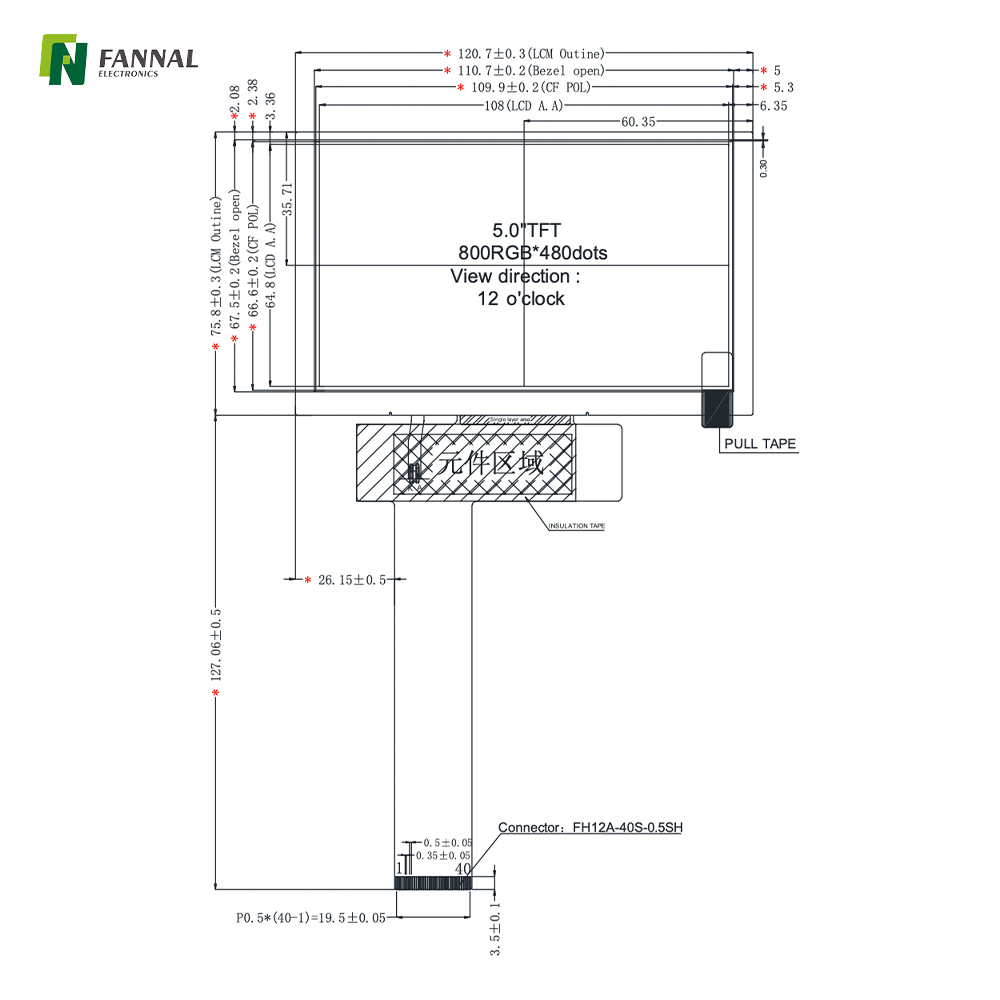

Specification drawing Specification

Product specification
Features :
High brightness TFT display


Add-Ons-CTP /AD Board

We can provide complete accessories, including CTP and backlight board, AD Board and wire sets.

Mechanical characteristics:
Item Description Unit
LCD Screen Size 5 inch
Active Area 108.0x64.8 mm
Resolution 800x480 mm
Viewing Angle(θT/θB/θL/θR) 70/70/50/70
Luminance 900  cd/m²
Interface RGB
TP module FN0500D026A
Outline Dimension 120.7x75.8x2.8  mm
