10.25-inch Industrial TFT LCD Resolution 1920x720 Brightness 750cd/m2 50PINS LVDS -30~85Ope Temp

FN1025D001A wide temp high brightness

P/N: FN1025D001A

Active Area(mm): 243.648x91.368

Resolution: 1920x720

Viewing Angle: 85/85/85/85

Luminance: 750

Interface: LVDS

OP ℃: -30~85

ST ℃: -40~90

Specification Download

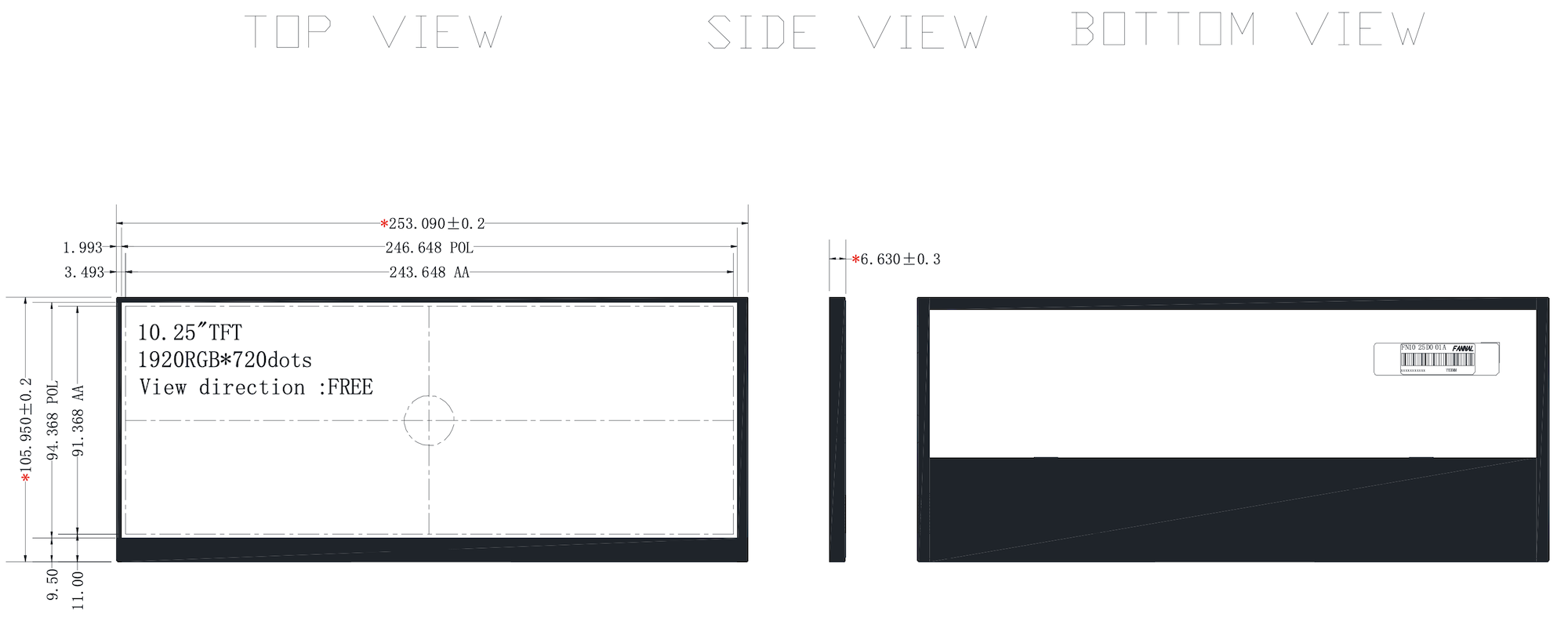

Specification drawing Specification

Product specification

Features :

Sunlight readable TFT display

Add-Ons-CTP /AD Board

We can provide complete accessories, including CTP and backlight board, AD Board and wire sets.

Mechanical characteristics:

Item	Description	Unit
LCD Screen Size	10.25	inch
Active Area	253.09x105.93x6.63	mm
Resolution	1920x720	mm
Viewing Angle(θT/θB/θL/θR)	85/85/85/85
Luminance	750	cd/m²
Interface	LVDS
TP module	FN1025D001A
