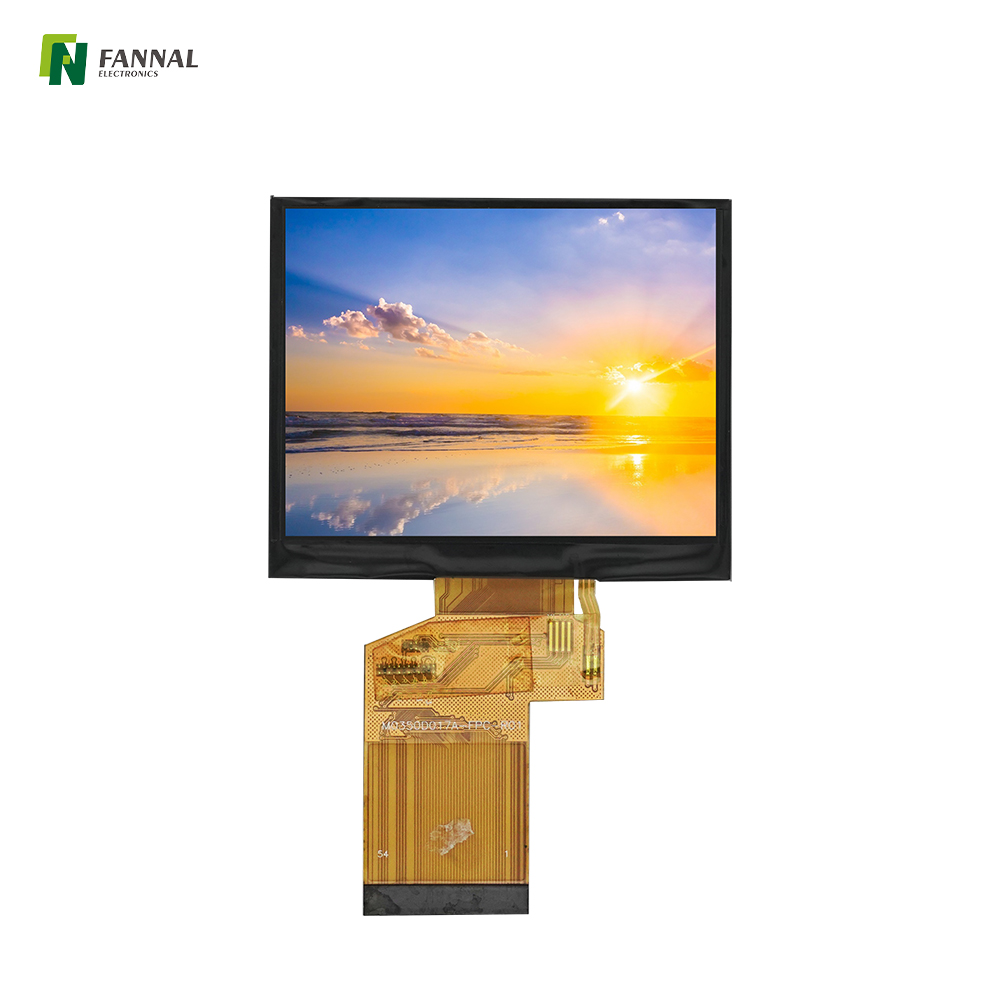

FN0350D017A high brightness

P/N: FN0350D017A

Active Area(mm): 70.08x52.56

Resolution: 320x240

Viewing Angle: 80/80/80/80

Luminance: 1000

Interface: RGB

OP ℃: -20~70

ST ℃: -30~80

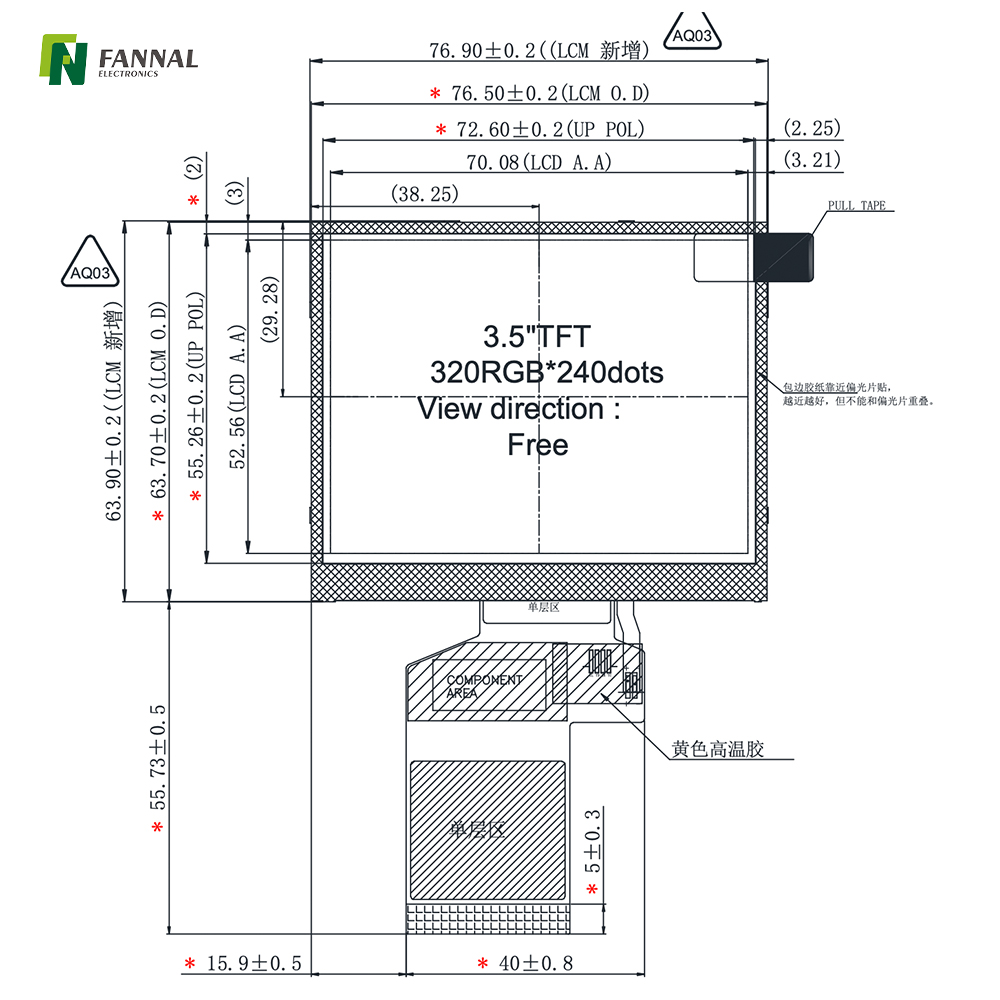

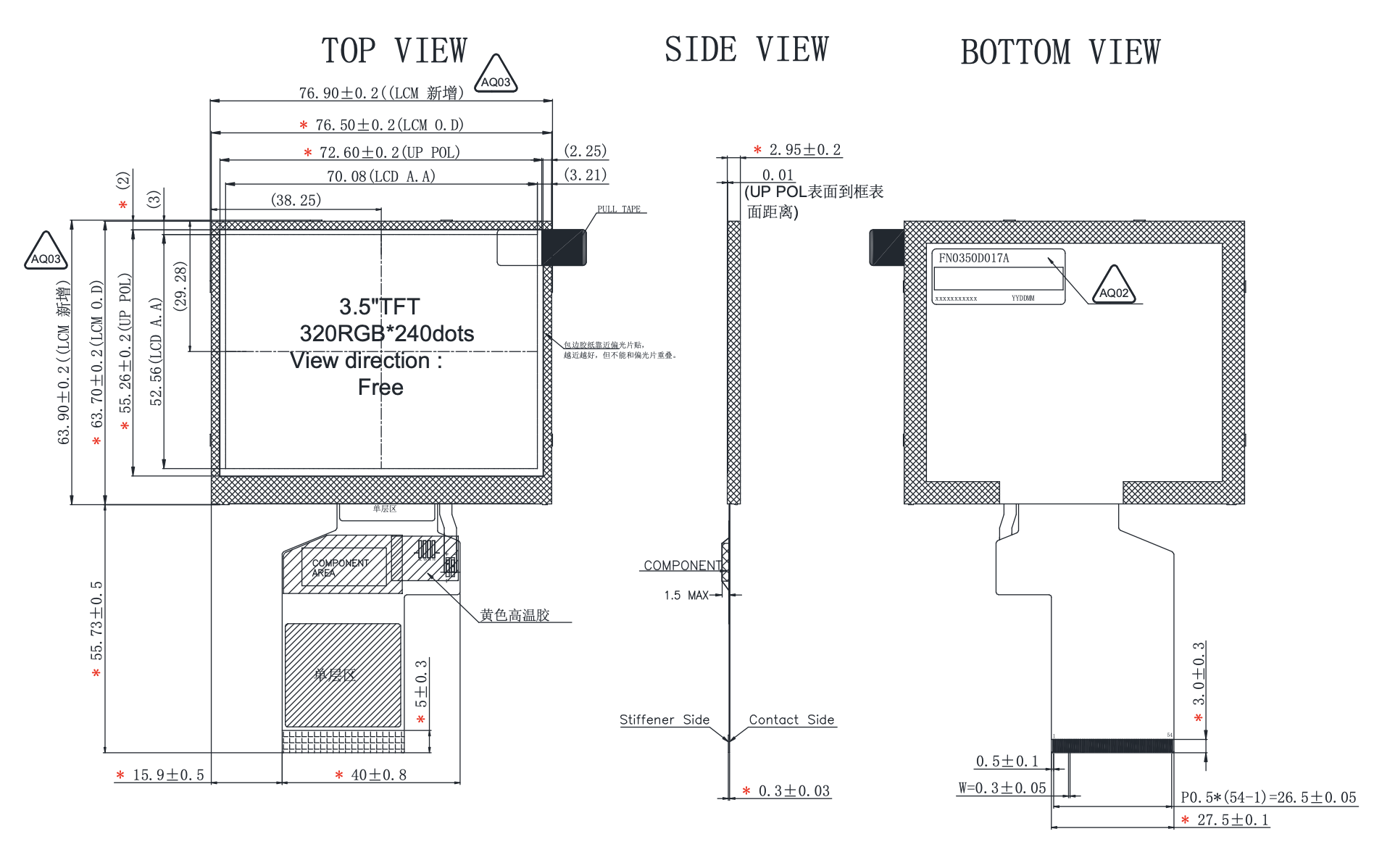

Specification drawing Specification

Product specification
Features :
High brightness TFT display


Add-Ons-CTP /AD Board

We can provide complete accessories, including CTP and backlight board, AD Board and wire sets.
70.08x52.56

Mechanical characteristics:
Item Description Unit
LCD Screen Size 3.5 inch
Active Area 70.08x52.56 mm
Resolution 320x240 mm
Viewing Angle(θT/θB/θL/θR) 80/80/80/80
Luminance 1000  cd/m²
Interface RGB
TP module FN0350D017A
 Outline Dimension 76.5X63.7X2.95  mm
