FN0430D009A high brightness

P/N: FN0430D009A

Active Area(mm): 95.04x53.856

Resolution: 480x272

Viewing Angle: 80/80/80/80

Luminance: 800

Interface: RGB

OP ℃: -20~70

ST ℃: -30~80

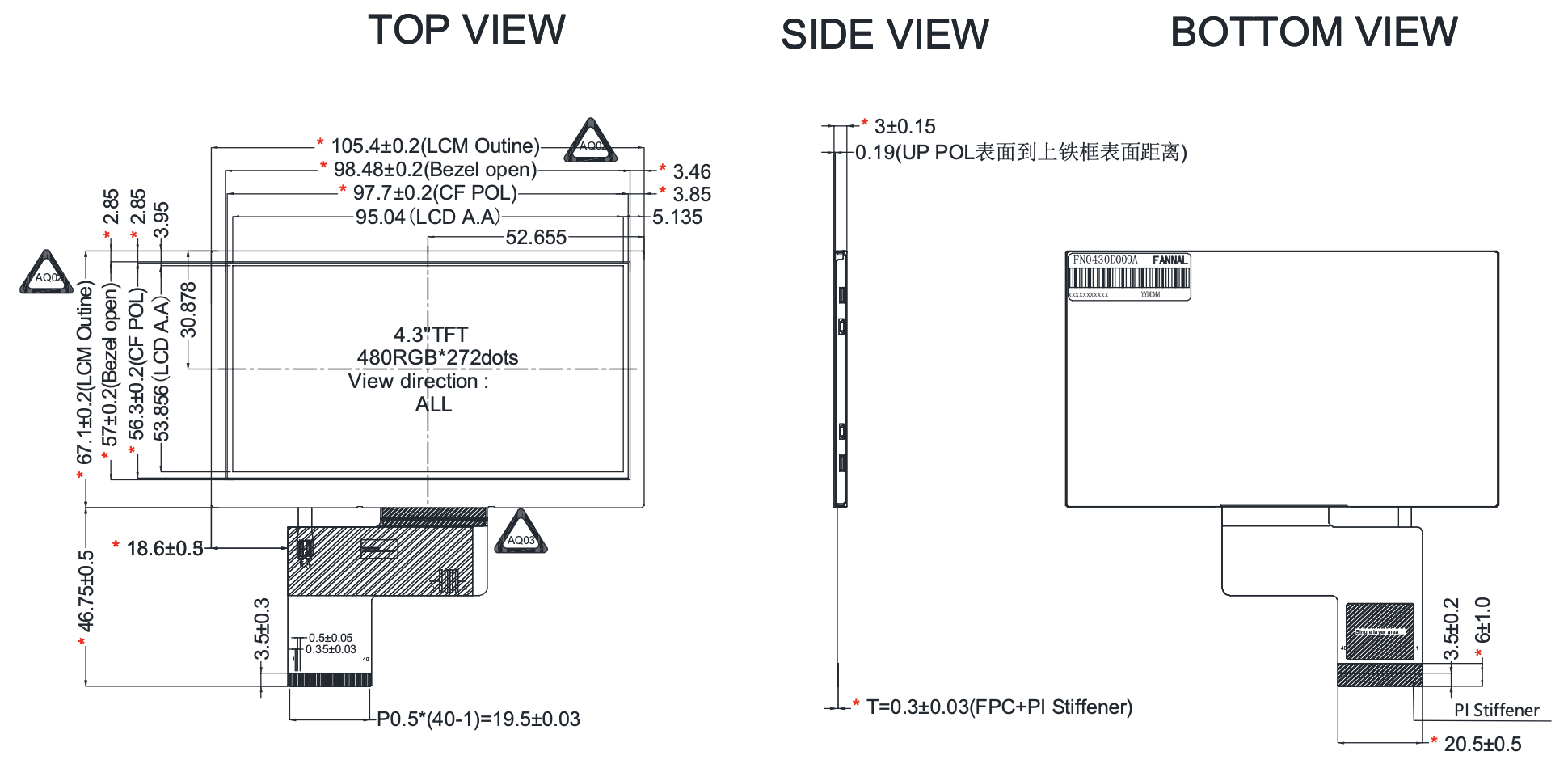

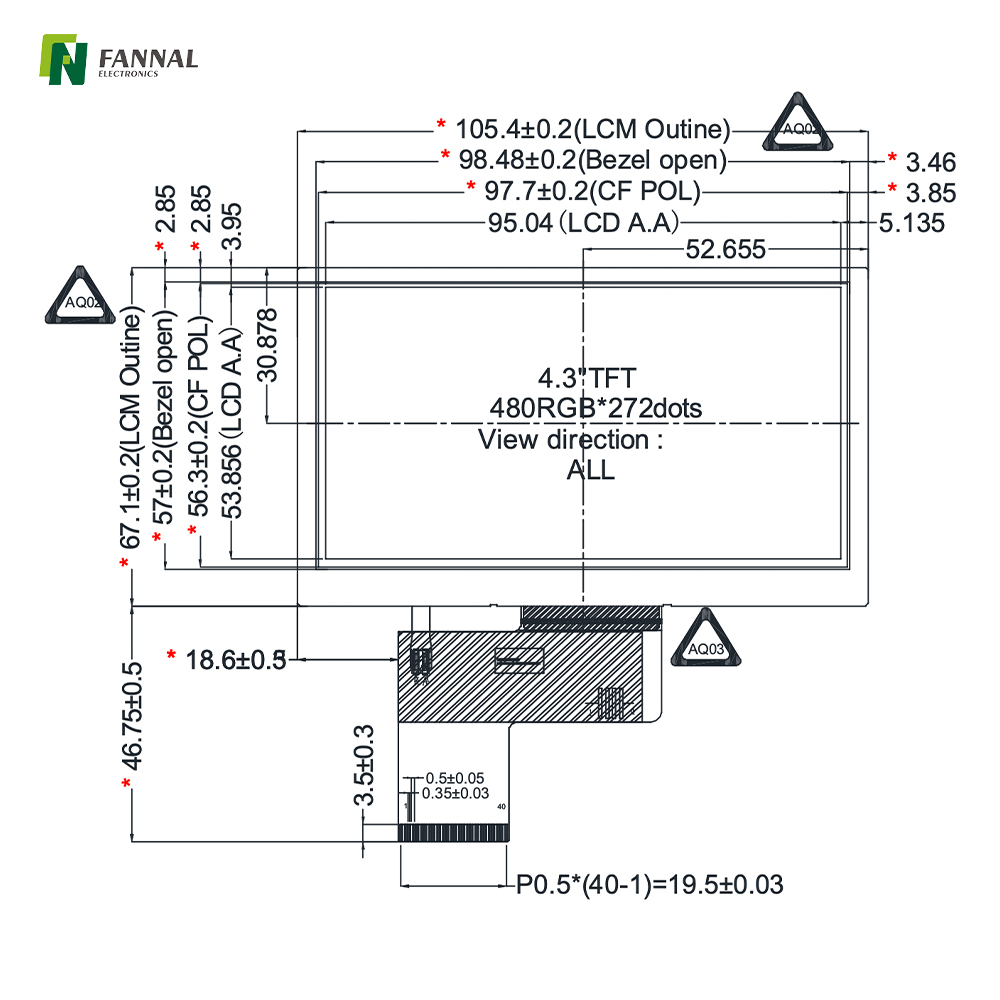

Specification drawing Specification

Product specification
Features :
High brightness TFT display

Add-Ons-CTP /AD Board

We can provide complete accessories, including CTP and backlight board, AD Board and wire sets.

Mechanical characteristics:
Item Description Unit
LCD Screen Size 4.3 inch
Active Area 95.04x53.856 mm
Resolution 480x272 mm
Viewing Angle(θT/θB/θL/θR) 80/80/80/80
Luminance 800  cd/m²
Interface RGB
TP module FN0430D009A
Outline Dimension 105.4x67.1x3.0  mm
