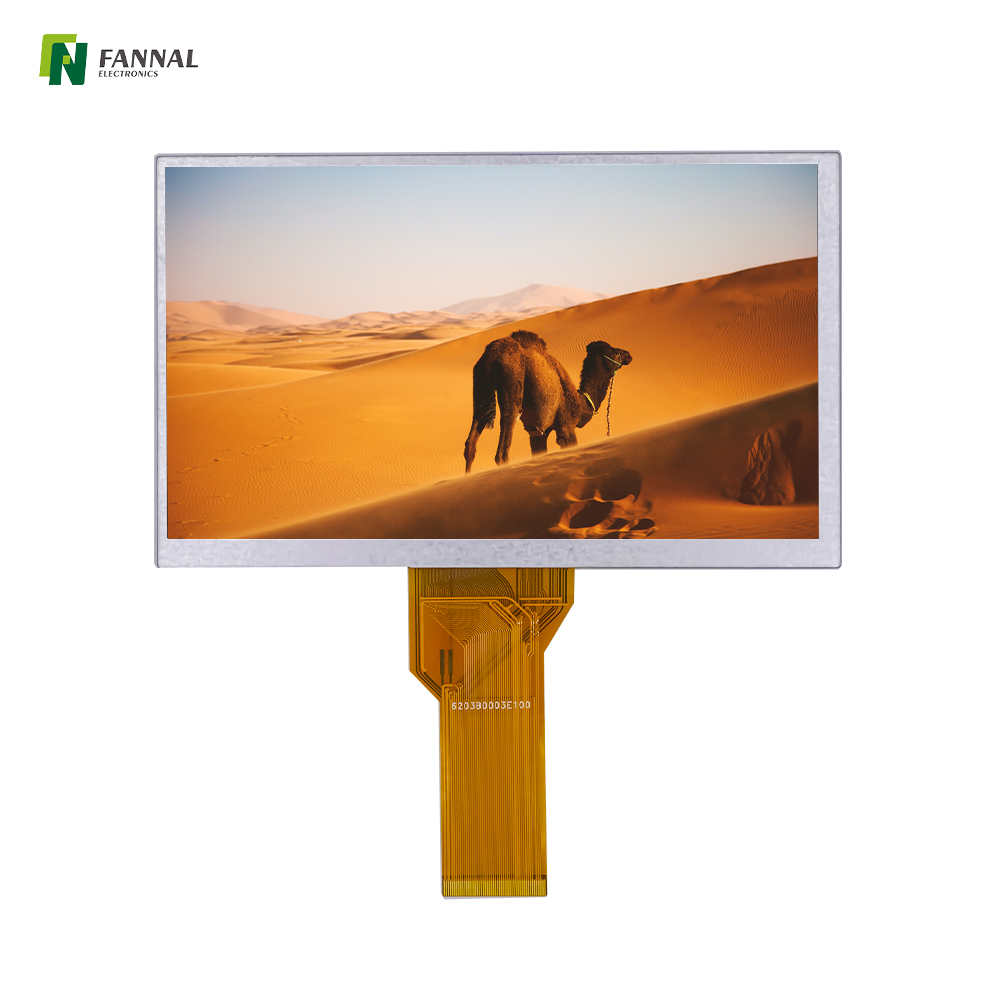

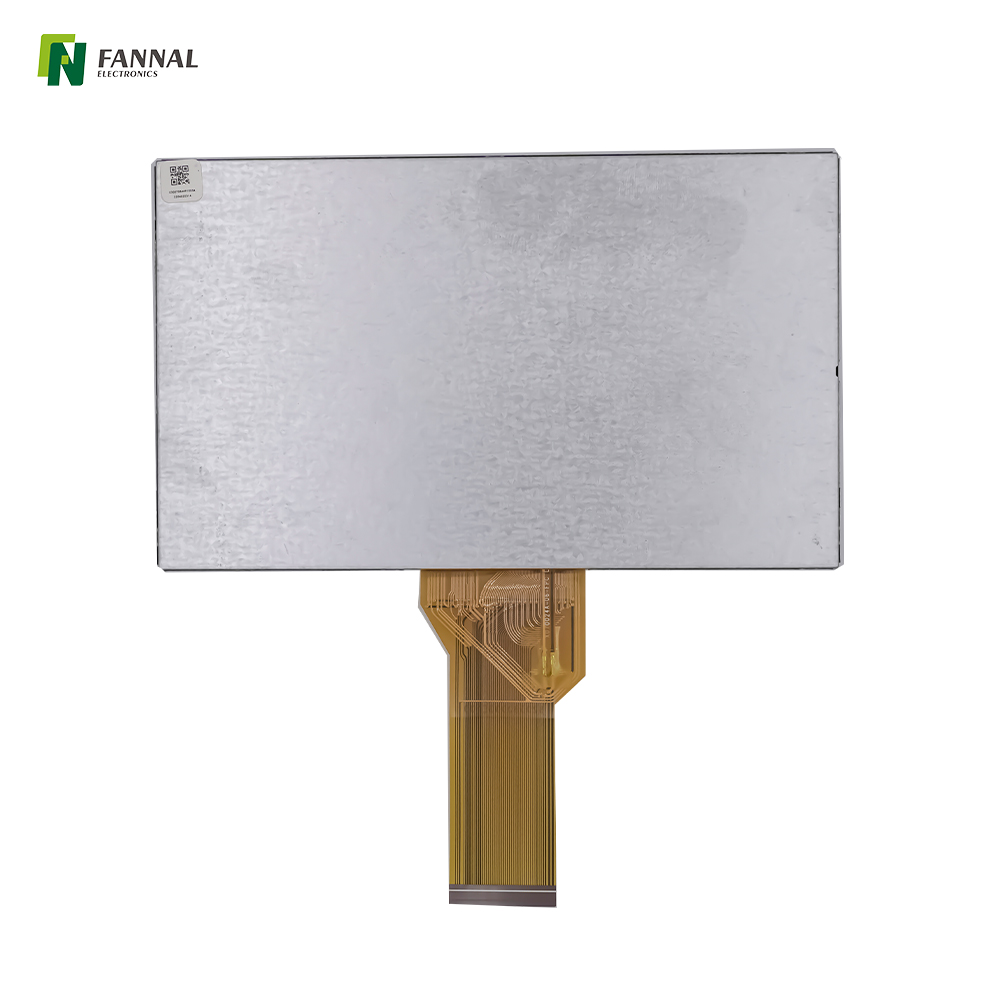

7-inch Industrial TFT LCD, 800x480, High Brightness , 950cd/m2, 50PINS

FN0700D003A high brightness

P/N: FN0700D003A

Active Area(mm): 154.08x85.92

Resolution: 800x480

Viewing Angle: 70/70/50/70

Luminance: 950

Interface: RGB

OP ℃: -20~70

ST ℃: -30~80

Specification Download

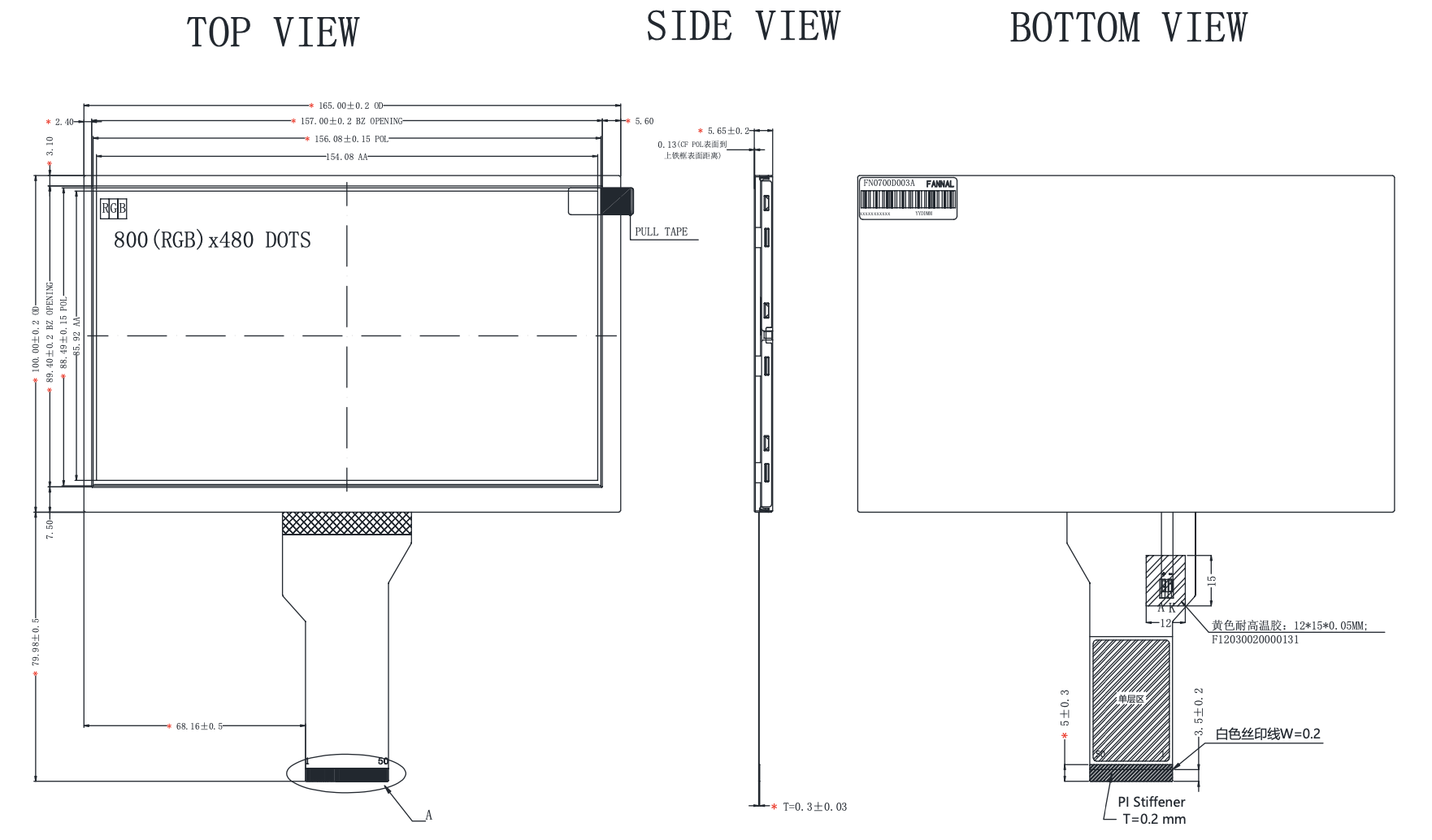

Specification drawing Specification

Product specification

Features :

High brightness TFT display

Add-Ons-CTP /AD Board

We can provide complete accessories, including CTP and backlight board, AD Board and wire sets.

Mechanical characteristics:

Item	Description	Unit
LCD Screen Size	7	inch
Active Area	154.08x85.92	mm
Resolution	800x480	mm
Viewing Angle(θT/θB/θL/θR)	70/70/50/70
Luminance	950	cd/m²
Interface	RGB
TP module	FN0700D003A
Outline Dimension	165.0x100.00x5.65	mm
